12.17 Main gearbox
Pos: 36.47.10.2 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresseBild_Hau ptgetriebe 12130 (2013- 03-28 15:40:03) @ 26\mod_12 45660802021_78.doc x @ 262102 @ @ 1
BP1213025
2
1
3

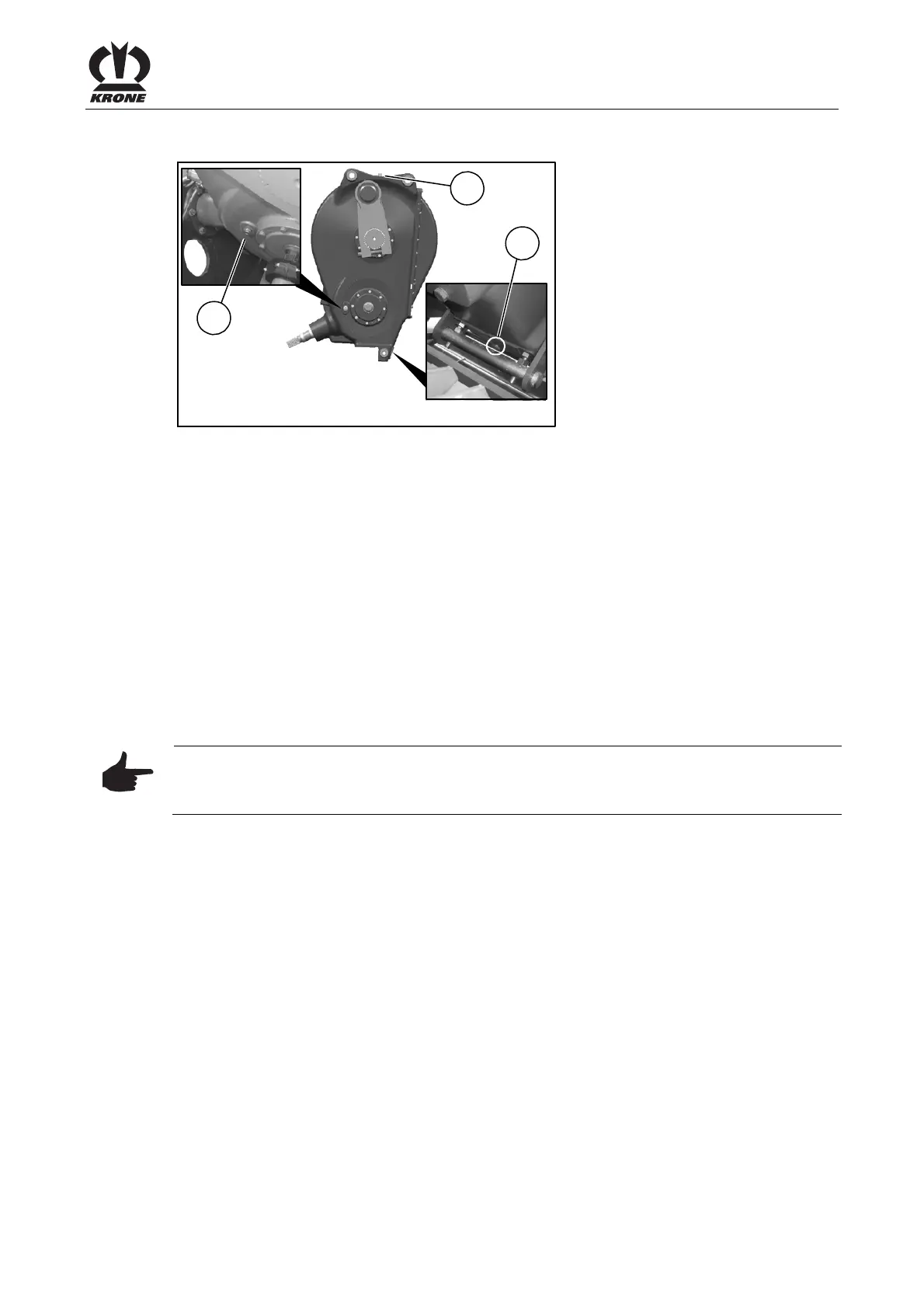

Fig. 188
Pos: 36.47.10.3 /BA/ Wartung/Ölkontrol le_Wechsel/Ölkontr olle_ALTÖlkontr olle Schauglas @ 0\mod_1199 973375100_78.doc x @ 38193 @ @ 1
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Oil level up to inspection glass (1)
• If necessary, top up the oil (SAE 90)
Pos: 36.47.10.4 /BA/ Wartung/Ölkontrol le_Wechsel/Ölwechse l_ALTÖlwechsel Sc hauglas @ 0\mod_1199973854 491_78.docx @ 38215 @ @ 1
Oil change:
• For time intervals, refer to chapter "Oil Level Check and Oil Change Intervals
(Gearboxes)"
• Screw out the oil drain plug (2)
• Collect the used oil in a suitable drip pan
• Screw in the oil drain plug (2)
• Top up the oil (3) (oil level up to inspection glass (1))
Pos: 36.47.10.5 /BA/ Wartung/Ölkontrol le_Wechsel/Ölquali tät /Ölmenge: siehe Ka pitel @ 0\mod_11970078594 86_78.docx @ 15531 @ 22 @ 1
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 36.47.10.6 /BA/ Wartung/Umwelt/ Hinweis Entsorgen / Lagern von Öle und Ölfilter Umwelt @ 32\ mod_1253101375171_78. docx @ 311770 @ @ 1
ENVIRONMENT! - Disposal and storage of used lubricants and oil filters
Effect: Environmental damage
Store or dispose used oil and oil filters according to statutory provisions.
