11.7 Twine brake Fehler! Textmarke nicht definiert.

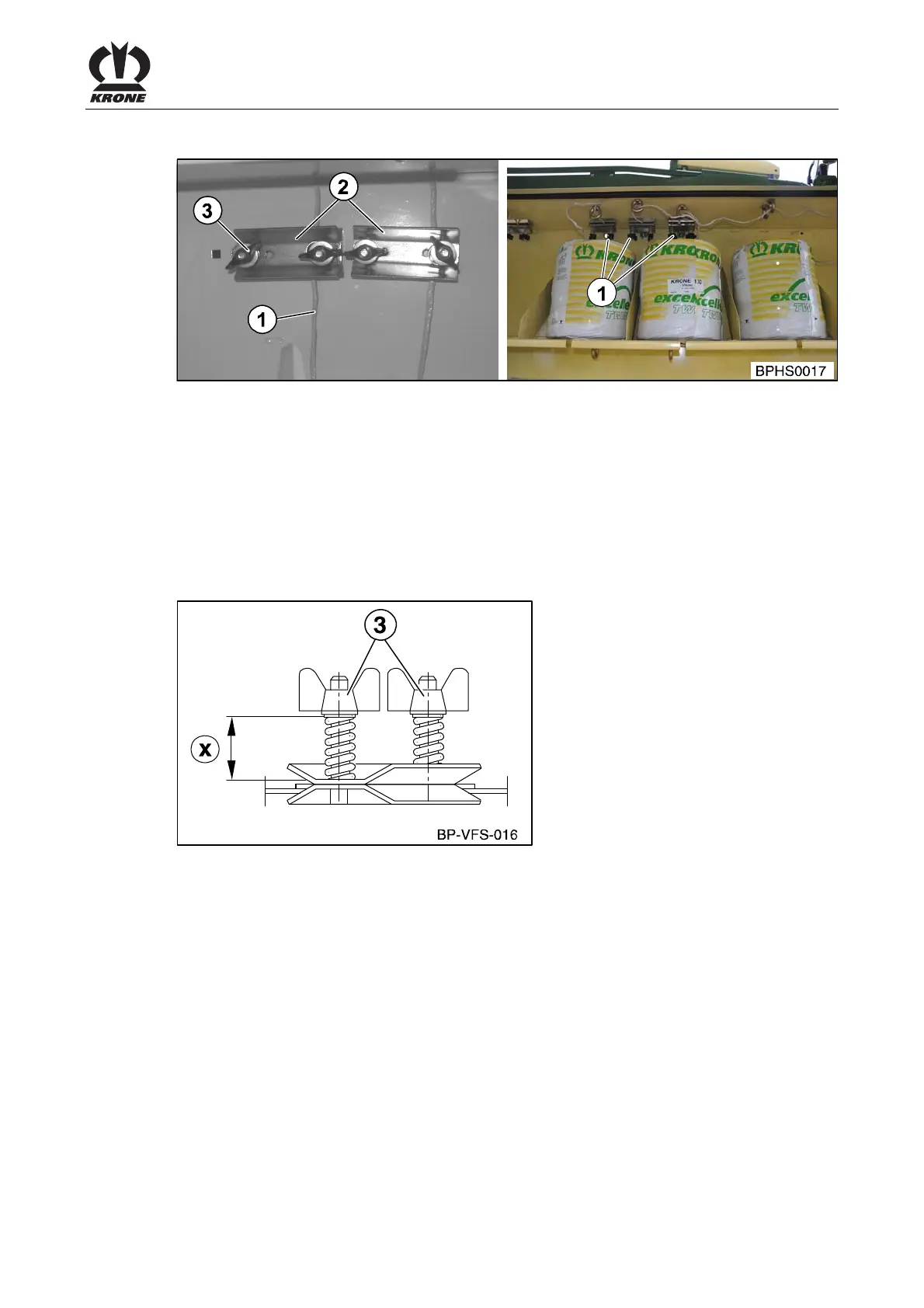

Fig. 147
Single knotter Double Knotter
The twine brakes (2) are located in the twine box. The tying twine (1) is held under tension by
the adjusting screws (3). Different types of tying twine may have different friction properties. The
drawing tension of the tying strand must be checked when you start using a different type of
tying twine. It should always be set to a high enough level so that the twine tension springs do
not interfere with the swing angle. The dimension "X" is based on the tying twine selected and
must be determined in each individual case by testing in the twine strand. A pretension of the
twine strand that is too high may cause knotter errors and place too heavy a load on the
components involved.
Pos: 34.62 /BA/Einste llungen/Großpackenpr esse/Garnbre mseGarnbremse einste llen Bild (2013-10-18 10: 30:43) @ 24\mod_12409947 30258_78.docx @ 241576 @ 3 @ 1
Fig. 148
Pos: 34.63 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Doppelkno ter @ 20\mod_123901003 8066_78.docx @ 226971 @ 3 @ 1
Double knotter
Pos: 34.64 /BA/Einste llungen/Großpackenpr esse/Garnbre mse/Ausführung Doppe lknoter Garnbremsen Gar n straffen @ 24\mod_1240994 624665_78.docx @ 241525 @ 33 @ 1
In the double knotter design, the twine brakes (1) in the twine box serve simply to keep the
twine tight.
Pos: 34.65 /BA/Einste llungen/Großpackenpr esse/Garnbre mse/Voreinstellung X = 30 – 35 mm @ 24\mod_1240994506555_ 78.docx @ 241501 @ @ 1
Pre-setting X = 30 – 35 mm
Pos: 34.66 /BA/Einste llungen/Großpackenpr esse/Garnbre mse/Garnspannung am ober en Garnstrang (Doppelkn oter) @ 24\mod_1240995 388836_78.docx @ 241628 @ 2 @ 1
