11.11.1 Presetting threaded rod / stop for the feeler rocker
Pos: 34.81.5 /BA/E instellungen/Großpac kenpresse/Variab les Füllsystem VFS/B iG PACK 4x4/Voreinstel lung Gewindestange An schlag Bild 4x4 @ 107\mod_13 34225610521_78.doc x @ 965026 @ @ 1

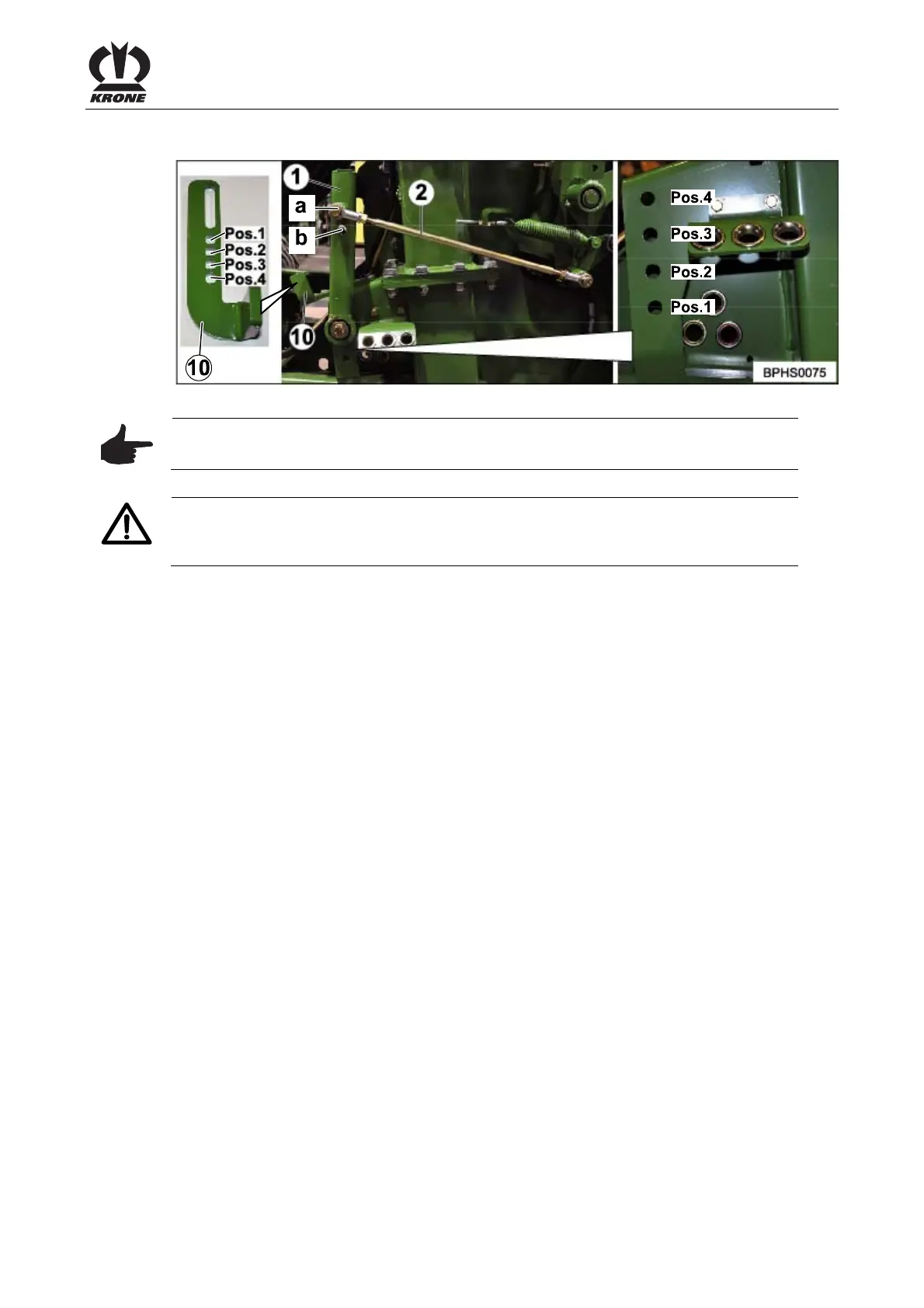

Fig. 166
Pos: 34.81.6 /BA/E instellungen/Großpac kenpresse/Variab les Füllsystem VFS/B iG PACK 4x4/Voreinstel lung Gewindestange An schlag Text @ 107\mod_13342 28023918_78.doc x @ 965054 @ @ 1
Note
The feeler rocker (1) has been installed in position 3 at the factory.
CAUTION! Damage to the machine
Never move the threaded rod (2) into the bore (b), otherwise the machine will be
damaged.
The VFS system must be adjusted if
• the bale channel chamber does not fill up sufficiently (the filling of the bale upwards must
be improved)
• the overload coupling of the packer responds too frequently
Procedure:
• Move VFS system to zero position and check settings (see Settings section “Zero
position”)
• Check and, if required, adjust triggering sensitivity (see Settings section “Adjusting
triggering sensitivity”)
