Krone Big Pack 4x4 - Drive chains

Maintenance
246
Pos: 36.25 /Übersc hriften/Überschri ften 2/A-E/Antriebske tten @ 27\mod_12463552 34599_78.docx @ 267399 @ 3 @ 1
12.7 Drive chains
Pos: 36.26 /BA/W artung/Antriebsketten ( Ketten)/Antriebske tten allgemein @ 107\ mod_1334563877892_7 8.docx @ 966387 @ 3 @ 1
• Regularly check the pretension of the drive chains (especially on new drive chains)
• Shorten chains which have become too long by taking out a chain link
Pos: 36.27 /BA/W artung/Antriebsketten ( Ketten)/Förder walze (I) bei Ausführung ohne Sc hneidwerk @ 107\mod_1334 579131627_78.doc x @ 967455 @ @ 1
12.7.1 Conveyor roller (I)
a
I

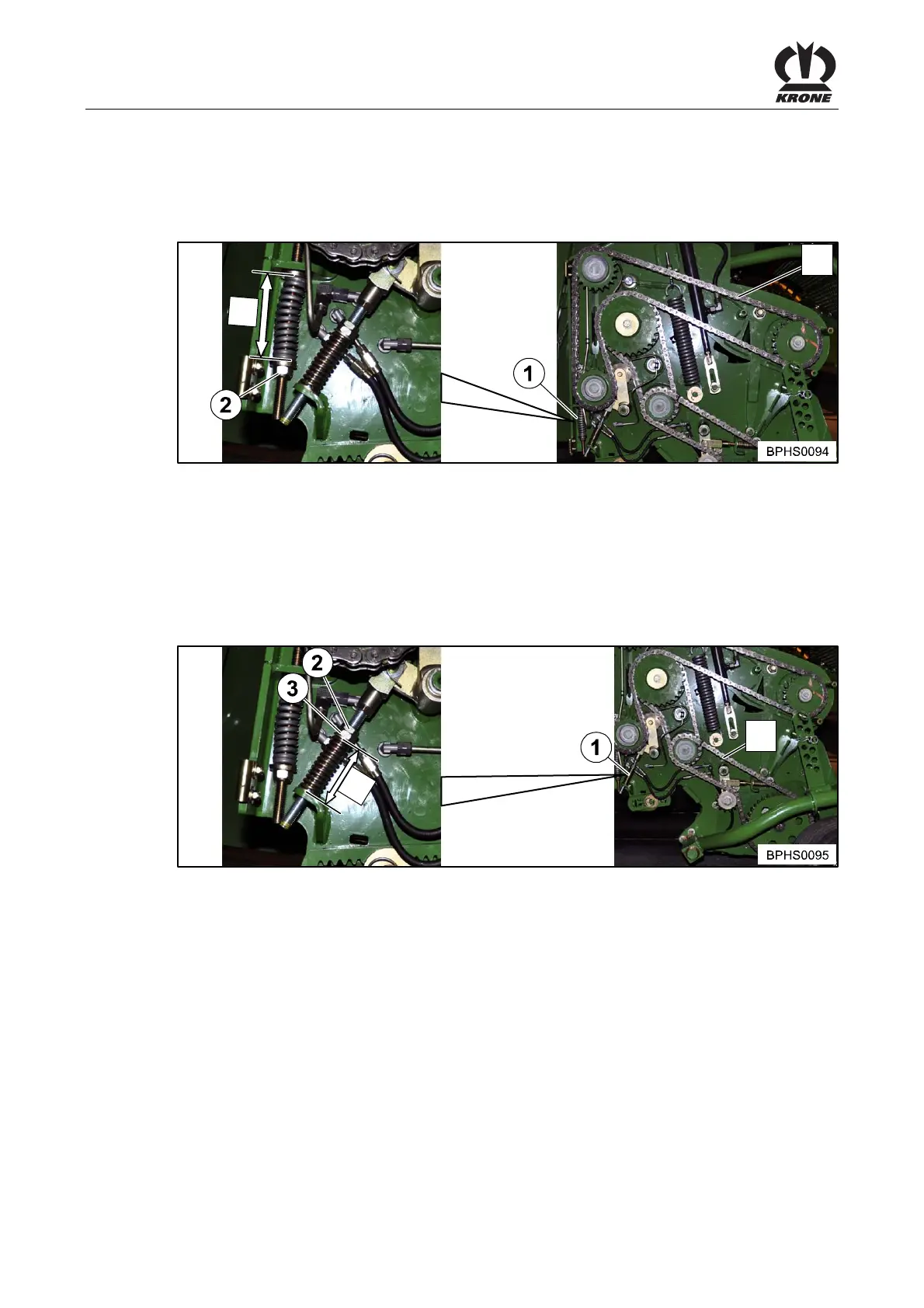

Fig. 179
Right-hand side of the machine
At the factory the spring has been preset (1) to a = 100 mm.
• Open the protective cover on the right side of the machine
• By tightening the nut (2), increase the tension of the spring (1)
• Close protective cover
Pos: 36.28 /BA/W artung/Antriebsketten ( Ketten)/Pick- up Antrieb (II) bei Ausf ührung ohne Schneidwerk @ 107\mod_ 1334579399032_78. docx @ 967483 @ 2 @ 1
12.7.2 Pick-up drive (II)
a
II
Fig. 180
Right-hand side of the machine
At the factory the spring has been preset (1) to a = 60 mm.
• Open the protective cover on the right side of the machine
• Unscrew the counter nut (2)
• By tightening the nut (3), increase the tension of the spring (1)
• Secure the nut (3) with the counter nut (2)
• Close protective cover
