Maintenance
253
Pos: 36.43.1 /Überschr iften/Überschr iften 2/A-E/Anpasse n des Hydrauliksyste ms @ 1\mod_1201241743588_7 8.docx @ 52013 @ 2 @ 1
12.11 Adjusting the hydraulic system
Pos: 36.43.2 /BA/W artung/Load-Sensing/ Großpackenpresse/ Bild Load-Sensing Ansc hluss HS Baureihe @ 64\mod_1 300278753983_78.d ocx @ 582789 @ 2 @ 1

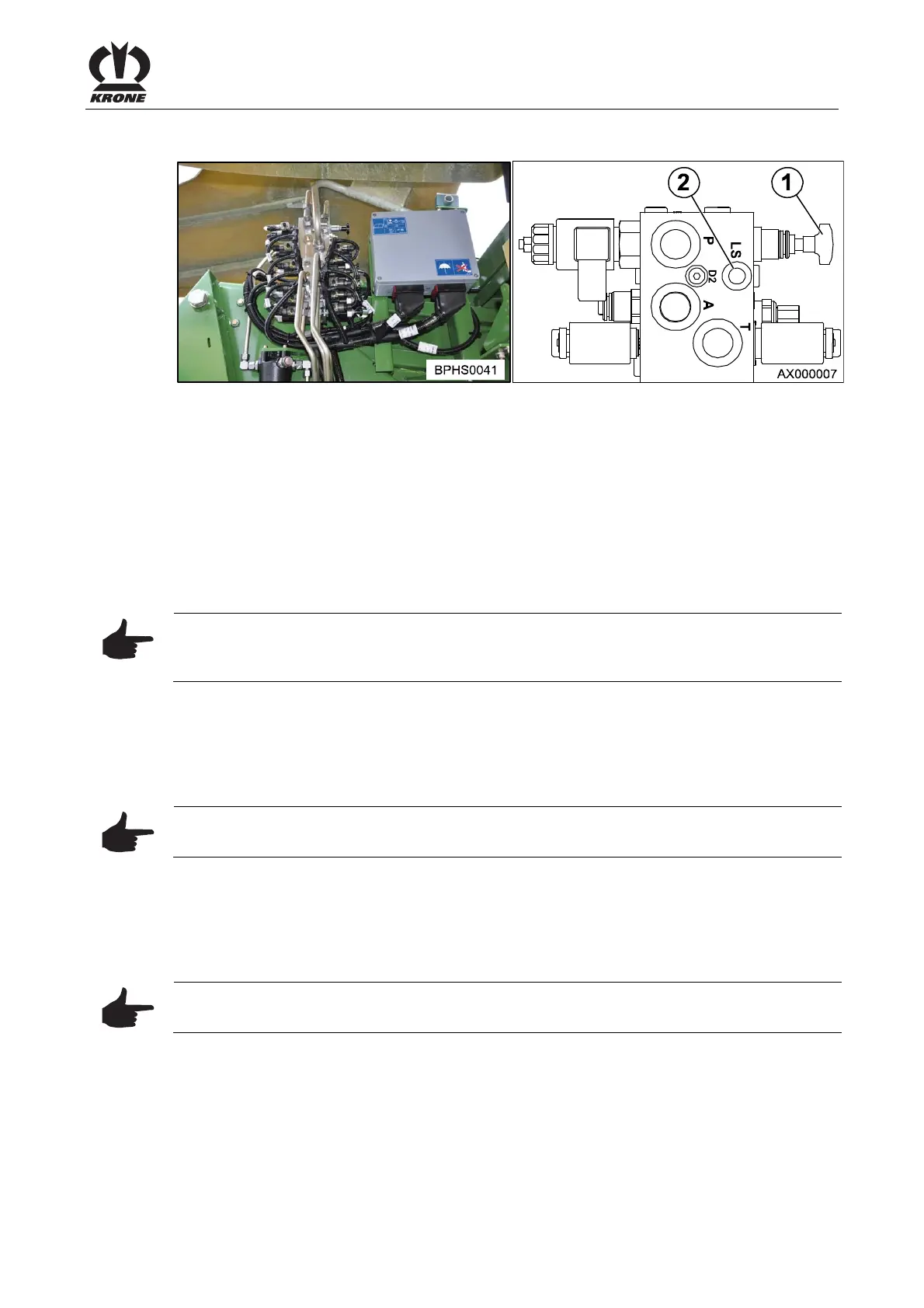

Fig.185
Pos: 36.43.3 /BA/W artung/Load-Sensing/ Großpackenpresse/ Load-Sensing-Ansch luss BigPack @ 24\mod_1241 604498659_78.doc x @ 246628 @ @ 1
The Comfort hydraulic system is load-sensing-capable.
The oil supply comes through the Power-Beyond system of the tractor hydraulics for use of the
load-sensing system (further information can be obtained from the operating instructions
provided by the manufacturer of the tractor).
Pos: 36.43.4 /BA/W artung/Load-Sensing/ Großpackenpresse/ Anpassen des Hydrauliksy stems BiG PAck @ 17\mod_1 236336508823_78.d ocx @ 205078 @ 3 @ 1
The comfort hydraulic system of the machine must be adjusted on the tractor. It is designed for
continuous circulation. The adjustment is made by adjusting the hydraulic system screw on the
control valve block of the machine. The control valve block is located at the front left under the
side hood next to the electronics box.
Note
The adjustment depends on the hydraulic system of the tractor and must be made while there
is no pressure in the machine!
Pos: 36.43.5 /BA/W artung/Load-Sensing/Sy stemschraube (1) ganz herausdrehen @ 63\mod_1 299739012796_78.doc x @ 575371 @ @ 1
Unscrew the system screw (1) as far as it will go for:
• Tractor with an open (constant-current) hydraulic system (for additional information,
please refer to the tractor manufacturer's operating instructions)
• Tractors with LS pump and non-activated load-sensing system
Pos: 36.43.6 /BA/W artung/Load-Sensing/ Hinweis Einstellung i st vom Werk aus gegeben @ 63\mod_ 1299738968068_78. docx @ 575344 @ @ 1
Note
This adjustment is set when the unit leaves the factory.
Pos: 36.43.7 /BA/W artung/Load-Sensing/Sy stemschraube (1) ganz hereindrehen @ 63\mod_129 9738923981_78.doc x @ 575317 @ 2 @ 1
Screw the system screw (1) as far as it will go for:
• Tractors with closed (constant pressure or load sensing) Hydraulic system (For more
information, please refer to the tractor manufacturer's operating instructions)
• Tractors with LS pump and message line that is connected
Pos: 36.43.8 /BA/W artung/Load-Sensing/ Hinweis Anschluß der Mel deleitung @ 63\mod_12997 38872411_78.doc x @ 575290 @ 2 @ 1
Note
The connection (2) for the message line is under the hydraulic system screw.
