Safety
48
Pos: 16.52 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Medium - Ele ktronik @ 61\mod_1299223 169539_78.doc x @ 570971 @ @ 1
Medium Version Electronics
Pos: 16.53 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Hydr aulischer Stützfuß Mediu m Elektronik Bild HS Baurei he @ 92\mod_132687 0734408_78.docx @ 782789 @ @ 1
BPHS0012
2
BPHS0014_1

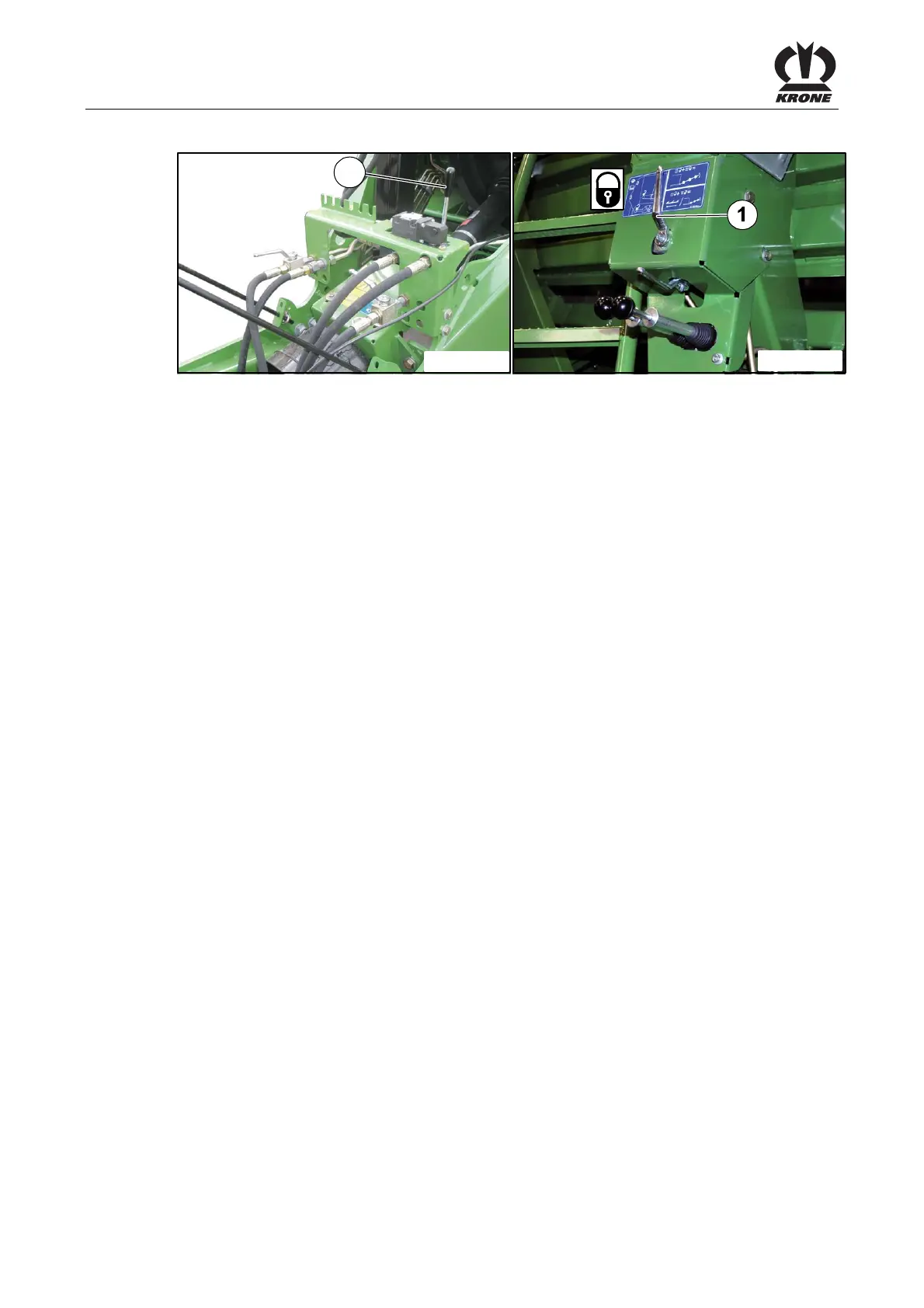

Fig.21
Pos: 16.54 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Hydr aulischer Stützfuß bei Medium- elektronik al lgemein HS Baureihe @ 62\mod _1299482859161_78.doc x @ 571747 @ 1 @ 1
As an option, the machine can be parked with a hydraulic parking jack. In order to deploy the
hydraulic parking jack the shut-off valve at the rear of the machine must first be closed.
Pos: 16.55 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Hydr aulischer Stützfuß ein- ausfahren HS Baureihe Me dium-Elektroni k @ 62\mod_1299483213440_7 8.docx @ 571774 @ @ 1
Deploying / Retracting the parking jack:
• Shut-off valve (1) must be closed.
• Apply pressure to the hydraulic block (hydraulic line (red 4)).
• Using the lever (2), extend the parking jack until it is resting firmly on the ground.
• Use the lever (2) to retract the parking jack.
