Kurzweil PC3K Series - Alt Input for Algorithms (Cascade Mode)

Program Mode
Algorithm Basics
6-17
Alt Input for Algorithms (Cascade Mode)
CascademodeisaparticularlypowerfulfeatureofthePC3Kthatallowsyoutocreateunique

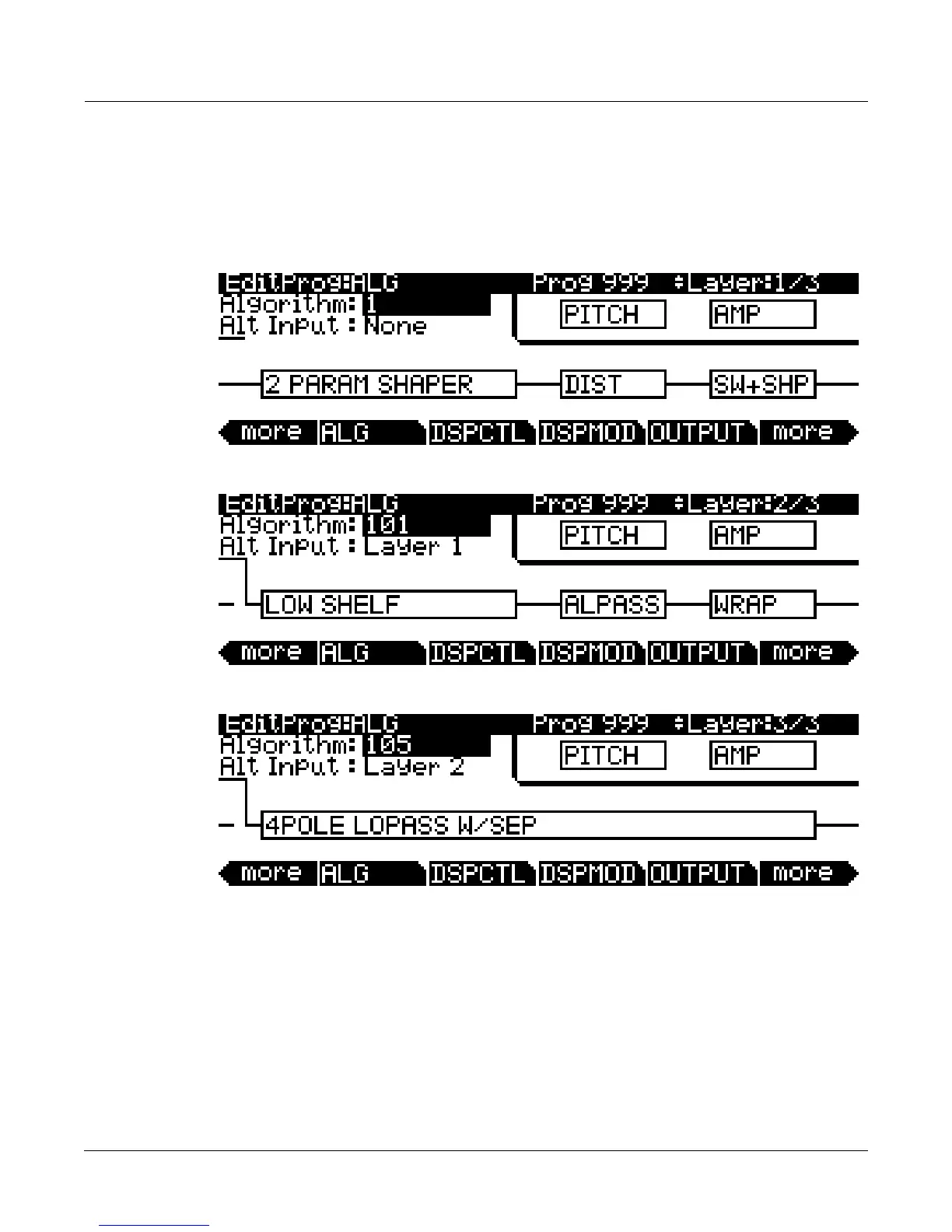

algorithmsofpreviouslyunattainablelevelsofcomp lexity.Thefollow ingthreefiguresshowthe
signalpathofaprogramconfiguredusingthePC3K’snewCascademode:
OntheALG(Algorithm)pageofeverylayer,theAlt
Inputparameterletsyouselectanyother
layertogothroughthecurrentlayer’sDSP.Youcansetitupsothatlayer1goesintolayer2into
3(asshownabove).Ifyouturndownthevolumeonlayers1and2,thenyouarehearingtrue
cascading—it’slike
abigchainwitheachalgorithmfeedingintothenext,andwhatyouhearis
layer3’soutput.Youcanalsohavethevolumesofallthreelayersturnedup,whichwillmixthe
signalofallthreelayers.Youcould,inthesameprogram,alsodecidetorunlayer
4into5into6
into13into25ifyouwanted.Anyofthe32layerscangointoanyotherlayer.
