III. Maintenance
i. Wheel alignment adjustment
1. Front wheel extroversion adjustment

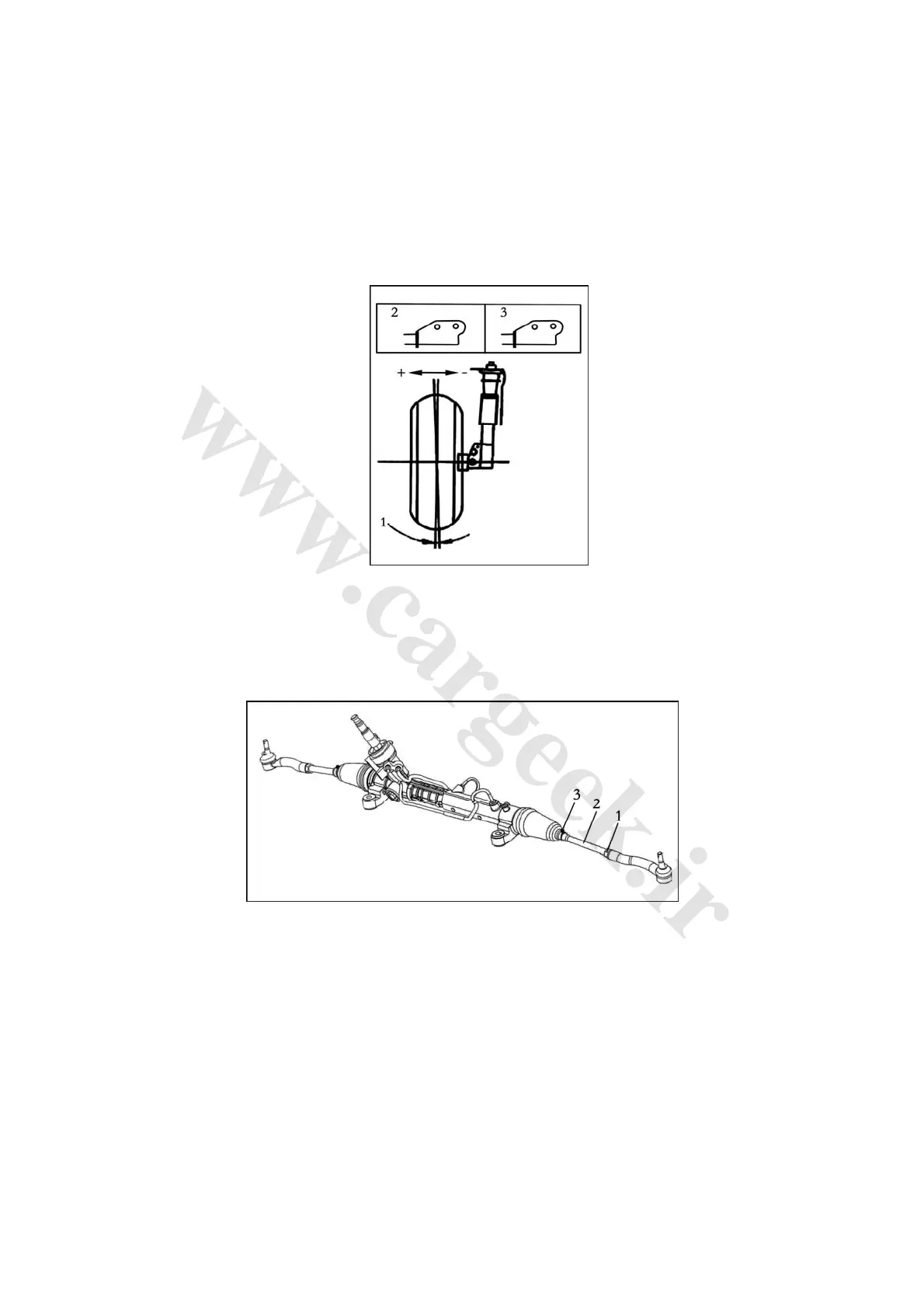

The front wheel extroversion is adjusted as shown in Fig. 2-7. Raise the vehicle, and dismantle the
support from the vehicle. Fix the support on the bench clamp and gouge holes on the side panel.
The extroversion can be adjusted by the bolt hole between the file support and steering knuckle.
Fig. 2-7
1. Camber angle 2. File upper bolt hole 3. File lower bolt hole
2. Front wheel toe-in adjustment, Fig. 2-8.
Fig. 2-8
1. Locking hexagon nut 2. Steering tie rod shaft 3. Seal clamp
Details as below:
(1) Dismantle the small boot clamp on the steering stabilizer bar.
(2) Adjust the steering wheel to the front center position.
(3) As shown in Fig. 2-8, release the hexagon bolt, and revolve the steering stabilizer bar for a
proper toe-in angle.
(4) Confirm that each steering stabilizer bar revolves for the same turns.
(5) Tighten the locking nut.
(6) Install the boot clamp.
