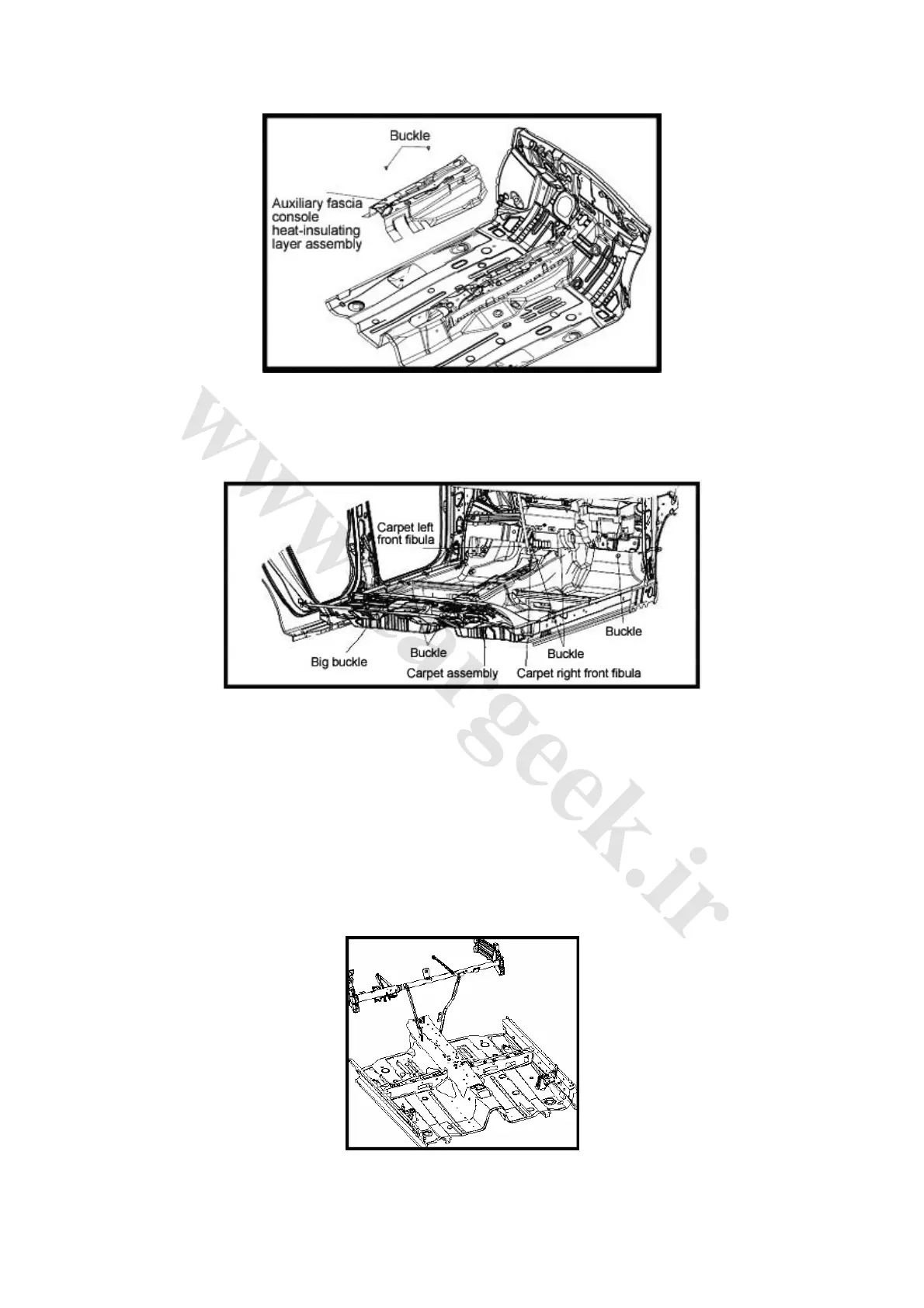

Fig. 7-32
VIII. Carpet
Installation of the carpet, as shown in Fig. 7-33:
Fig. 7-33
a. Clean the surface of the floor.
b. Put the carpet in, stretch out the inner control handle first. Glue the front right fibula of the carpet
first and the left one second.
c. Install the buckles.
d. Install at the two square holes at rear side of the carpet.
IX. Fascia console frame (Fig. 7-34, Fig. 7-35)
Fig. 7-34
