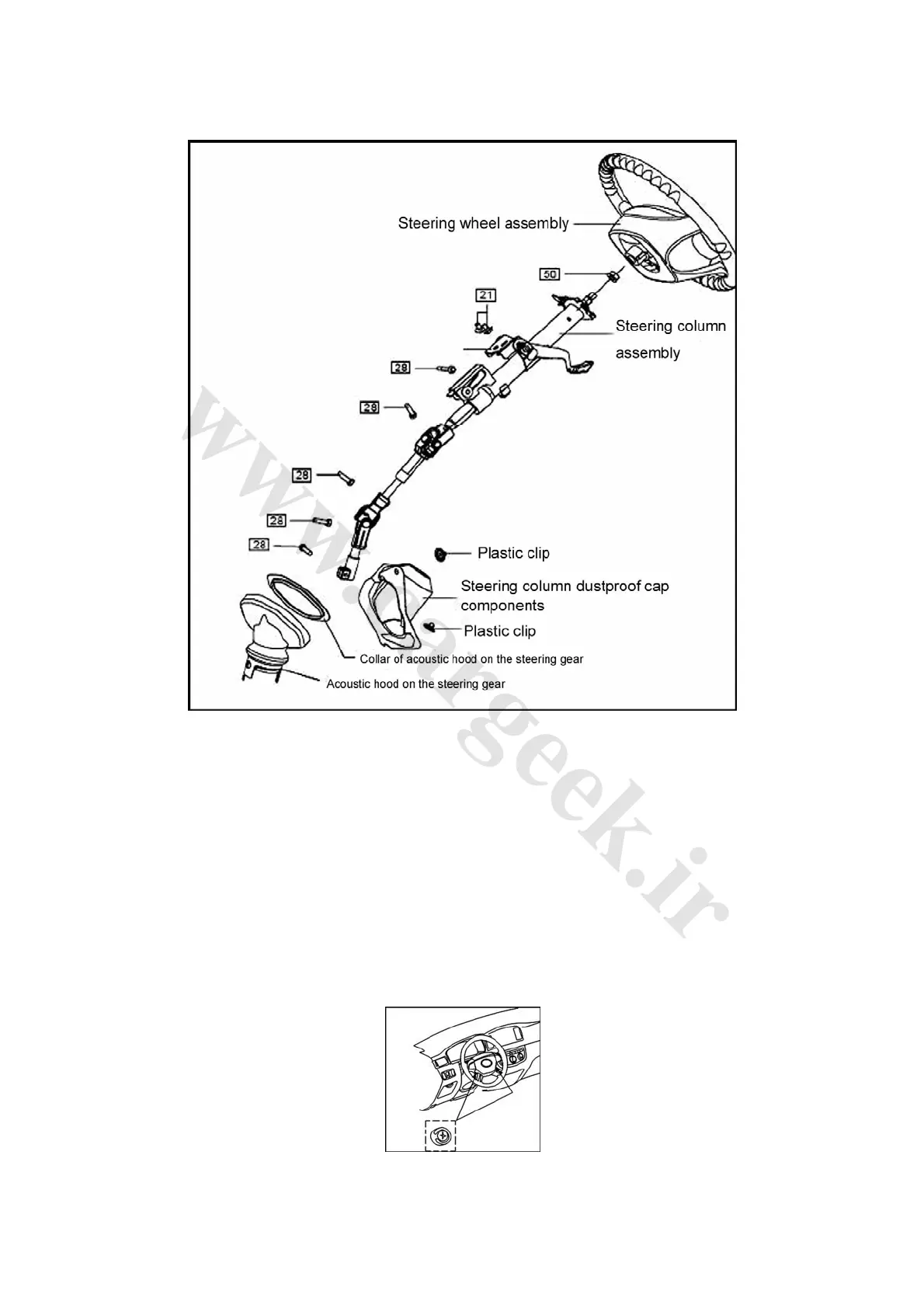

2. Steering wheel and column as shown in Fig. 2-25.
Fig. 2-25
3. Removal and installation of steering wheel and column assembly
Note:
① Follow the notes for the maintenance of steering pump.
② Disconnect the negative terminal of the battery.
Make sure that the front wheels are in the straight ahead position.③
(1) Removal
1) Remove the horn button assembly.
Note: Disconnect the connector of air bag in case that the ignition switch is at position “ON”.
2) Loosen the two bolts with socket wrench or screwdriver until the bolt head is locked into the bolt
housing, as shown in Fig. 2-26.
Fig. 2-26
