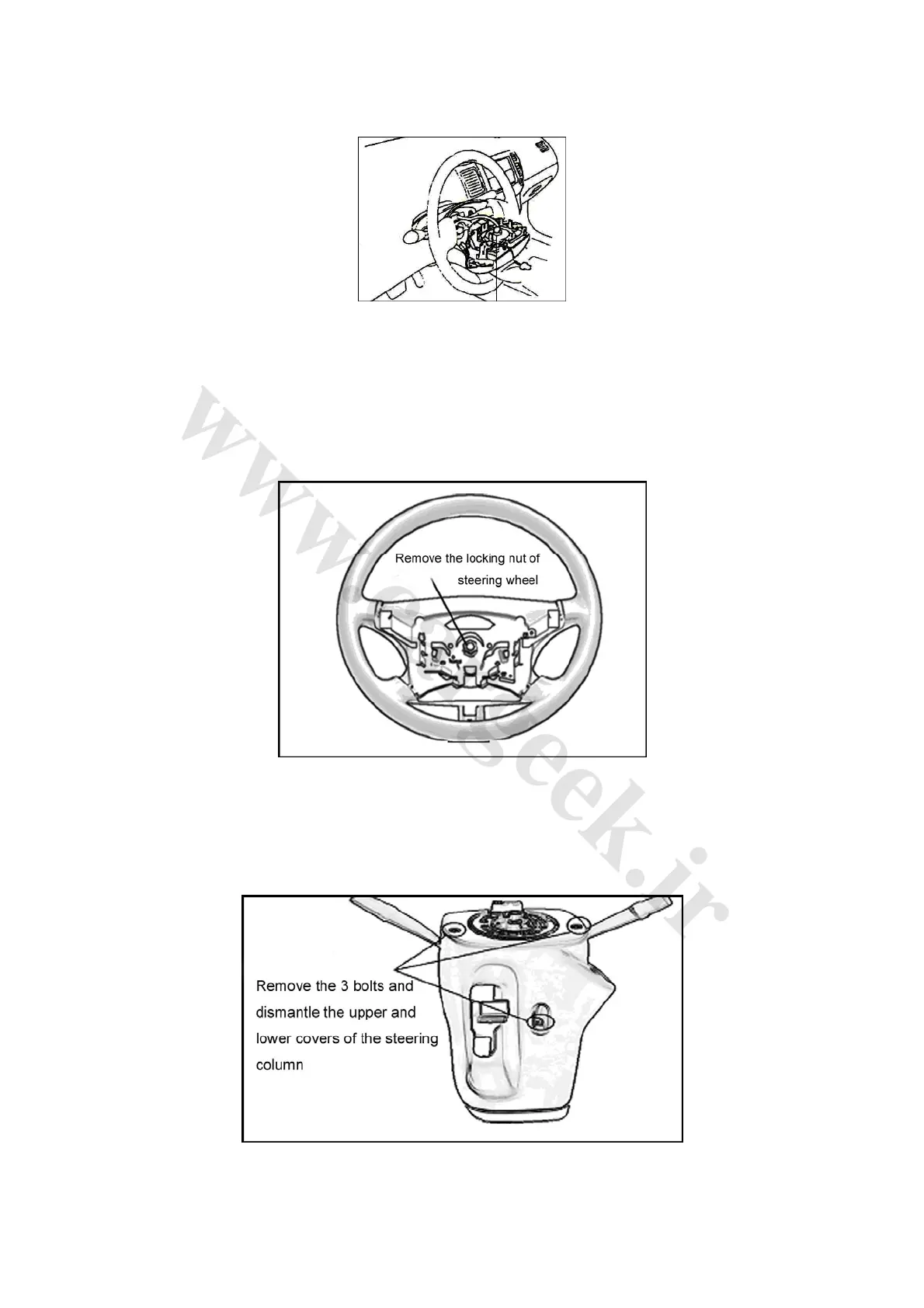

3) Push out the horn button assembly from the steering wheel, as shown in Fig. 2-27.
Fig. 2-27
4) Use a screwdriver to release the locked part of the air bag connector and then remove the air
bag connector.
Note: Do not drag the air bag harness when removing the horn button assembly; make the upper
surface upward when placing the assembly; do not disassemble the horn button assembly.
5) Disconnect the connector.
6) Remove the fixing nut of the steering wheel, as shown in Fig. 2-28.
Fig. 2-28
7) Mark the matching place on the steering wheel assembly and the main shaft assembly.
8) Use a special tool to remove the steering wheel assembly.
9) Remove the lower cap of the steering column. Remove the three bolts, the upper & lower caps
of the steering column, as shown in Fig. 2-29.
Fig. 2-29
