II. Placement (See Fig. 4-29)

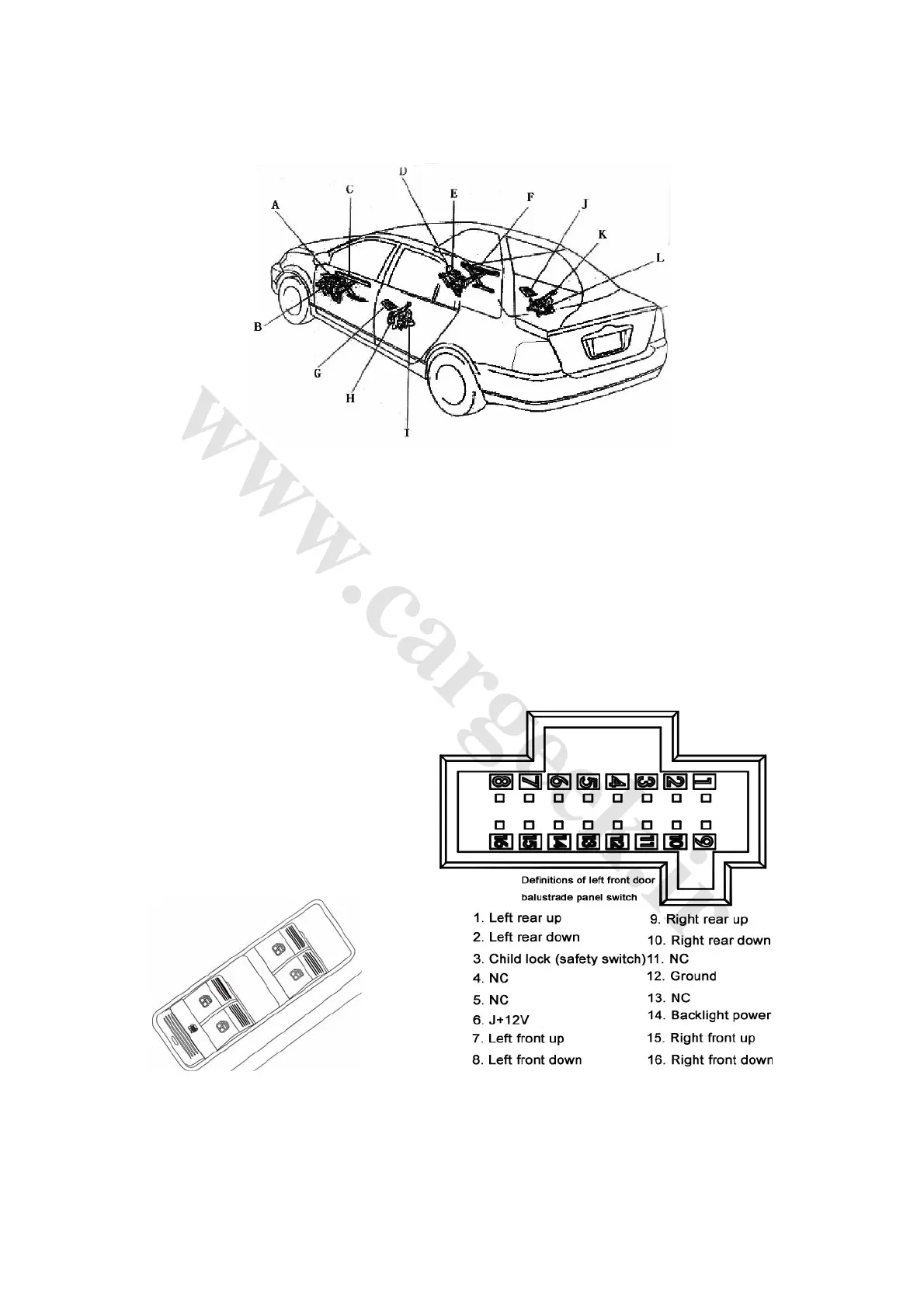

Fig. 4-29
A: Balustrade panel switch of left front door B: Motor of left front door glass frame riser
C: Bracket of left front door glass frame riser D: Balustrade panel switch of right front door
E: Motor of right front door glass frame riser F: Bracket of right front door glass frame riser
G: Balustrade panel switch of left rear door H: Bracket of left rear door glass frame riser
I: Motor of left rear door glass frame riser J: Balustrade panel switch of right rear door
K: Bracket of right rear door glass frame riser L: Motor of right rear door glass frame riser
1. Switch of left front door glass frame riser (See Fig. 4-30 and Fig. 4-31)
Fig. 4-30 Fig. 4-31
