3. Take out filter element upwards, and check the ventilation property. Change the filter element
for bad ventilation property, as shown in Figure 6-14.

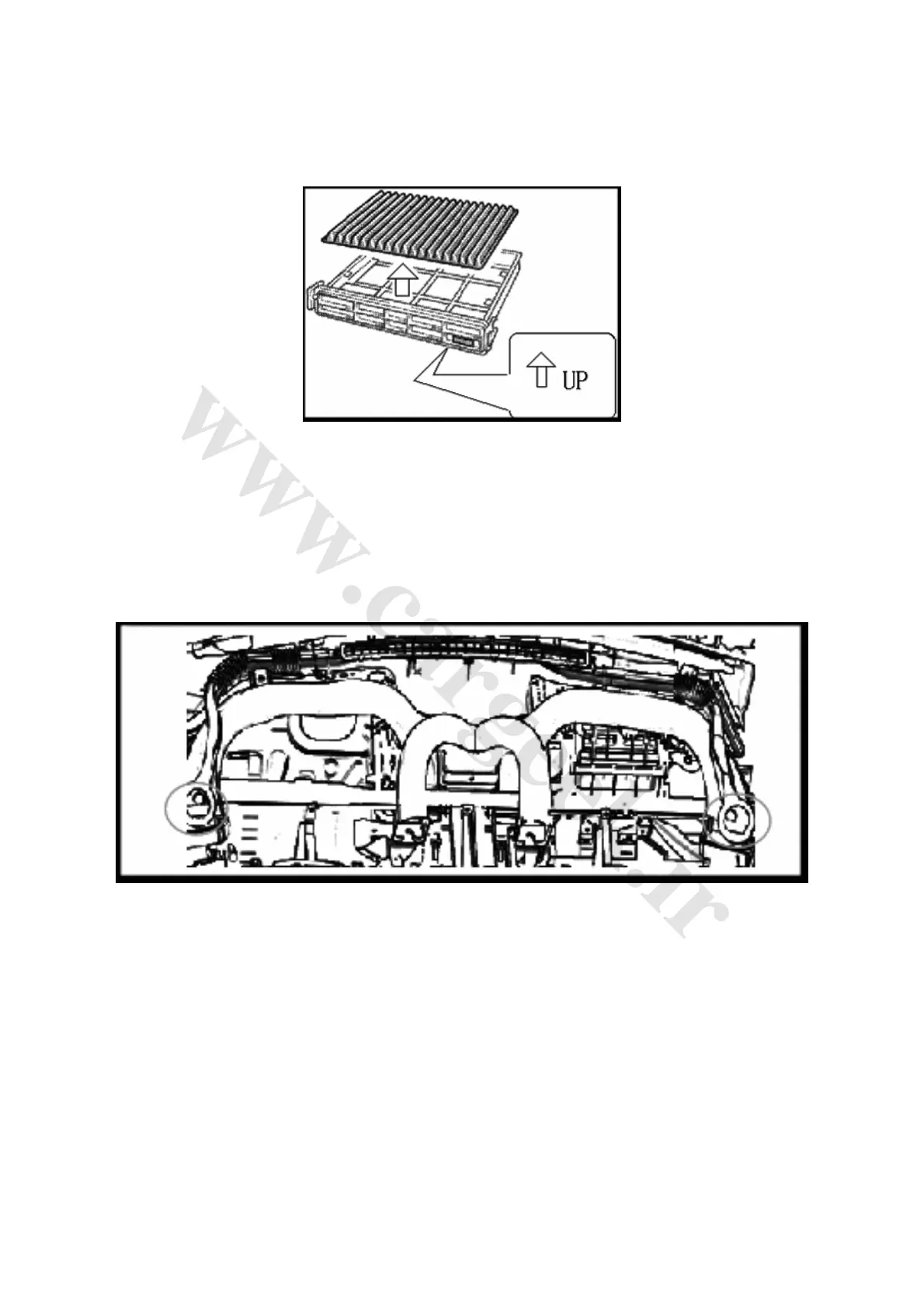

Figure 6-14
IV. Inspection for evaporator housing
1. Disassemble air duct
(1) Disassemble upper air duct of the housing
Remove the ① cover board of dashboard (please refer to the disassemble method of dashboard)
② Disassemble guard staples of the two sides of the air duct, as shown in Figure 6-15.
Figure 6-15
(2) Disassemble lower air duct of the housing
① Move seat backwards
② Pull away the carpet, disassemble left and right upper air ducts, and then take out all the air
ducts.
