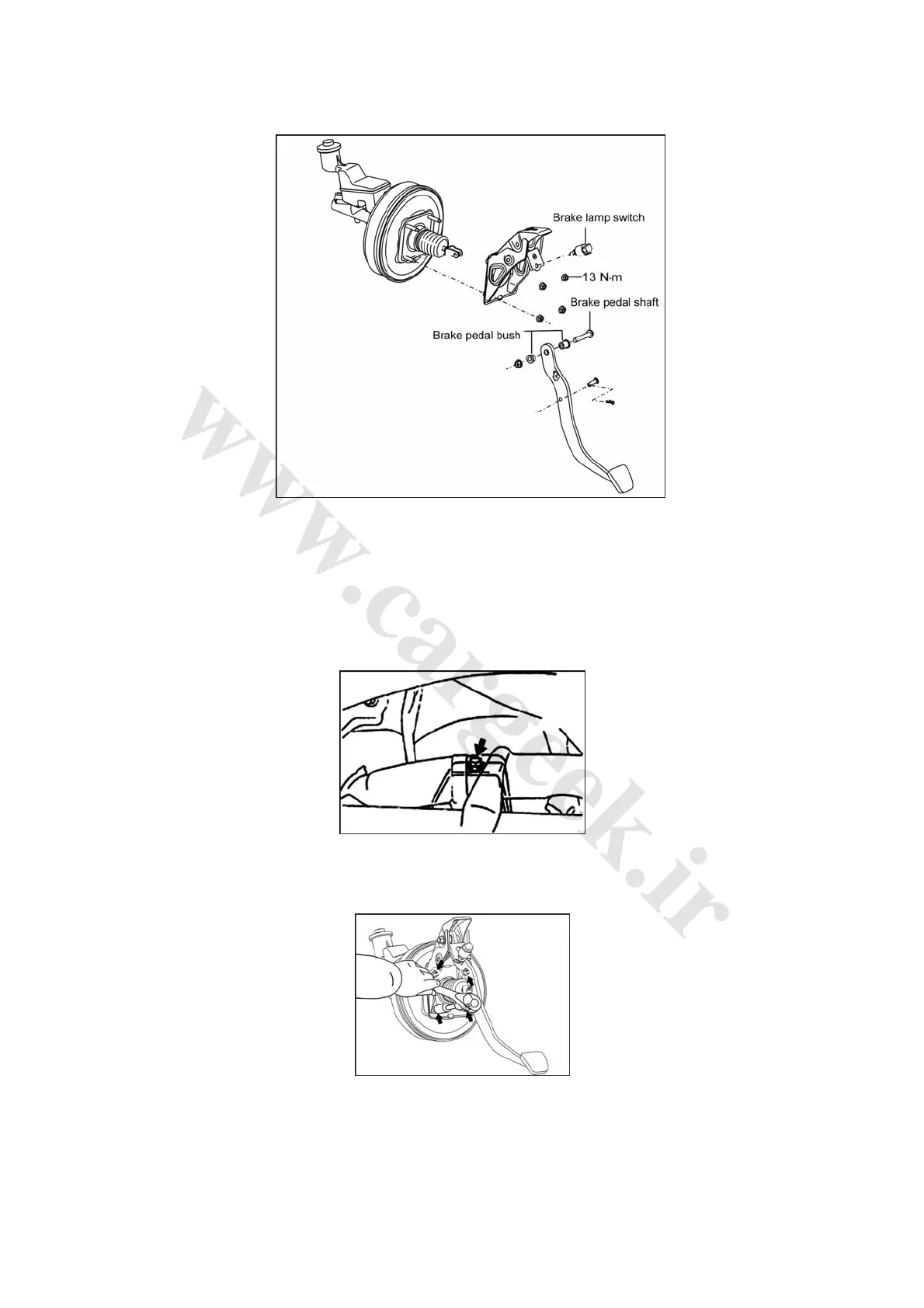

5. Removal and installation. See Fig. 2-46.
Fig. 2-46
(1) Removal
1) Remove the components of instrument cluster.
2) Disconnect the U connector of the push rod of brake master pump. Dismantle the clip and push
rod pin, and disconnect the brake master pump from the brake pedal.
3) Remove the brake pedal support.
Remove the bolts from the brake pedal support. See Fig. 2① -47.
Fig. 2-47
Disconnect the connector of the brake lamp.②
Remove 4 nuts and the brake pedal support. See Fig. 2③ -48.
Fig. 2-48
4) Remove the brake pedal assembly.
① Remove the bolts and nuts from the brake pedal support.
Remove the brake pedal and 2 bushes. ②
