(3) Disassembly of the rear shock damper assembly
1) Dismantle the rear wheel.

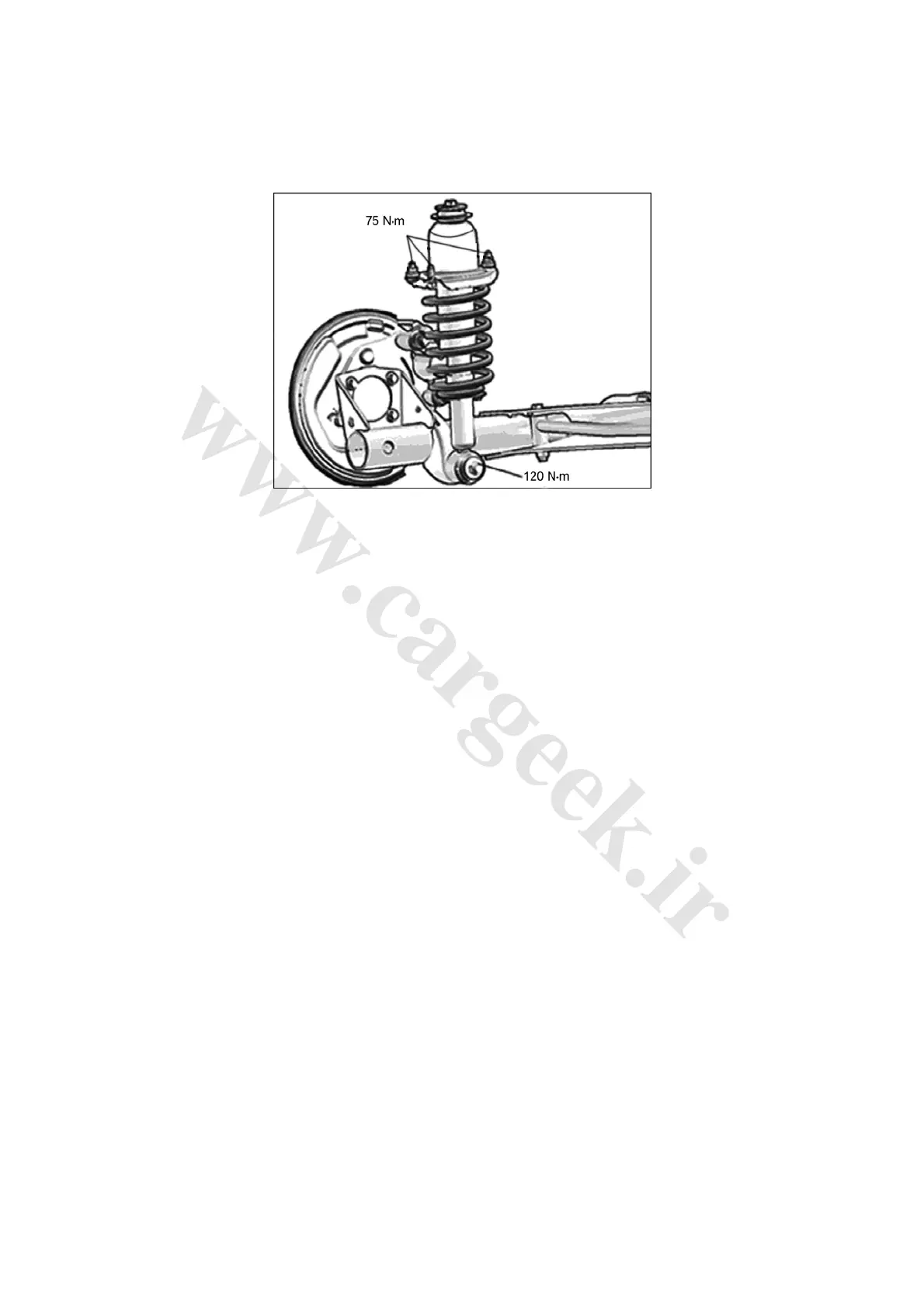

2) Dismantle the left and right rear shock damper assembly according to Fig. 2-22.
Fig. 2-22
Raise the rear axle frame by a jack.①
② Dismantle the thickened flange nut connecting the rear shock damper from the rear sub-frame
assembly.
③ Dismantle a bolt and 2 nuts connecting the rear shock damper assembly and the vehicle body.
④ Dismantle the rear shock damper from the vehicle body.
(4) Installation of rear shock damper assembly
To install, reverse the removal procedure.
(5) Inspection of shock damper assembly. Check if there is abnormal resistance or noise when
pressing or pulling the push rod of shock damper. In case of any abnormal situation, please
replace the shock damper with a new one.
