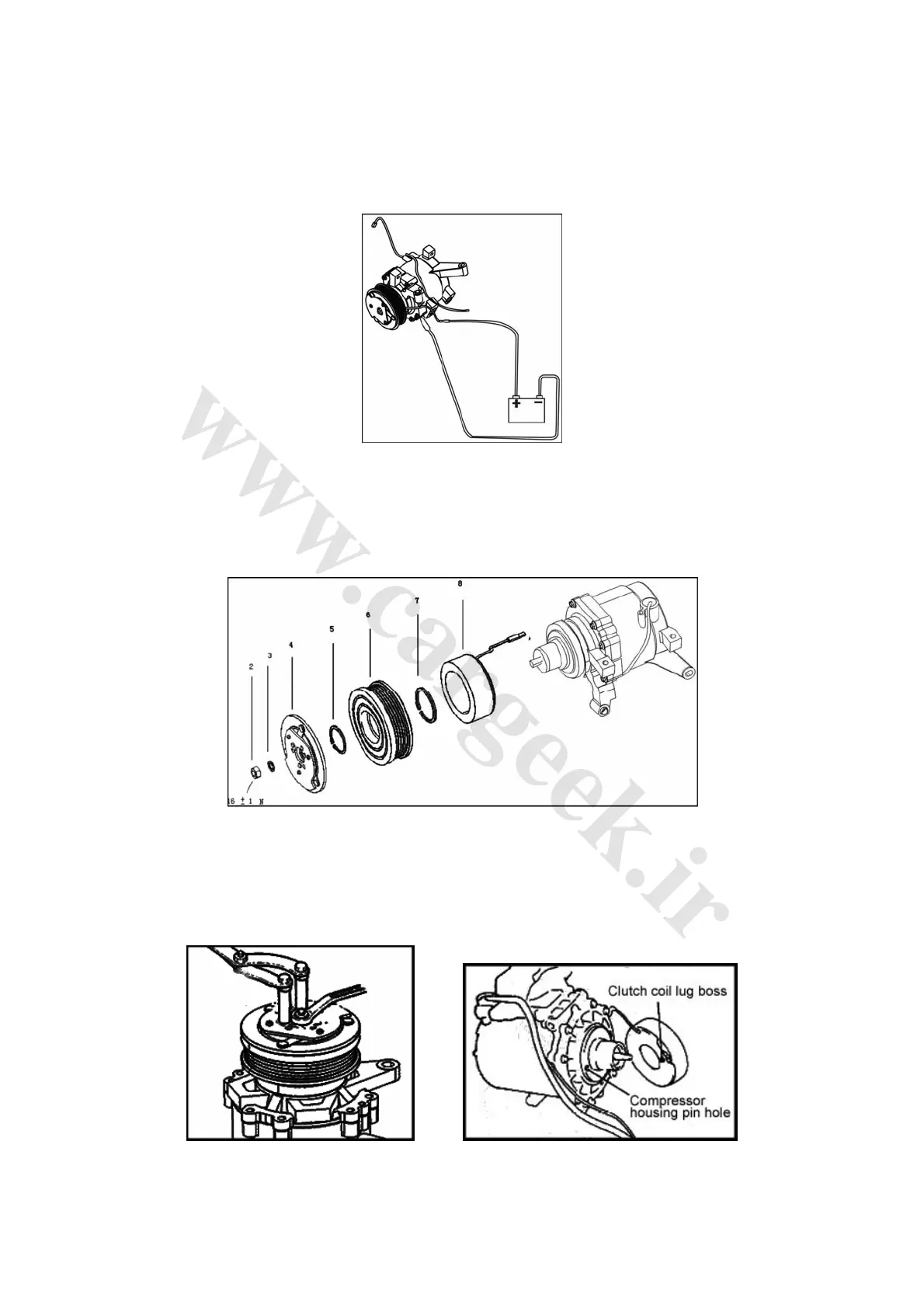

Connect battery positive to the connector clip of electromagnetic clutch directly, negative to the
body of compressor. If the electromagnetic clutch is normal, you will hear a rattle. If the belt pulley
does not touch the armature (no rattle), fault exists, Figure 6-27.
Figure 6-27
2. Disassembly and Assembly:
Disassemble self-locking nut according to disassembly essentials as shown in Figure 6-28
Figure 6-28
1. Compressor overheating protection switch; 2. Self-locking nut; 3. Washer; 4. Armature head;
5. Snap ring; 6. Rotor; 7. Snap ring; 8. Clutch coil;
Assembly essentials for clutch coil: see Figure 6-20 and Figure 6-30
Figure 6-29 Figure 6-30
