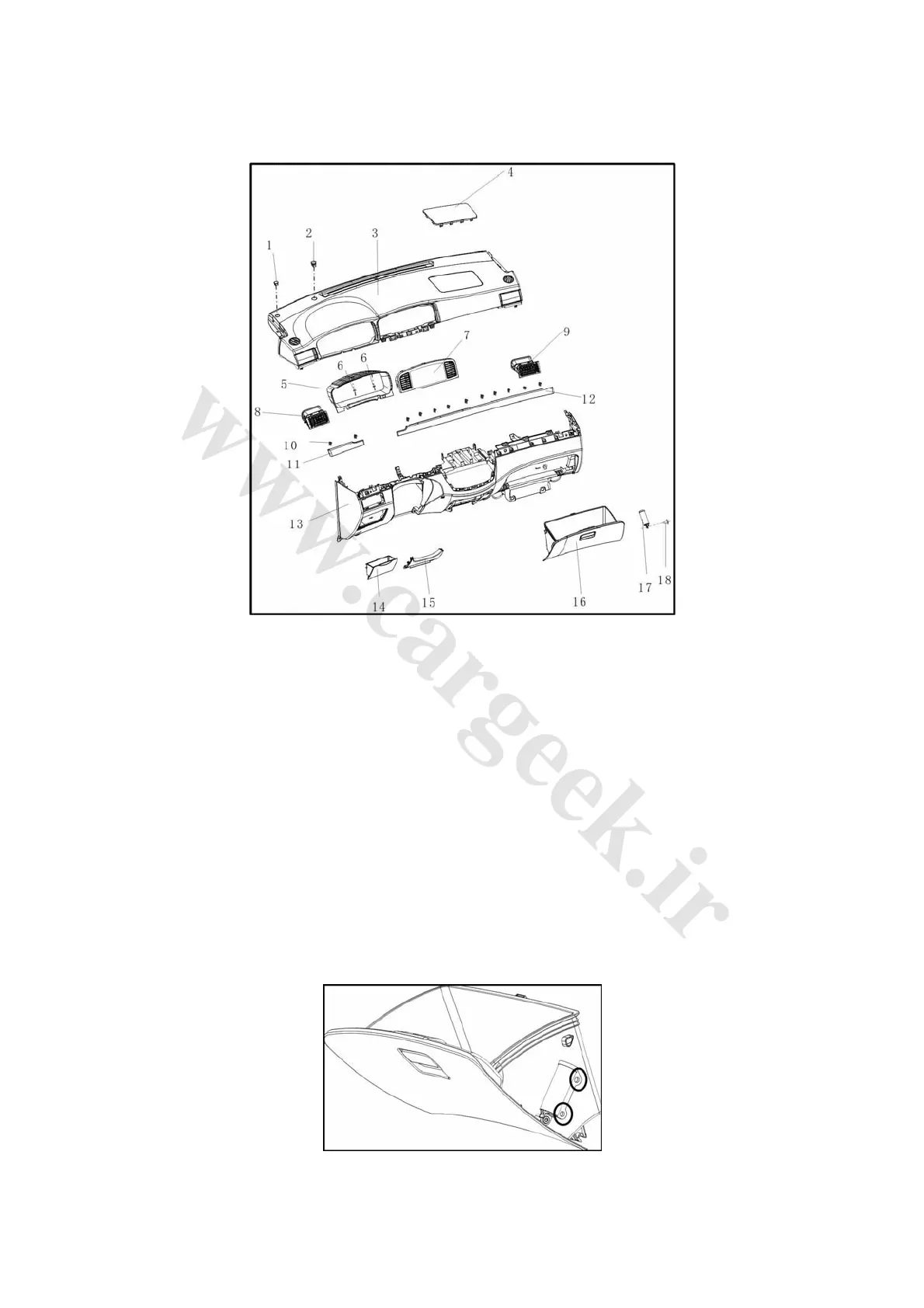

X. Main instrument desk, as shown in Fig. 7-36
Fig. 7-36
1. Sunshine sensor cover stem 2. Optical sensor cover stem
3. Instrument panel upper guard panel 4. Front passenger air bag cover board
5. Instrument cluster face shield 6. Screw
7. Middle vent small assembly 8. Left vent small assembly
9. Right vent small assembly 10. Instrument panel trim strip fastening buckle
11. Instrument panel left trim strip 12. Instrument panel right trim strip
13. Instrument panel lower guard panel 14. Left small sundries box
15. Steering wheel lower guard panel 16. Sundries case
17. Pneumatic pullback spring 18. Self-tapping screw
1. Detailed installation notes
(1) Right sundries box
After pneumatic pullback spring and sundries box are fastened, insert the pneumatic pullback
spring hole into the buckle corner (as shown in the circle of Fig. 7-37).
Fig. 7-37
