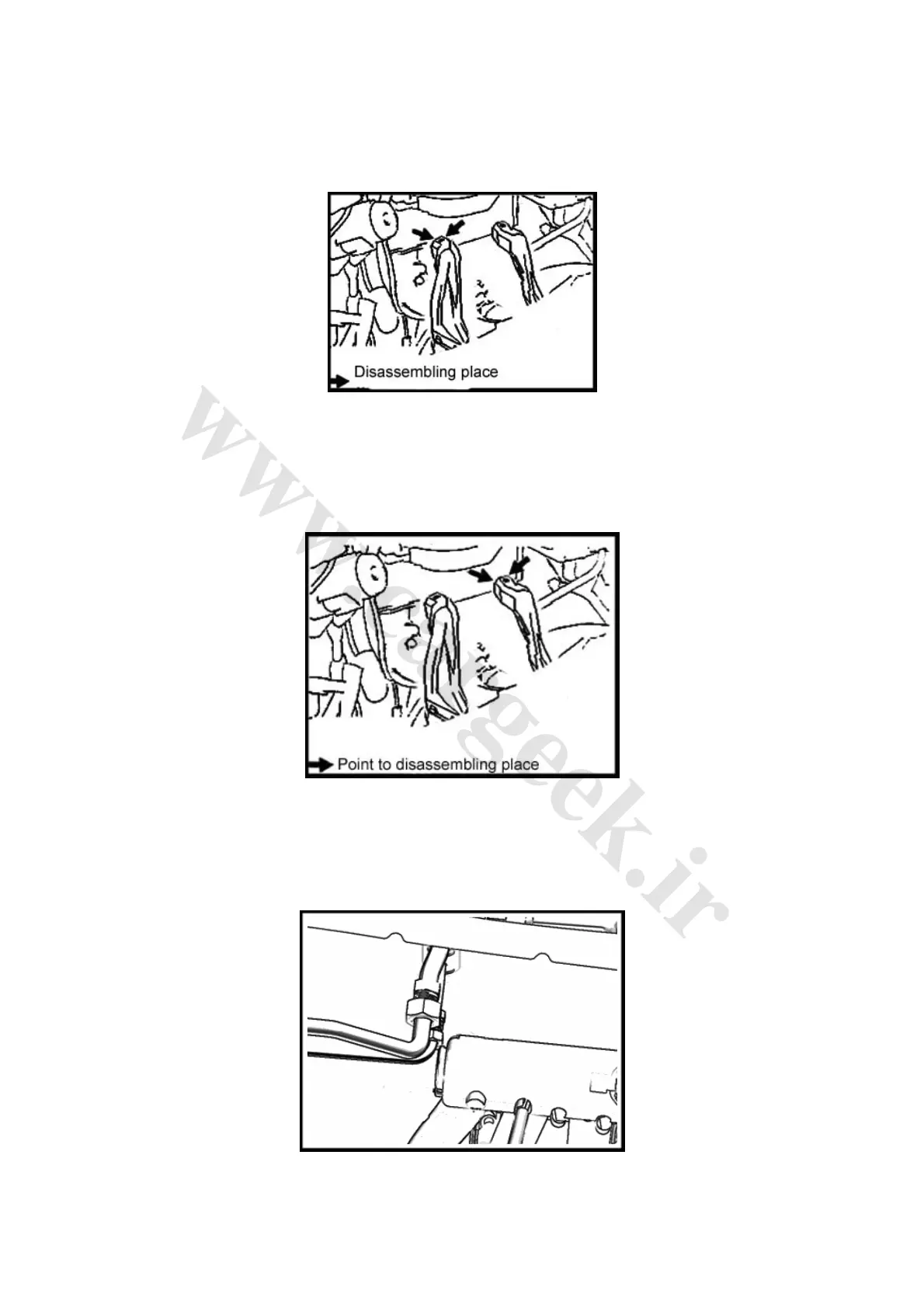

Disconnect the upper air duct on the left floor. According to the position indicated by the
arrowhead, move the upper air duct on the left floor sideways to loosen it, as shown in Figure 6-16.
Figure 6-16
Disconnect the upper air duct on the right floor. According to the position indicated by the
arrowhead, move the upper air duct on the right floor sideways to loosen it, as shown in Figure
6-17.
Figure 6-17
2. Disassemble housing
(1) Discharge coolant from the system.
(2) Disconnect air conditioner pipeline assembly (as shown in Figure 6-18).
Figure 6-18
