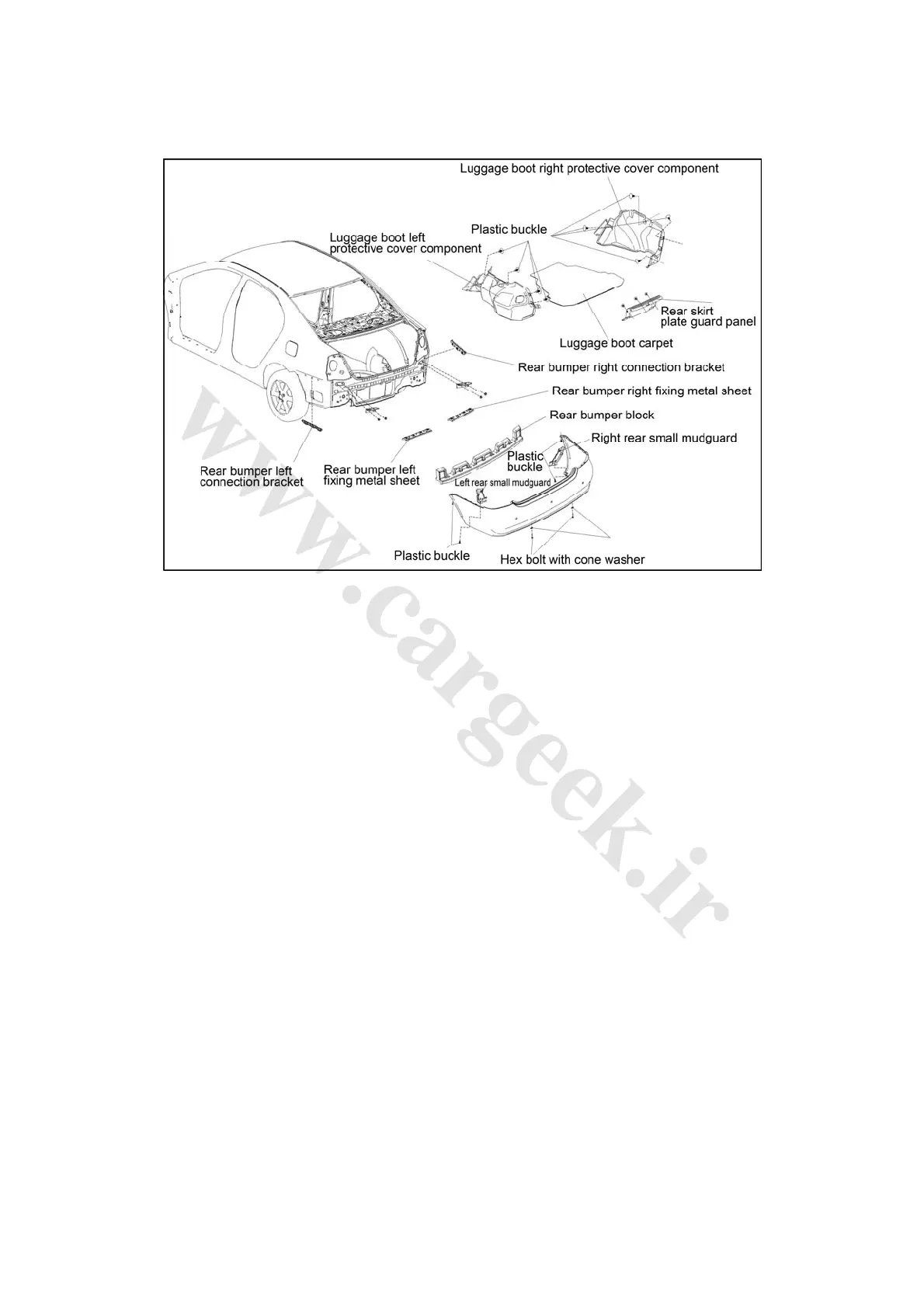

XIII. Rear bumper components (Fig. 7-44)
Fig. 7-44
1. Remove rear wall pedal
① Remove 3 buckles.
② Disconnect the 8 jack catches and rear skirt plate with screwdriver. Notes: Wrap the
screwdriver tip with adhesive tape before use.
2. Remove floor felt pad in luggage boot.
3. Remove left felt pad in luggage boot.
Remove 4 buckles and left felt pad in luggage boot with buckle detacher. Notes: Wrap the
screwdriver tip with adhesive tape before use.
4. Remove right felt pad in luggage boot. Notes: the same with Step 3
5. Remove left rear combination headlamp.
① Remove the 3 nuts fastening the combination headlamp with spanner.
② Disconnect interfaces of combination lamp.
③ Remove the combination headlamp. Notes: Do not scratch vehicle body paint and anticorrosion
paint in the vehicle.
6. Remove right rear combination headlamp. Notes: the same with Step 5.
7. Remove left rear small mudguard
① Remove 2 screws and left rear small mudguard.
② Remove BL234 snap button and matching washer Q40208. Notes: Turn the sub-button with a
cross-tip screwdriver in counter-clockwise direction.
8. Remove right rear small mudguard. Notes: the same with Step 7.
9. Remove rear bumper
① Remove the 2 self-tapping screws in the left side of rear bumper with Phillips screwdriver.
② Remove the 2 self-tapping screws in the right side of rear bumper with Phillips screwdriver.
