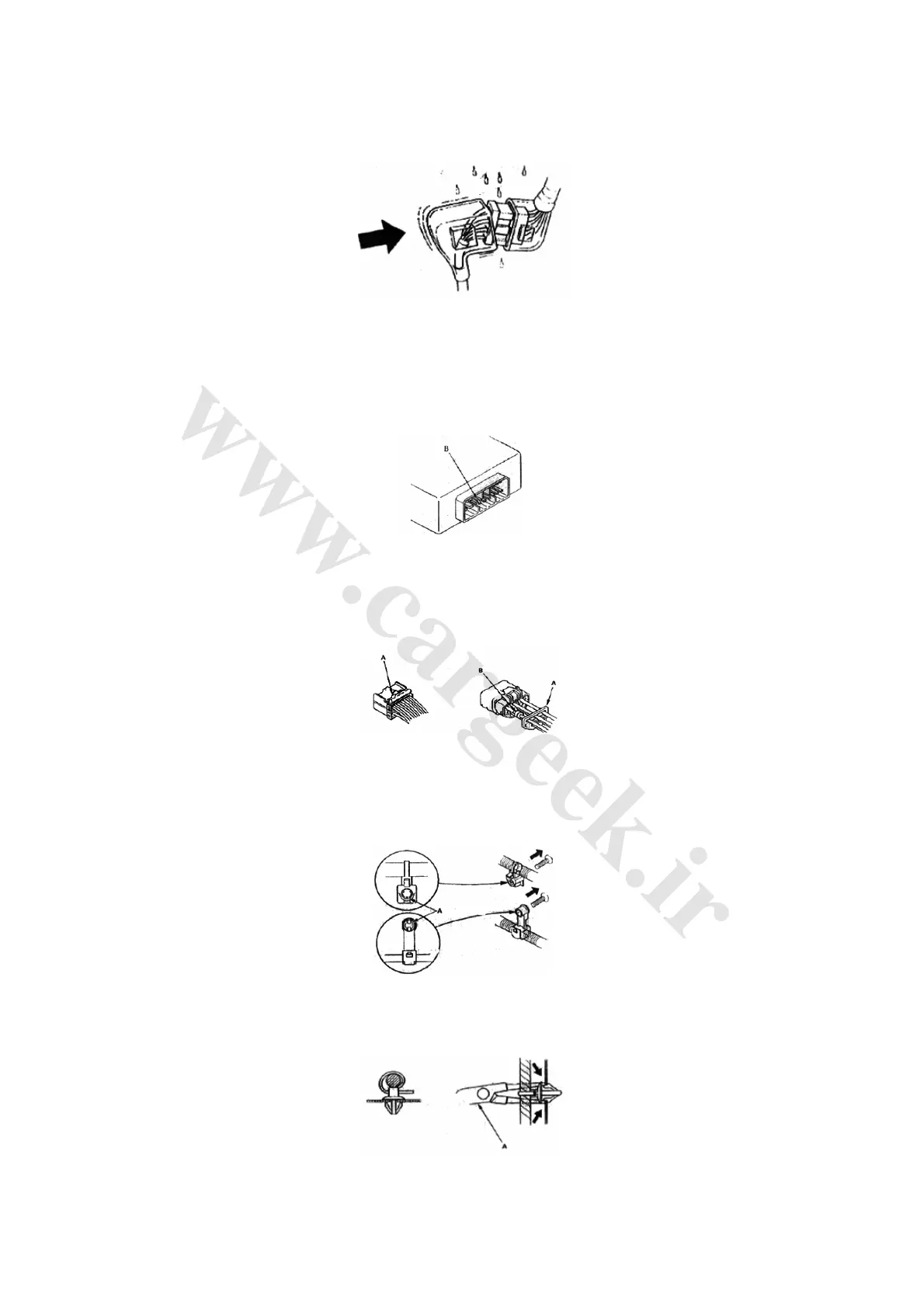

6. As for the ones with protective plastic or rubber sleeve, install the sleeve while removing.
(Fig. 4-3)
Fig. 4-3
7. Before connecting interfaces, make sure the terminal (B) locates at its origin, free from bending
or other distortion; regarding some multihole interfaces, make sure the socket is filled with grease
(waterproof interface excluded). (Fig. 4-4)
Fig. 4-4
III. Before repair
1. Check for tightness of retainer (A) and rubber seal (B). (Fig. 4-5)
Fig. 4-5
2. Insert the interface directly, to ensure reliable locking.
3. Secure the lead at designated mounting position with the help of the binding belt for each lead.
4. Remove the wire clip with care, be aware not to damage its latch fitting (A). (Fig. 4-6)
Fig. 4-6
5. Slide the pliers down to the bottom of the wire clip, through the hole at a certain angle, and then
seize up the expansion piece, so as to loose the wire clip. (Fig. 4-7)
Fig. 4-7
