V. Rear wall

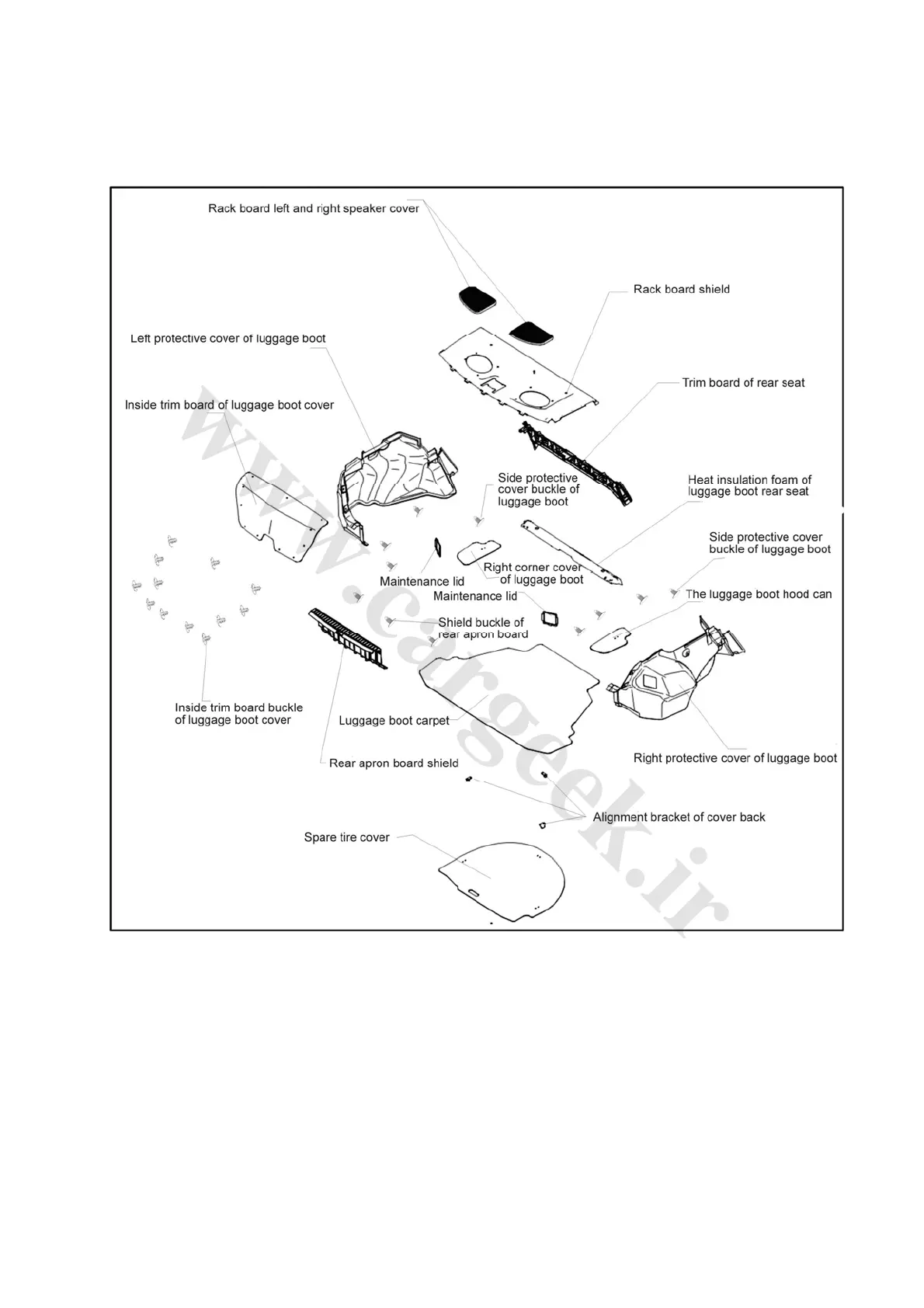

1. Removal of rear wall, as shown in Fig. 7-25:
Fig. 7-25
The luggage boot hood can be removed after dismantling the 11 fixing buckles. The luggage
carpet is on the top of the inner luggage boot. Uncovering the carpet, the caudal cover board and
spare tire cover board can be revealed, all of which are not fixed by the fasteners. The left and
right protective covers and the rear skirt plate is firmed by the plastic buckles so they can be
dismantled after removing the buckles. The cover boards for check and maintenance are clipped
on the left and right protective covers respectively.
(Note: The rear skirt plate has its own buckle corner so don’t damage the corner when removing.)
