V. Components and maintenance of the rear seat assembly

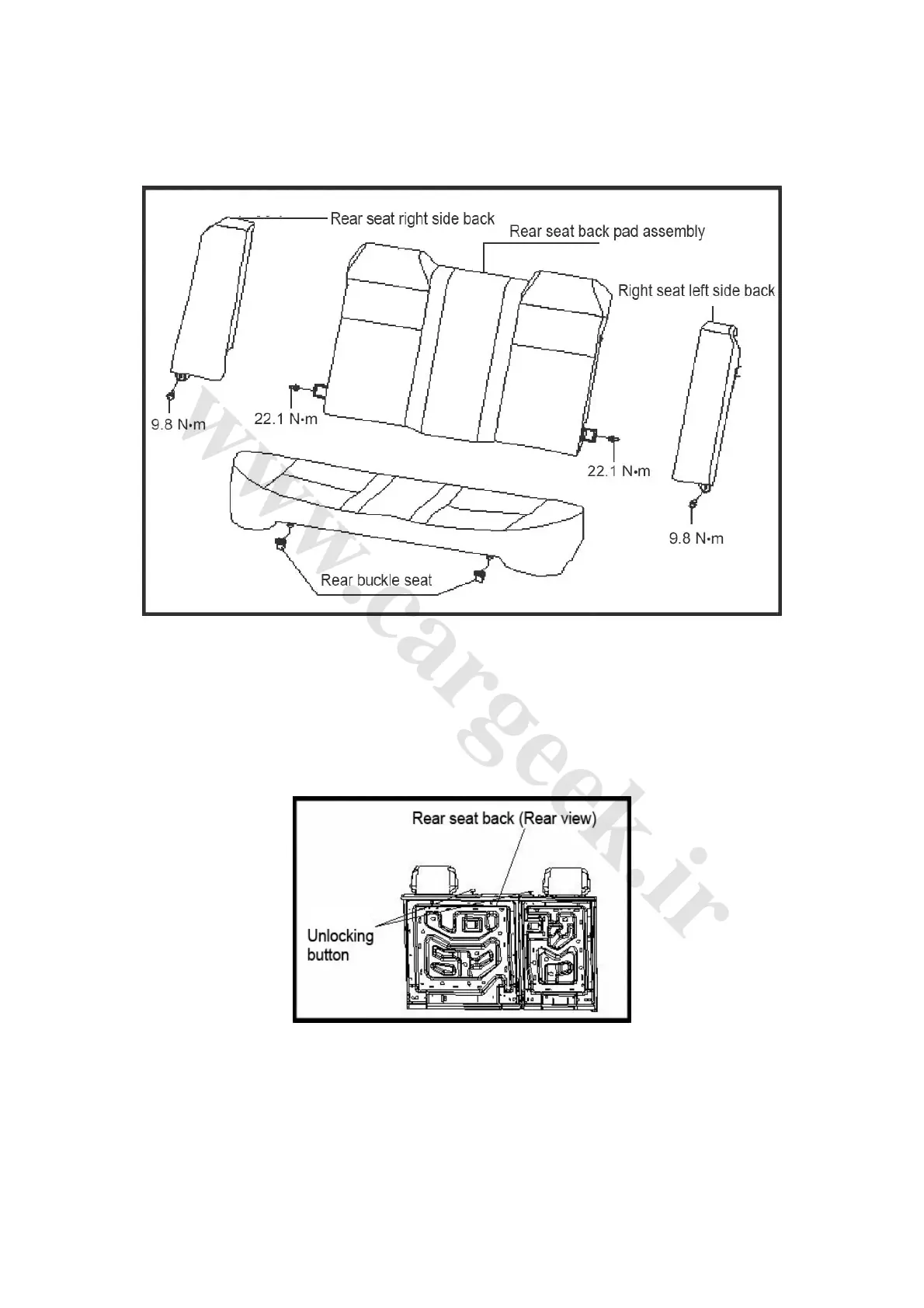

1. Structure of the components as shown in Fig. 7-16.
Fig. 7-16
2. Removal
(1) Remove the rear seat back pad assembly
① Lift the unlocking button to unlock the back pad and push over the back pad, as shown in Fig.
7-17.
Fig. 7-17
Incline② the seat back assembly.
Remove the two side bracket f③ lange bolts connecting to the body at the left and right side.
Note: Removing the bolts first is acceptable.
(2) Remove the left side back of the left rear seat.
To Next Page
