Section II Power Window
I. Overview

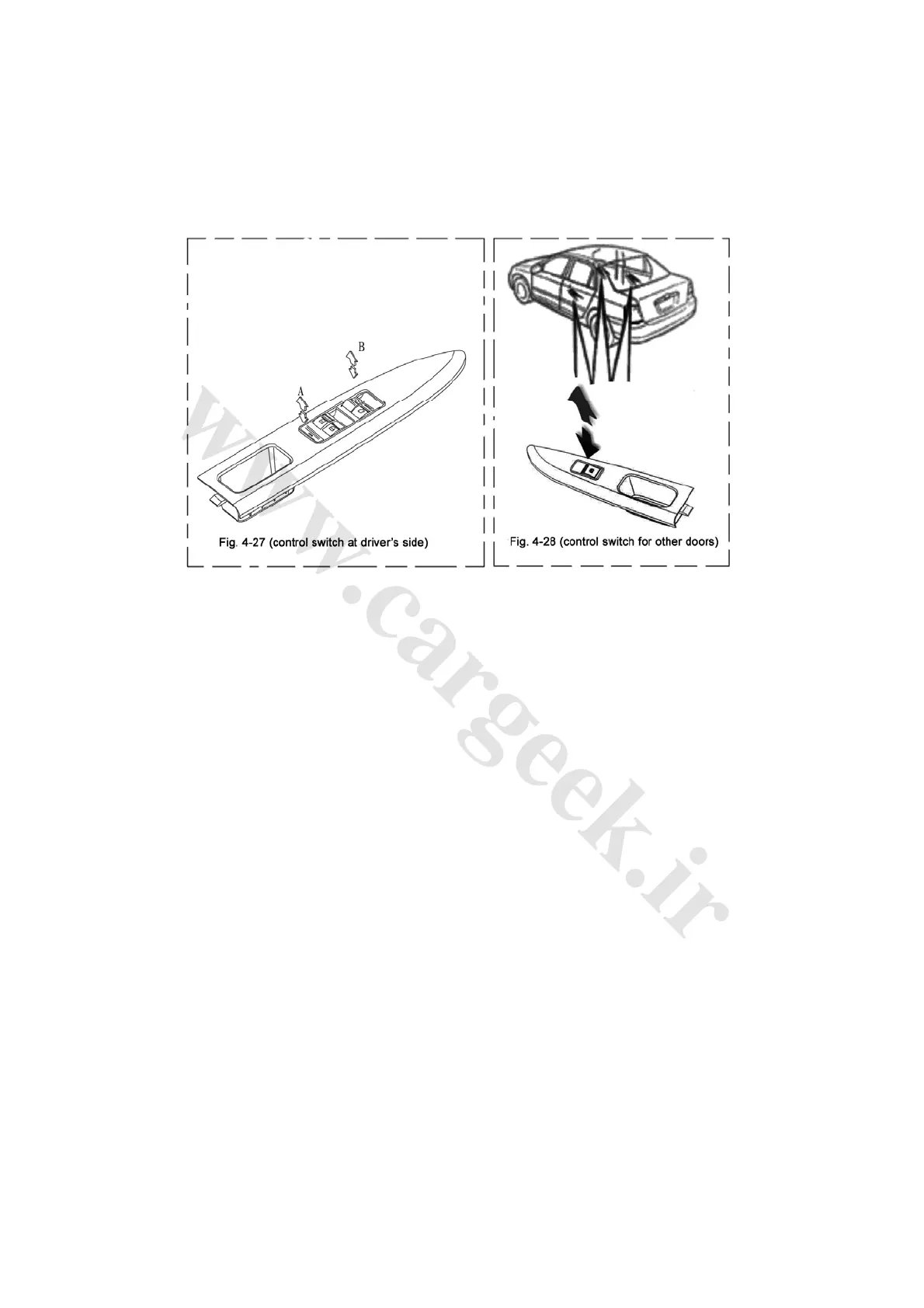

System operation: Operate the switch on door trim panel to make the window ascend or descend,
as shown in Fig. 4-27 and Fig. 4-28. The driver can operate switches of all windows by operating
the main switch on front door trim panel at driver’s side; the safety switch of power window locates
on front door trim panel at driver’s side, the driver can inactivate the switches of all windows
through key A. Only when the ignition switch locates at ON position, can the power window system
work.
(1) Inching up
EX: Lift the window glass controller for ≥300ms, corresponding window glass will rise, and then
release the switch, rise stops.
LX/DX: Lift the window glass controller switch, corresponding window glass will rise, and then
release the switch, rise stops.
(2) Inching down
EX/LX/DX: Press the window glass controller for ≥300ms, corresponding window glass will
descend, and then release the switch, descending stops.
(3) Automatic up
EX: Lift the window glass controller for ≤300ms, corresponding window glass will rise, the window
lifter will power off till reach the top. If the detection signal is lost when reach the top, then the
window lifter will work for 8 seconds at one time and stop to protect the motor. If another rise or
descending operation is ordered during the rise, then the rise stops, and the window lifter will
power off till reach the top.
If something is caught by rising window glass, the rise immediately stops and descending starts
automatically, during the descending, all operations are useless, and the window lifter will power
off till touch the bottom.
(4) Automatic down:
