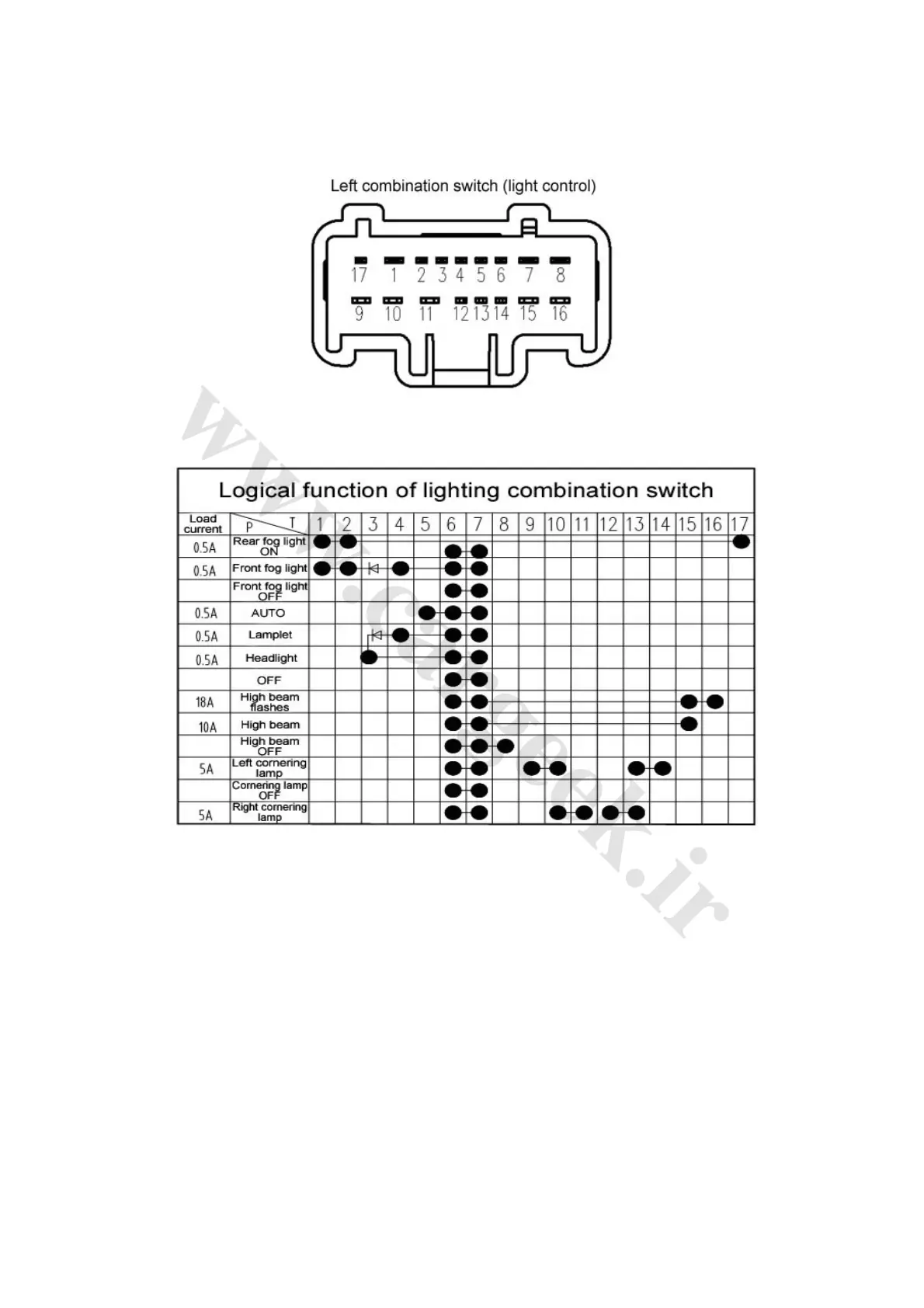

3. Check left combination switch (light control) as shown in Fig. 4-84 and Fig. 4-85.
Fig. 4-84
Fig. 4-85
(1) Check the conductivity of control switch of front and rear fog lights
When the light control switch is at OFF, terminals should be not conducted with each other, when
the switch is at front fog light position, terminals 1 and 2, 4, 6 and 7 should be conducted, when the
switch is at rear fog light position, terminals 1 and 2, 17 should be conducted.
(2) Check the conductivity of dipswitch of headlight: When the dipswitch is at overtaking flash
position, terminals 7 and 15, 16 should be conducted, when the dipswitch is at front headlight
position, terminals 6 and 4, and terminals 4 and 3 should be conducted, when the dipswitch is at
high beam position, terminals 7 and 15 should be conducted.
(3) Check the conductivity of signal switch of steering light: When the signal switch is at turn right
position, terminals 10 and 11, and terminals 12 and 13 should be conducted, when the signal
switch is at neutral position, terminals should be not conducted with each other, when the signal
switch is at turn left position, terminals 9 and 10, and terminals 13 and 14 should be conducted.
