Chapter VII Auxiliary Component System
Section I Cable
I. Inner control handle and cable assembly of engine hood
During the installation, the inner control handle and cable assembly of the engine hood penetrate
the part 1 first and then part 2, connect with the part 4 along part 3 and finally install the inner
control handle and dash board. Make sure that the cable keeps along the harness after going
through the part 2. There is a front wheel housing cover stem on part 2. The cable will come
through the cover stem and be fixed on part 3 by a buckle as shown in Fig. 7-1.

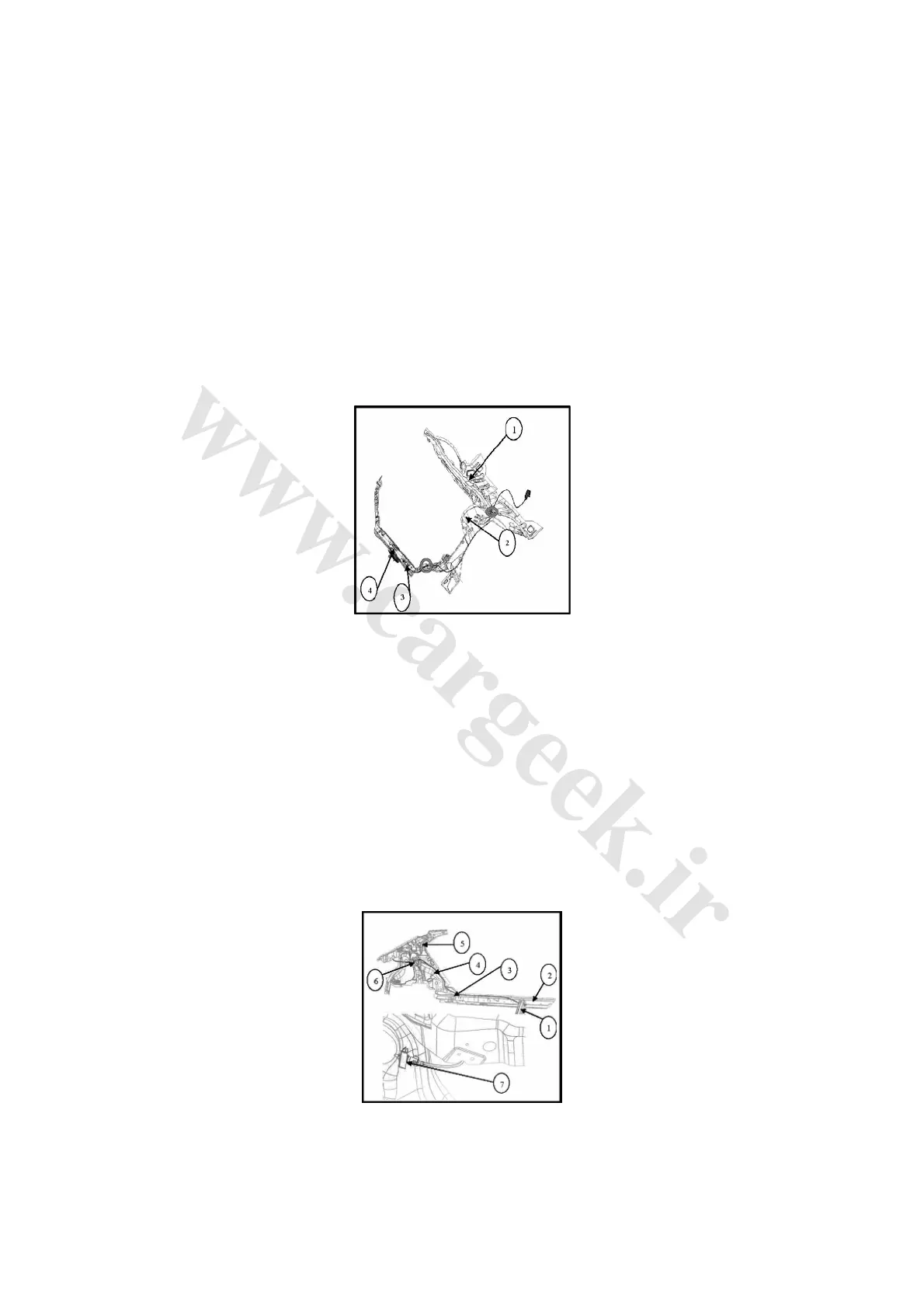

Fig. 7-1
1. Dash panel 2. Housing plate of left front wheel
3. Header crossbar assembly of water tank 4. Locking device assembly of engine hood
II. Inner control handle and cable assembly of fuel tank
During the installation, the inner control handle is fixed on the part 1 with the bolt first; next the
cable penetrates the back of part 1, goes through the holes on the part 2, 3, 4, 7, 6 in order to
circle to the other side of the metal sheet, and finally the end of pin shaft will be installed on the
part 8. The direction of the cable must keep along the harness after running through the back of
the part 1. When fixing the end of pin shaft, put the pin shaft alignment sleeve on the part 8 first
and then install the end of pin shaft on the pin shaft alignment sleeve on the other side of the part 8,
as shown in Fig. 7-2.
Fig. 7-2
1. Left front seats beam 2. Middle section of left door sill inner plate
3. Rear section of left door sill inner plate 4. Left rear wheel housing inner plate 5. Left C pillar inner panel
6. Left junction panel of luggage compartment front reinforced beam 7. Filler lock bracket
