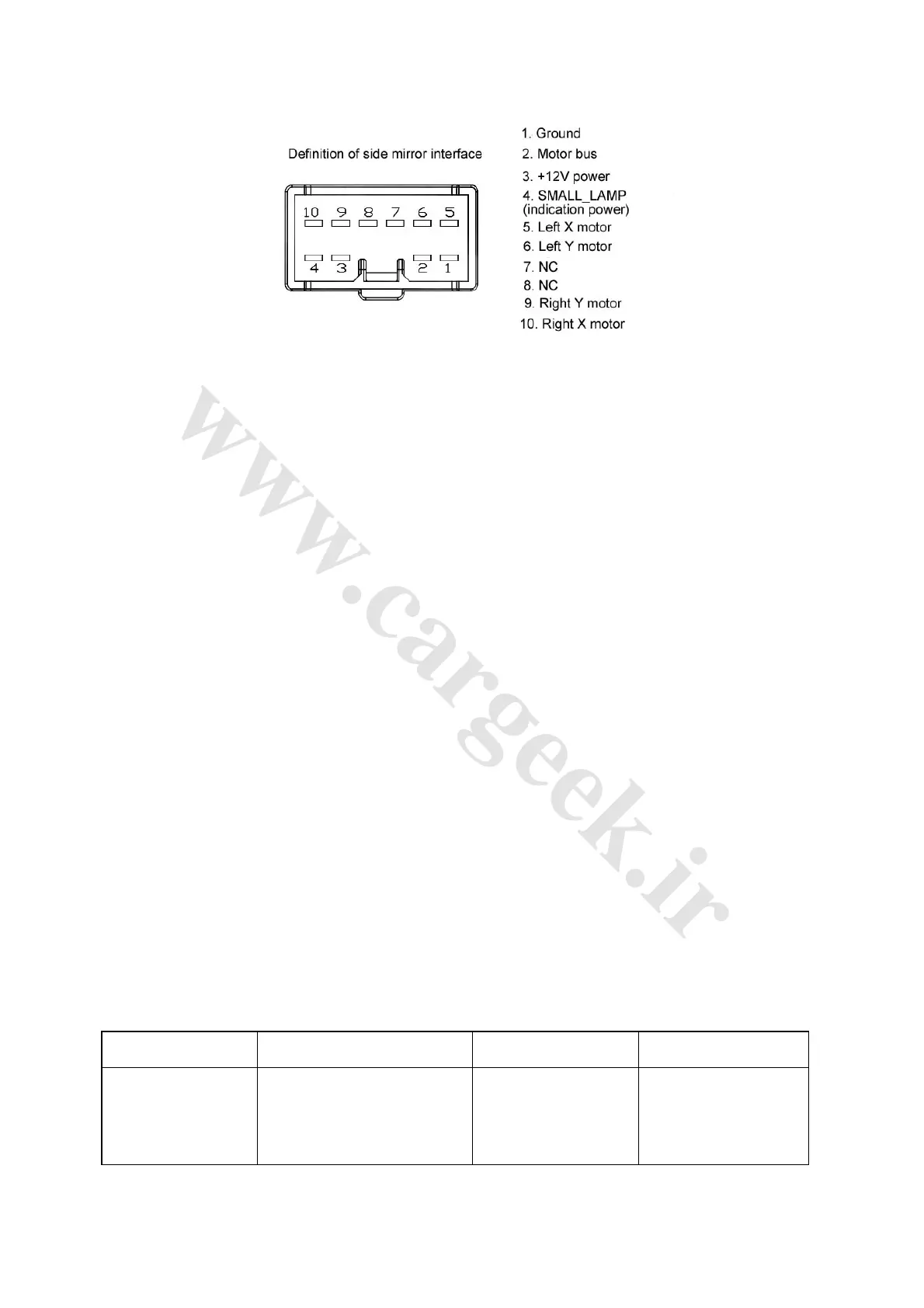

Fig. 4-57
Ignition switch ACC, select left electric side mirror for left and right adjustment
Left: 2-3 conducted, resistance less than 1Ω, 5-1 conducted, resistance less than 1Ω
Right: 5-3 conducted, resistance less than 1Ω, 2-1 conducted, resistance less than 1Ω
Ignition switch ACC, select left electric side mirror for up and down adjustment
Up: 6-3 conducted, resistance less than 1Ω, 1-2 conducted, resistance less than 1Ω
Down: 2-3 conducted, resistance less than 1Ω, 1-6 conducted, resistance less than 1Ω
Ignition switch ACC, select right electric side mirror for left and right adjustment
Left: 3-2 conducted, resistance less than 1Ω, 1-10 conducted, resistance less than 1Ω
Right: 3-10 conducted, resistance less than 1Ω, 1-2 conducted, resistance less than 1Ω
Ignition switch ACC, select right electric side mirror for up and down adjustment
Up: 9-3 conducted, resistance less than 1Ω, 1-2 conducted, resistance less than 1Ω
Down: 2-3 conducted, resistance less than 1Ω, 1-9 conducted, resistance less than 1Ω
2. Electric side mirror motor
(1) Ignition switch ACC, select electric side mirror switch for left and right adjustment
5 (+) 1 (-) Motor turns left
5 (-) 1 (+) Motor turns right
(2) Ignition switch ACC, select electric side mirror switch for up and down adjustment
4 (-) 5 (+) Motor turns down
4 (+) 5 (-) Motor turns up
IV. Trouble Symptom Table 4-12
Table 4-12
Symptom Cause Symptom Cause
Side mirror does not
work
1. Faulty fuse
2. Faulty side mirror switch
3. Faulty side mirror motor
4. Faulty wiring
Side mirror does not
work properly
1. Faulty side mirror
switch
2. Faulty side mirror
motor
To Next Page
