Section I Instrument Cluster
I. Overview

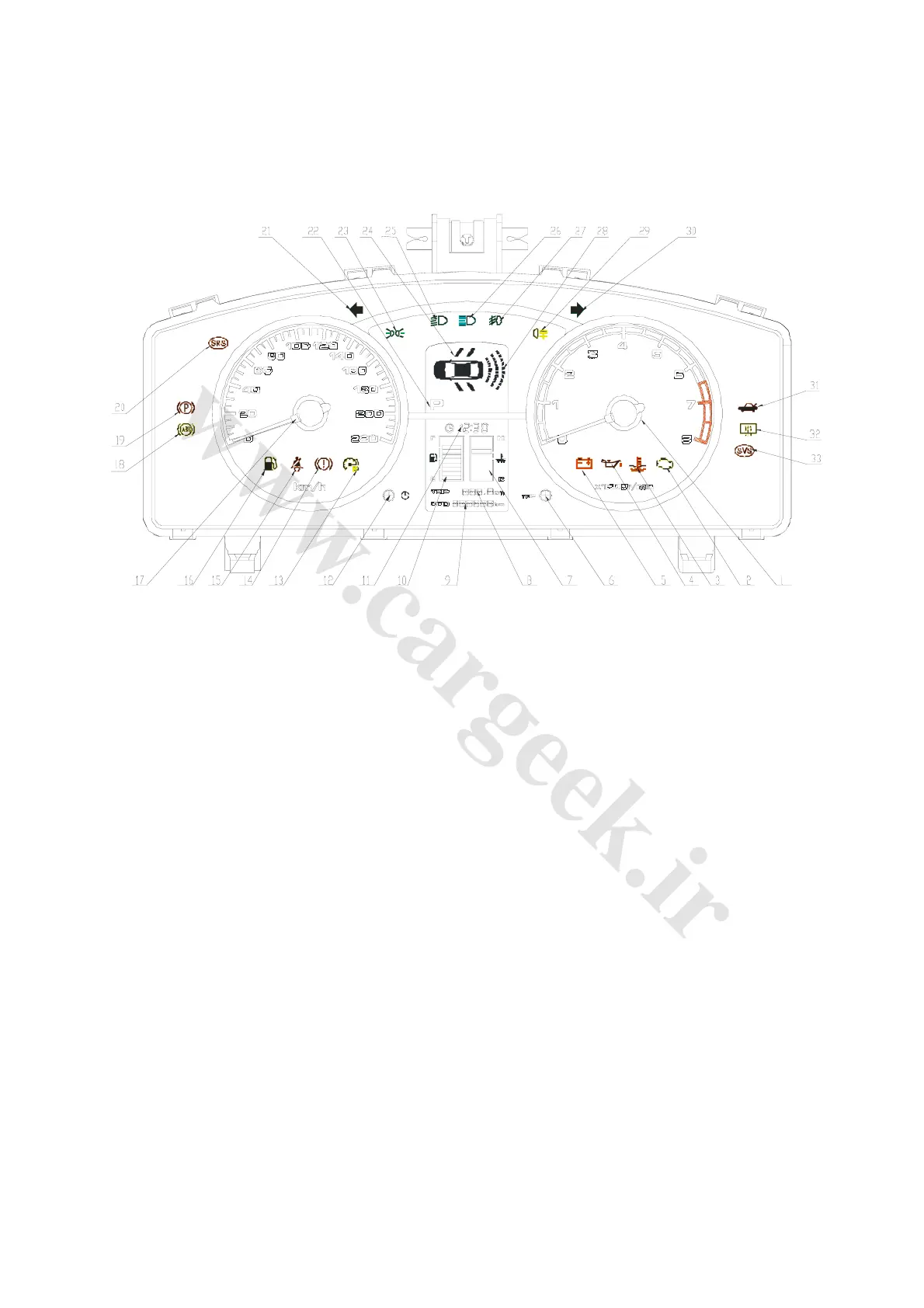

Fig. 4-16
1. Engine tachometer 2. Engine OBD indication
3. Engine coolant overheated indication 4. Oil pressure insufficient indication
5. Charging warning 6. Subtotal odometer adjusting rod
7. Engine coolant temperature indication 8. Subtotal odometer
9. Accumulated odometer 10. Fuel indication
11. Clock 12. Clock adjusting rod
13. 120km/h speed warning 14. Brake fluid warning
15. Seat belt reminder 16. Insufficient fuel warning
17. Speedometer 18. ABS fault warning
19. Parking brake on-position indication 20. Air bag fault warning
21. Steering light indication, L 22. Shift indication
23. Position lamp indication 24. Door ajar indicator
25. Headlight low beam indication 26. Headlight high beam indication
27. Front fog light indication 28. Reverse radar indication
29. Rear fog light indication 30. Steering light indication, R
31. Luggage boot ajar indication 32. Rear defroster indication
33. Trouble indication beyond engine OBD
The instrument cluster as shown in Fig. 4-16 falls into electromechanical equipment, locating right
ahead of the driver, above the steering column, composed of installation parts, electrical
connections and so on. All circuits of the instrument cluster combine to form a single harness,
which is connected by interfaces at the back of cluster housing. All instruments and indicators are
under good protection behind a transparent plastic sheet, obviously seen in front of gauge cover.
