Section IV Electric Side Mirror
I. Overview

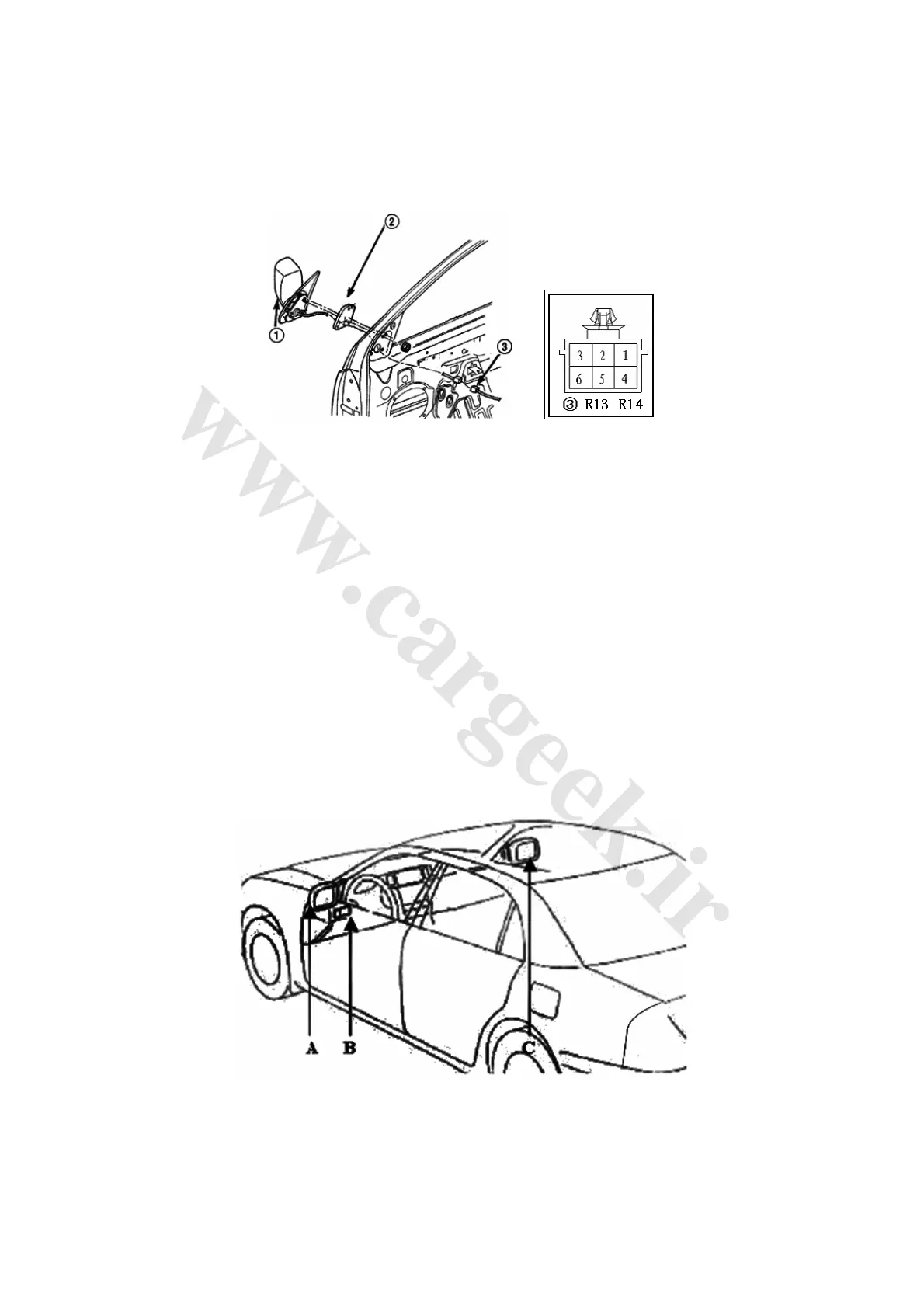

Fig. 4-53
Electric side mirror ① Sealed pad ② Electrical interface③
By operating the electric switcher on the dashboard at the left side of the driver’s seat, the left and
right electric side mirrors can be ordered for turning to left, right or up and down, with adjustable
angle over 7 degrees. During car stop, the driver can fold up the side mirror, to protect it from
possible damage, with adjustable angle over 85 degrees. When the side mirror is bumped from
the back, the mirror cover will turn outwardly to protect the mirror, maximally to 105 degrees. If the
mirror is smashed, little pieces of glass will remain in mirror cradle, to ensure good security.
Consist of the following:
(1) Left and right electric side mirrors
(2) Electric side mirror switch component
II. Placement
1. As shown in Fig. 4-54.
Fig. 4-54
A: Left electric side mirror B: Electric side mirror switch C: Right electric side mirror
