Section VII Inside & Outside Decorations
I. Roof
1. Roof (standard scheme) removal:

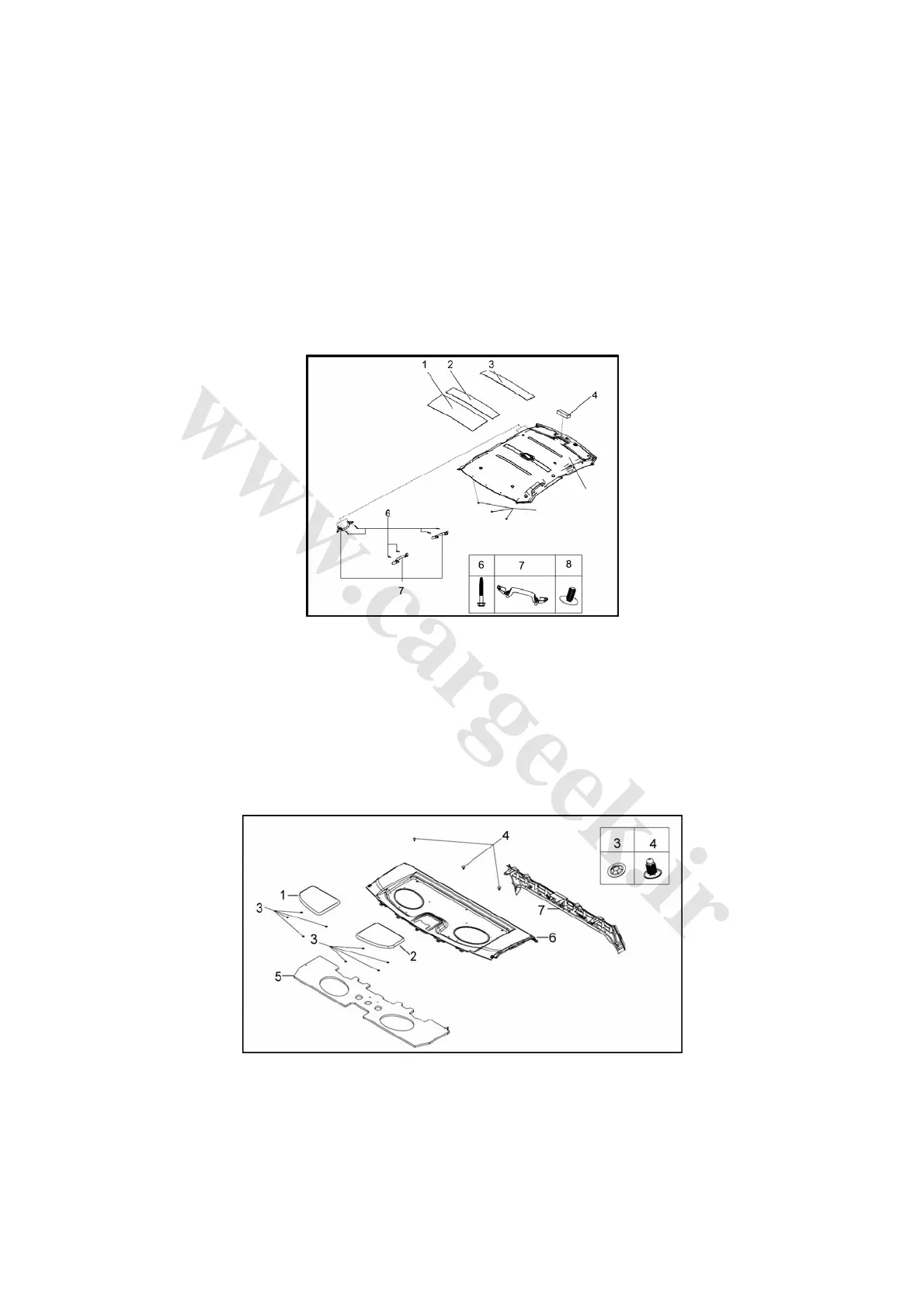

As shown in Fig. 7-21, first remove the A, B, C pillars, dismantle the roof light, sun visor and the
inner rearview mirror, remove 8 with the buckle clamp, and dismantle 6 with the sleeve, take out of
7 buttressing the roof and then the roof can be removed. Meanwhile, 1, 2, 3 will be adhered on the
roof metal sheet.
Fig. 7-21
1. Roof rear heat-insulating pad 2. Roof middle heat-insulating pad
3. Roof front heat-insulating pad 4. Roof guard panel front heat-insulating pad
5. Roof guard panel 6. Installing bolt
7. Roof armrest 8. Roof fixing buckle
II. Rack board, as shown in Fig. 7-22
Fig. 7-22
1. Rack board upper guard panel left audio cover 2. Rack board upper guard panel right audio cover
3. Audio cover installing buckle 4. Guard panel installing buckle
5. Rack board felt pad 6. Rack board upper guard panel
7. Rear seat ornament board
