Lifan 620 - Sketch Map of Wiper Motor; Circuit Maintenance of Wiper and Washer System; Map of Harness End Interface

Fig. 4-95
Spraying position adjustment: a=485mm b=675mm c=450mm d=330mm e=530mm f=500mm
g=210mm h=245mm
Spraying position adjustment area: a 60×60 square area

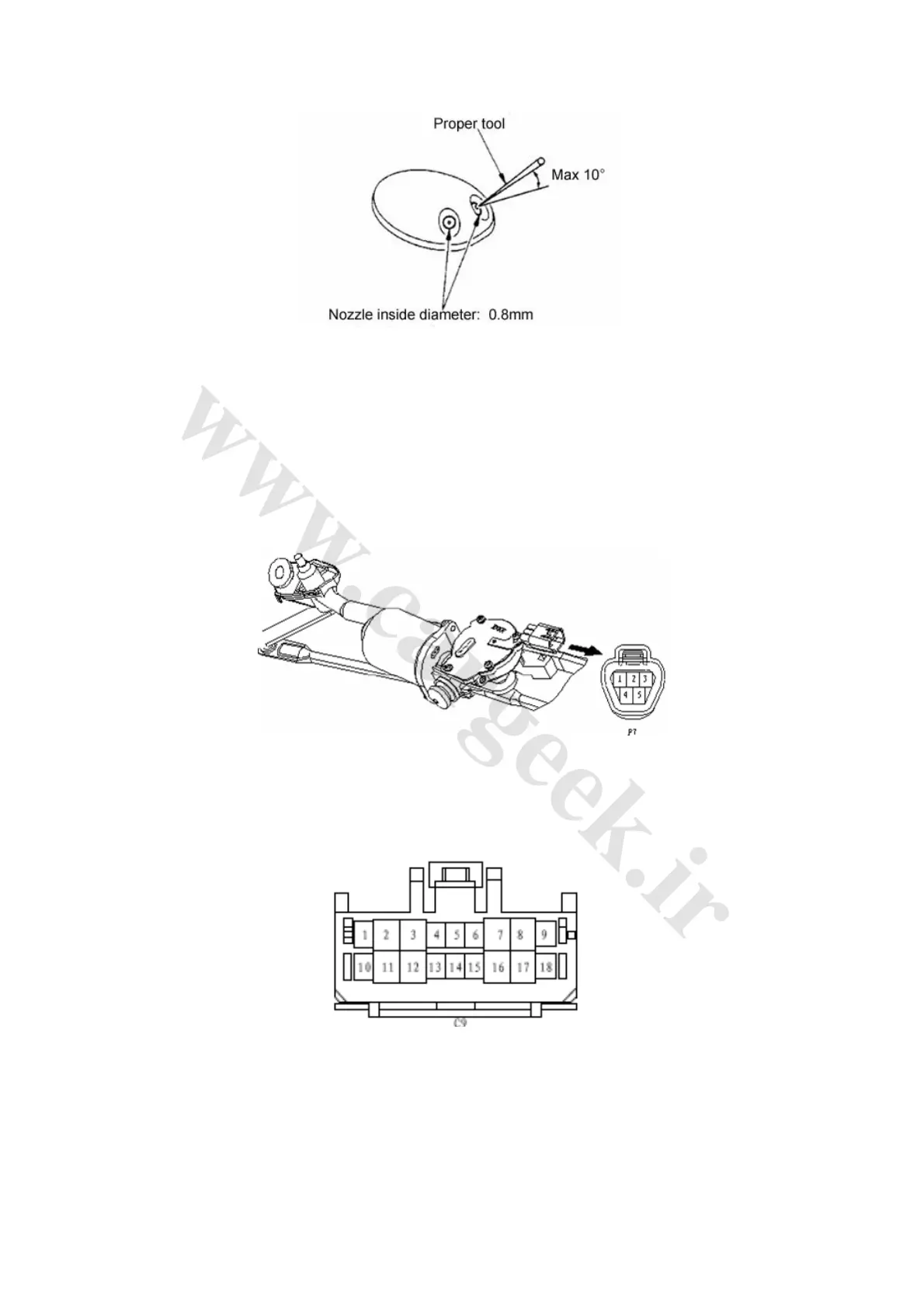

Use the special tool (a thin probe) for nozzle
Adjustment scope: ±10°
4. Sketch map of wiper motor as shown in Fig. 4-96
Fig. 4-96
III. Circuit Maintenance of Wiper and Washer System
1. Map of harness end interface. See Fig. 4-97, 4-98 and 4-99 and Table 4-15, 4-16 and 4-17.
Fig. 4-97
248
