Install the new washer and hose by ② joint bolt. Tightening torque: 30N·m. Note: Secure the hose
tightly in the locking hole of the brake slave cylinder.
10) Discharge the air in the brake slave cylinder.
11) Discharge the air in the brake pipeline.
12) Check if there is brake fluid leakage.
13) Install the front wheel. Tightening torque: 103N·m.
2. Inspection of rear brake gear

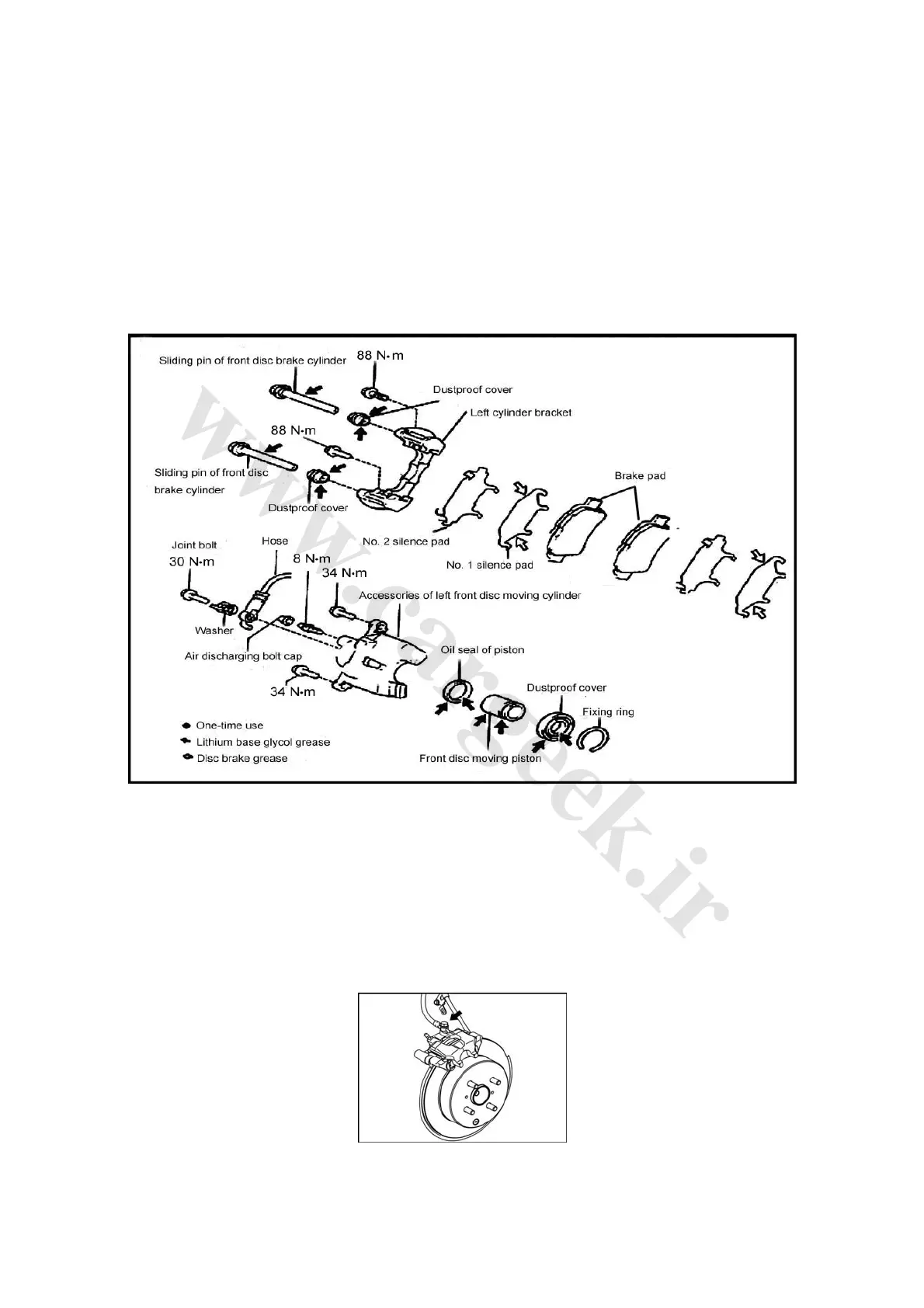

Disassembly Diagram of rear brake gear components.
See Fig. 2-60.
Fig. 2-60
(1) Disassembly
1) Remove the rear wheel.
2) Discharge the brake fluid.
Note: Do not splash the brake fluid on the paint, otherwise wash it immediately.
3) Dismantle the slave cylinder of the rear disc brake.
Remove the joint bolt and washer from the slave cylinder of the rear disc brake, and then ①
disconnect the hose. See Fig. 2-61.
Fig. 2-61
