4. DTC Table
(1) DTC content is in Table 3-8.
(2) See Table3-9, Table 3-10, Table 3-11, Table 3-12, Table 3-13, Table 3-14 and Table 3-15 for
DTC Table.
Table 3-8
DTC Content DTC Content
C1 200 Left front sensor open/short circuit C1 206 Left rear sensor open/short circuit
C1 201 Left front sensor or gear ring disturbance C1 207 Left rear sensor or gear ring disturbance
C1 202 Left front sensor air gap error C1 208 Left rear sensor air gap error
C1 203 Right front sensor open/short circuit C1 209 Right rear sensor open/short circuit
C1 204 Right front sensor or gear ring disturbance C1 210
Right rear sensor or gear ring
disturbance
C1 205 Right front sensor air gap error C1 211 Right rear sensor air gap error
C1 101 Too high battery voltage (17V above) C2 112 Fault in solenoid valve fuse or relay
C1 102 Too low battery voltage (9.4V below) C2 402 Fault in motor fuse or motor
C1 604
Fault in ECU internal circuit or solenoid
valve coil

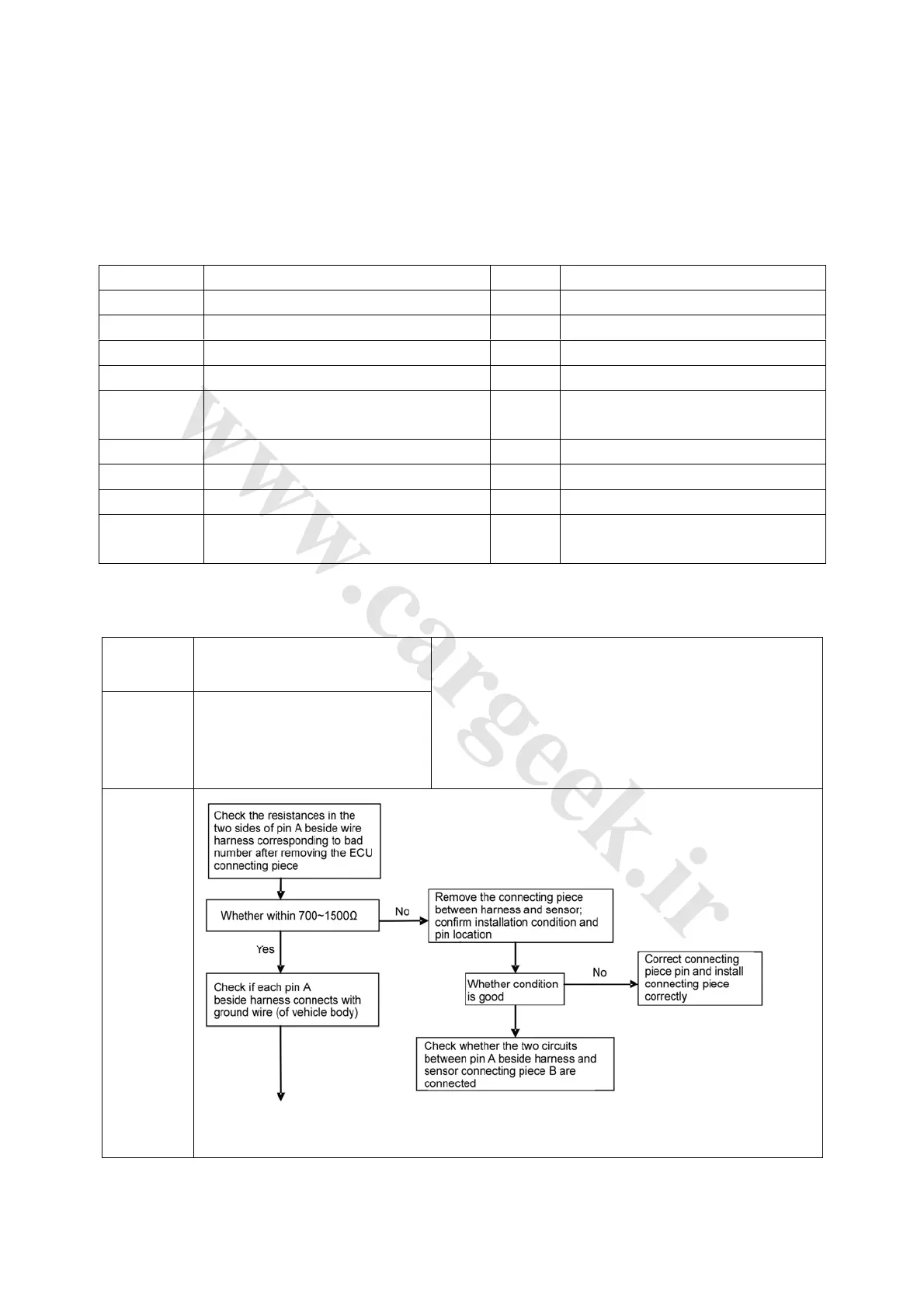

Table 3-9
DTC
C1 200 C1 203
C1 206 C1 209
Sensor open/short circuit: fault due
to sensor battery positive or
negative pole short circuit or open
circuit
Note: If faults corresponding to more than 2 DTC can be
confirmed, delete the DTC (that can be deleted), drive the
vehicle at a speed of over 40 km/h, confirm the fault
corresponding to this DTC again and refer to the recorded
DTC (and confirm the same DTC).
Cause
Elimination
procedure
