Section III Safety Belt
Note:
(1) The fasteners removed must be reinstalled in the original position. If any fasteners need
renewing, the ones with the same part No. are required. However, if there is no such fastener with
the same part No., the ones with the same dimension and intensity (or higher intensity) are
acceptable. The non-recyclable fasteners and the ones need locking by the screw thread, shall be
eliminated from the car. If reinstalling fasteners with designated tightening torques, fasten them to
the given torques. Violating the requirement above may cause the damage of the components or
the system.
(2) The safety belt and its auxiliary components may influence the key components and the
system. Therefore, carefully checking and renewing with the components from the original
manufacturer are necessary.
(3) If it is necessary to renew the safety belt, renew the buckle lock and belt together, to ensure the
inosculation between the lock tongue and the buckle lock.
I. Front seat safety belt
1. Removal: As shown in Fig. 7-3

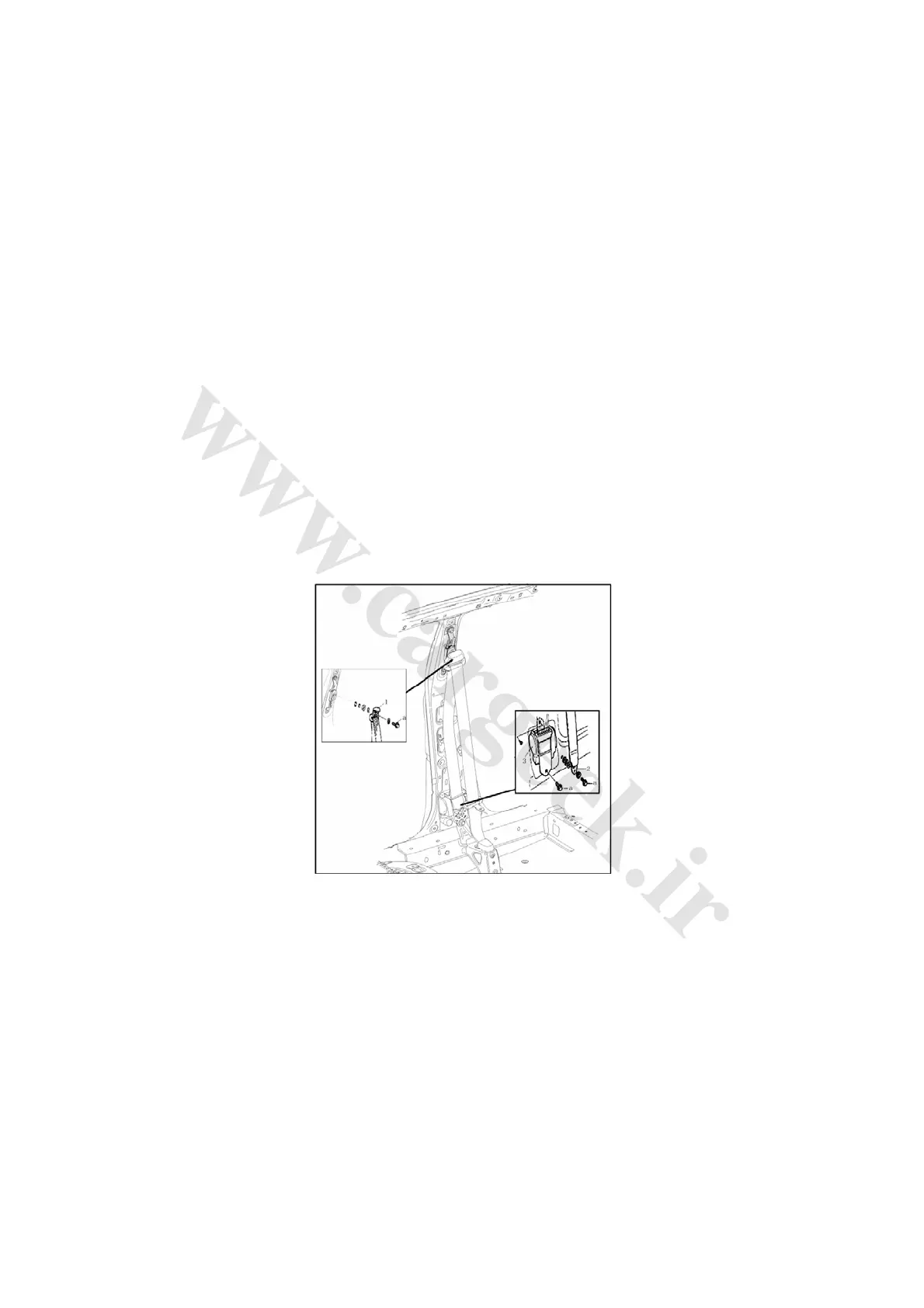

Fig. 7-3
a. Bolt tightening torque: 45N·m
1. Upper fixing bolt 2. Lower fixing bolt 3. Tensioning retractor
(1) Disconnect the cathode cable from the battery.
(2) Deactivate the air bag system.
(3) Remove the B pillar guard panel assembly.
(4) Remove the safety belt assembly from the vehicle body.
2. Installation: The process of installation is opposite with that of removal; however, the following
points must be taken into consideration:
(1) The bolt for fixing the safety belt ring shall be the British system fine screw thread
(7/16-20UNF). The screw thread with different dimension or metric screw thread will be never
