IV. Rear side door guard panel
1. Installation of rear side door

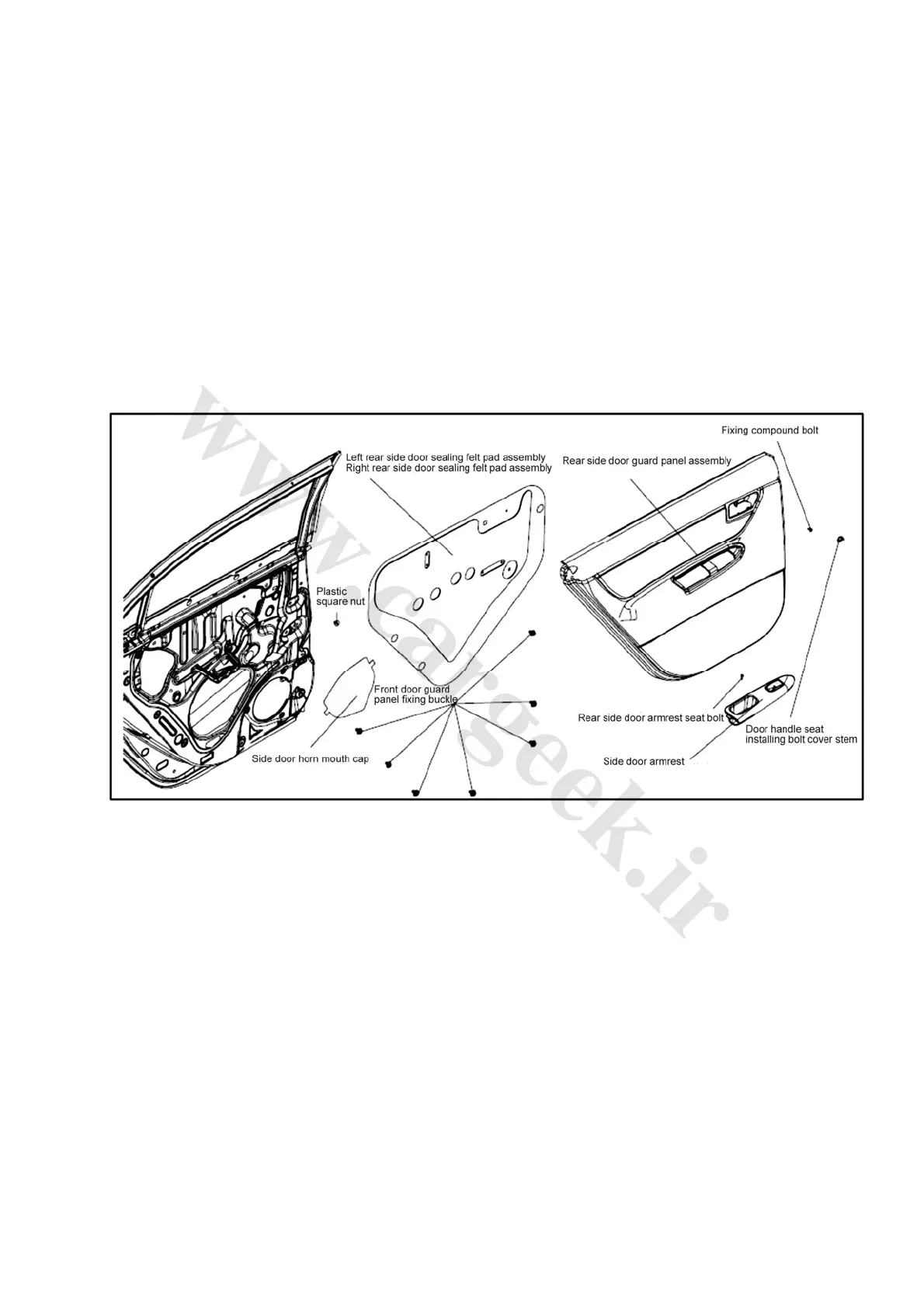

① Glue the door horn mouth cap to the lower side round mouth at the position as shown in the
figure.
Glue the rear side door sealing felt pad assembly on the door inner metal sheet and after ②
confirming that its hole position directly faces with that of the metal sheet, press them tightly.
Install the armrest seat ③ installing bracket.
Confirm the non④ -installation of the inner handle installing bolts, install seven door plate fixing
buckles on the door plate bracket. Put the upper body buckle seat into the place between the door
plate and the glass first. As shown in Fig. 7-24: then lead the buckle to aim at the installing hole of
the buckle and press the buckle in; after this, the door guard panel is installed on the door inner
plate.
Fig. 7-24
Ins⑤ tall the inner handle cover stem after the installation of the bolts.
After installing the harness on the corresponding armrest seat of the door plate, fix the rear side ⑥
of the armrest seat in the installing hole of the door plate first and then press the snap spring at the
front side into the installing hole of the door plate. Firm the armrest seat with the armrest seat
bolts.
