Section VI Intake and Exhaust System
I. Air Cleaner Assembly

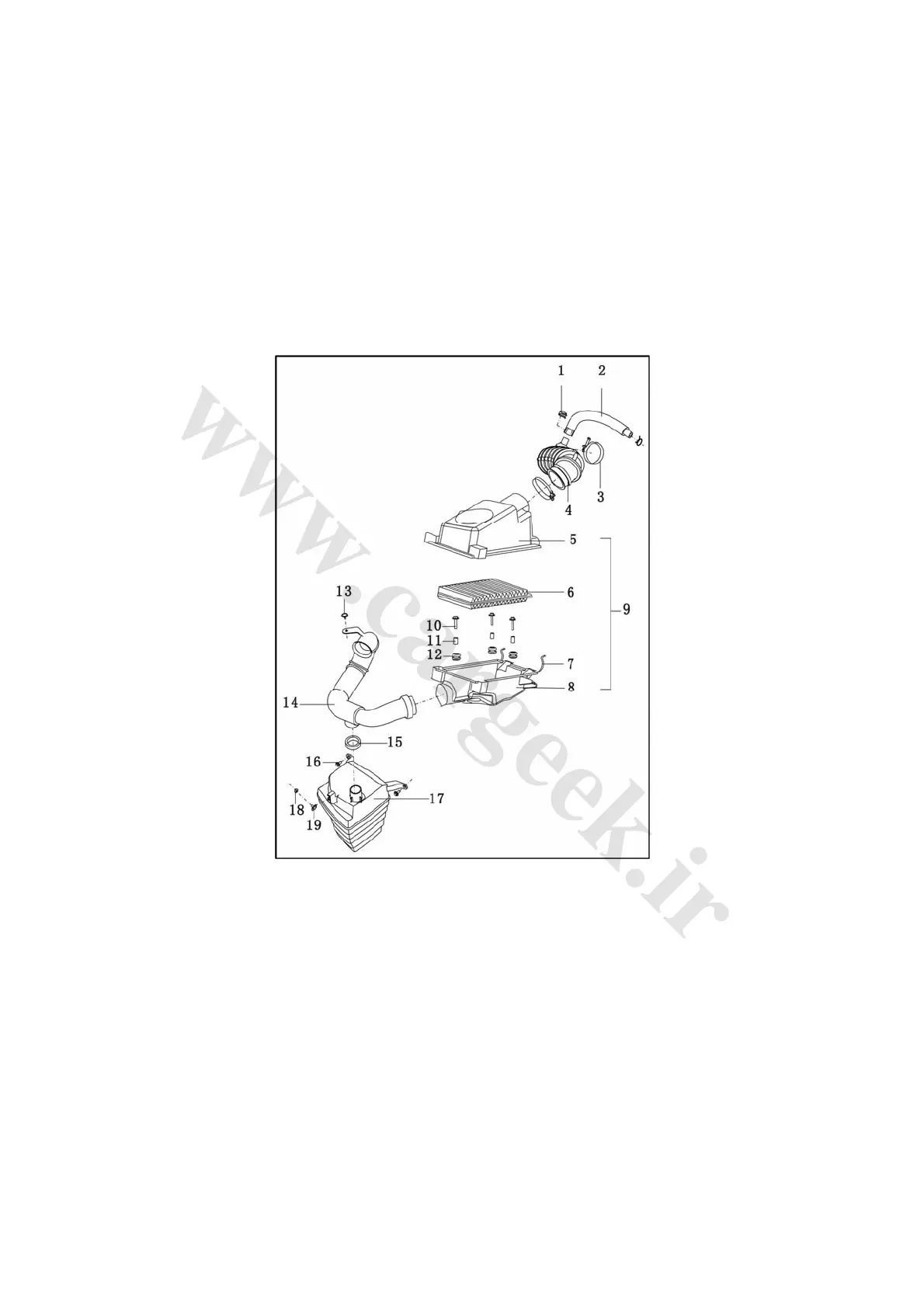

Removal and installation (Fig. 2-82 shows the air cleaner assembly of sedan with TRITEC1.6L
engine).
Note: The filter core is made from waste paper and resin. Notes for operation:
Do not inflict severe collision and load after assembly and removal.①
② The core should be well cooperated with the housing below the air cleaner during assembly.
Fig. 2-82
1. Steel band type flexible ring clamps 2. Crankshaft ventiduct
3. B-type worm-driven hoop 4. Engine intake hose assembly
5. Air cleaner upper cover 6. Air cleaner filter core components
7. Spring clip 8. Air cleaner lower cover
9. Air cleaner assembly 10. Hexagon bolt with flat washer
11. Liner tube 12. Anti-vibration pad
13. Snap button 14. Air cleaner intake pipe assembly
15. Spongy cushion of cavity resonator 16. Hexagon flange bolt
17. Cavity resonator assembly 18. Hexagon flange nut
19. Bearing weldment bolt
