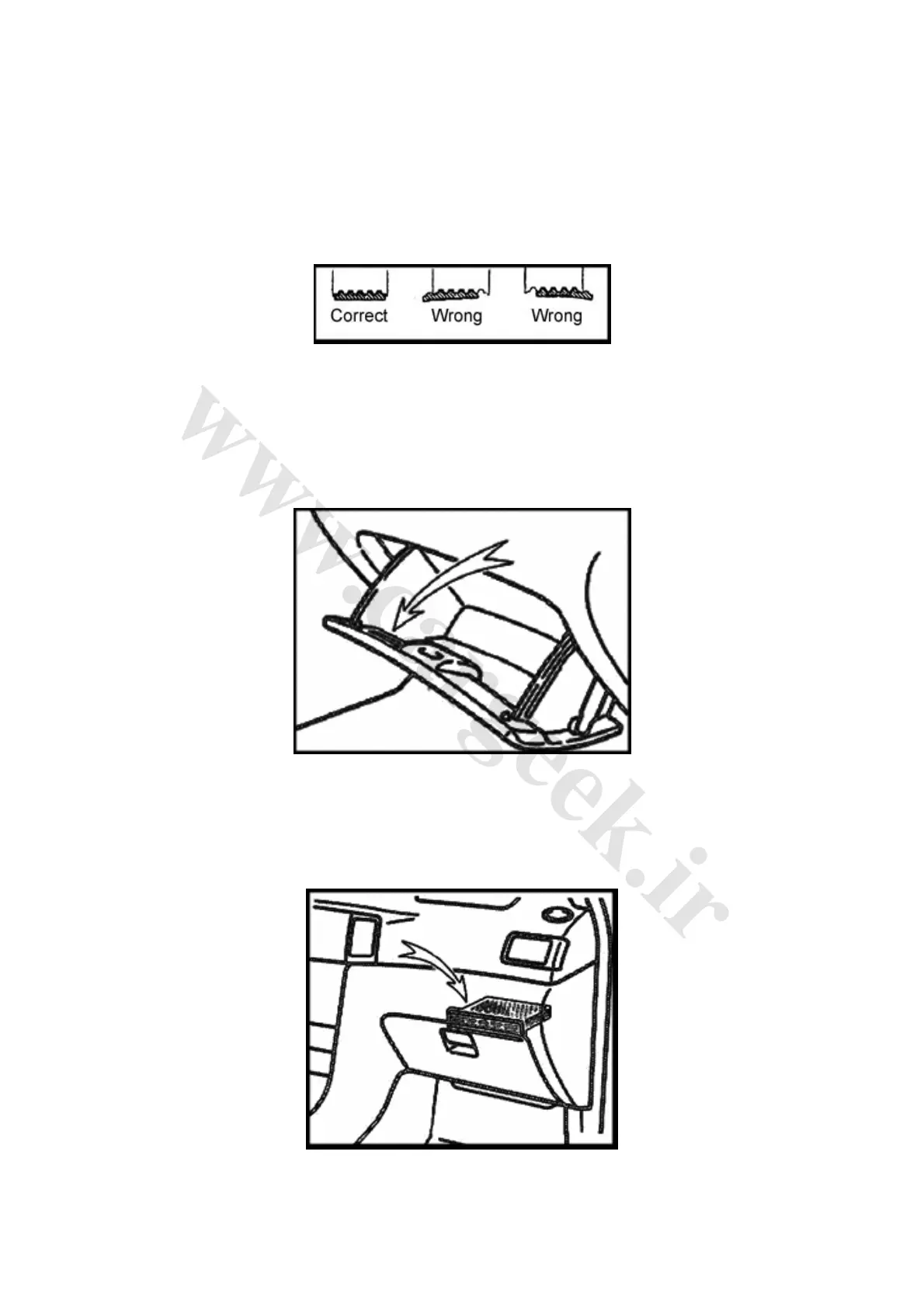

II. Inspection of air conditioner compressor belt
New belt is that used on the engine for not more than 5 min. Used belt is that used on the engine
for more than 5 min. Install the drive belt and check whether the belt is well contacted with the belt
groove (Figure 6-11).
Check whether the belt slides in the belt groove by hand.
Figure 6-11
III. Inspection of air filter
1. Remove sundries box as shown in Figure 6-12. For detail, please refer to the removal method of
sundries box.
Figure 6-12
2. Take out the filter as shown in Figure 6-13.
Figure 6-13
