Lifan 620 - Electrical Air Conditioning Controller

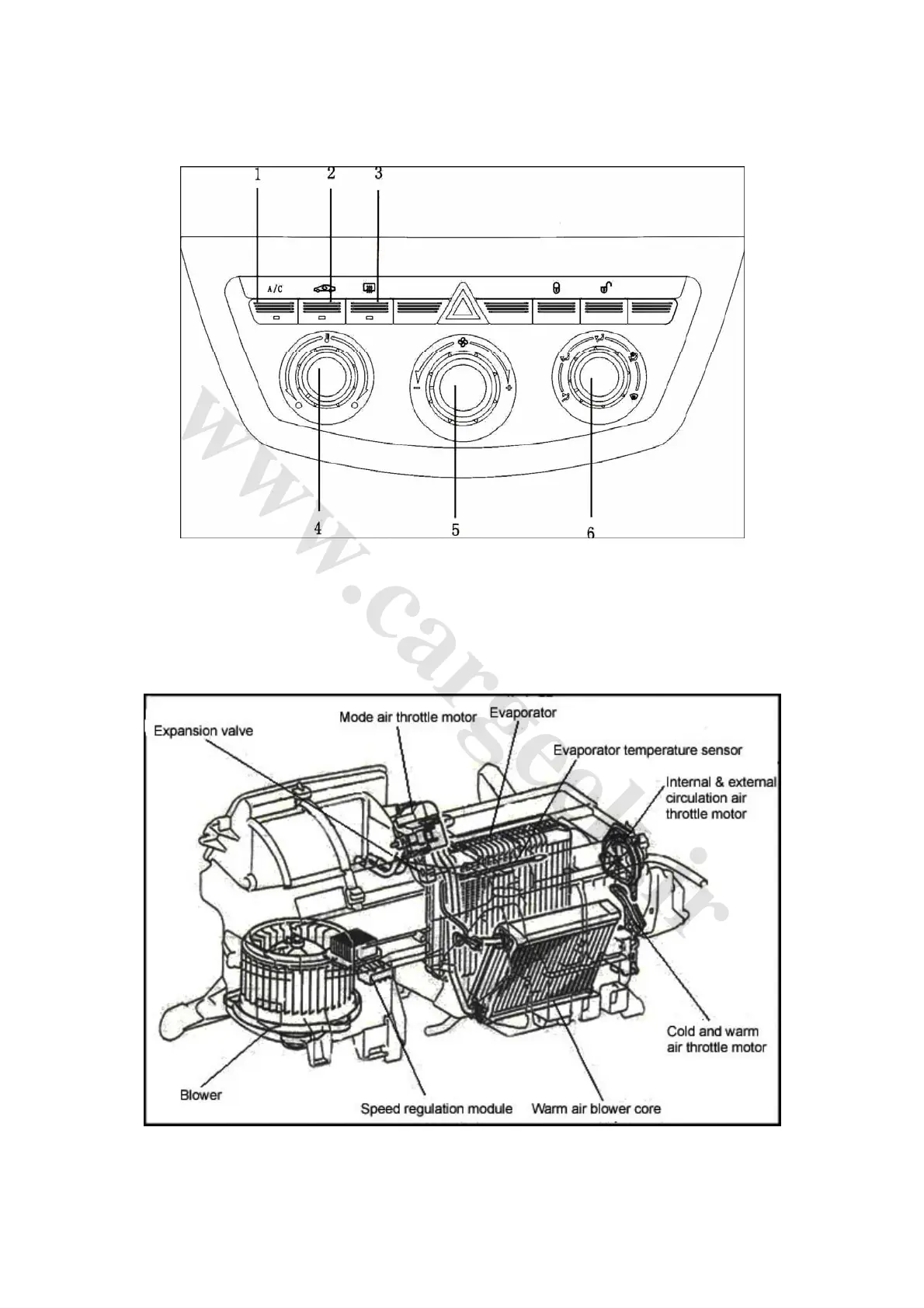

Electrical air conditioning controller, as shown in Figure 6-7.
Figure 6-7
1. “A/C” switch 2. Internal and external recycling modes option button
3. Cool/warm wind regulation knob 4. Air regulation knob 5. Air blowing mode option knob
Heating and air conditioning electronic control system layout 2 (Figure 6-8)
Figure 6-8
294
