Table 4-10
Testing terminal Wire color Terminal description Test condition Standard value
(2-1)－body
U/W
Unlocking of central
control switch
Active low Less than 1Ω
(2-2)－body
G/U
Locking of central
control switch
Active low Less than 1Ω
(2-17)－body
W
Remote control
receiving antenna of
BCM
Always Less than 1Ω

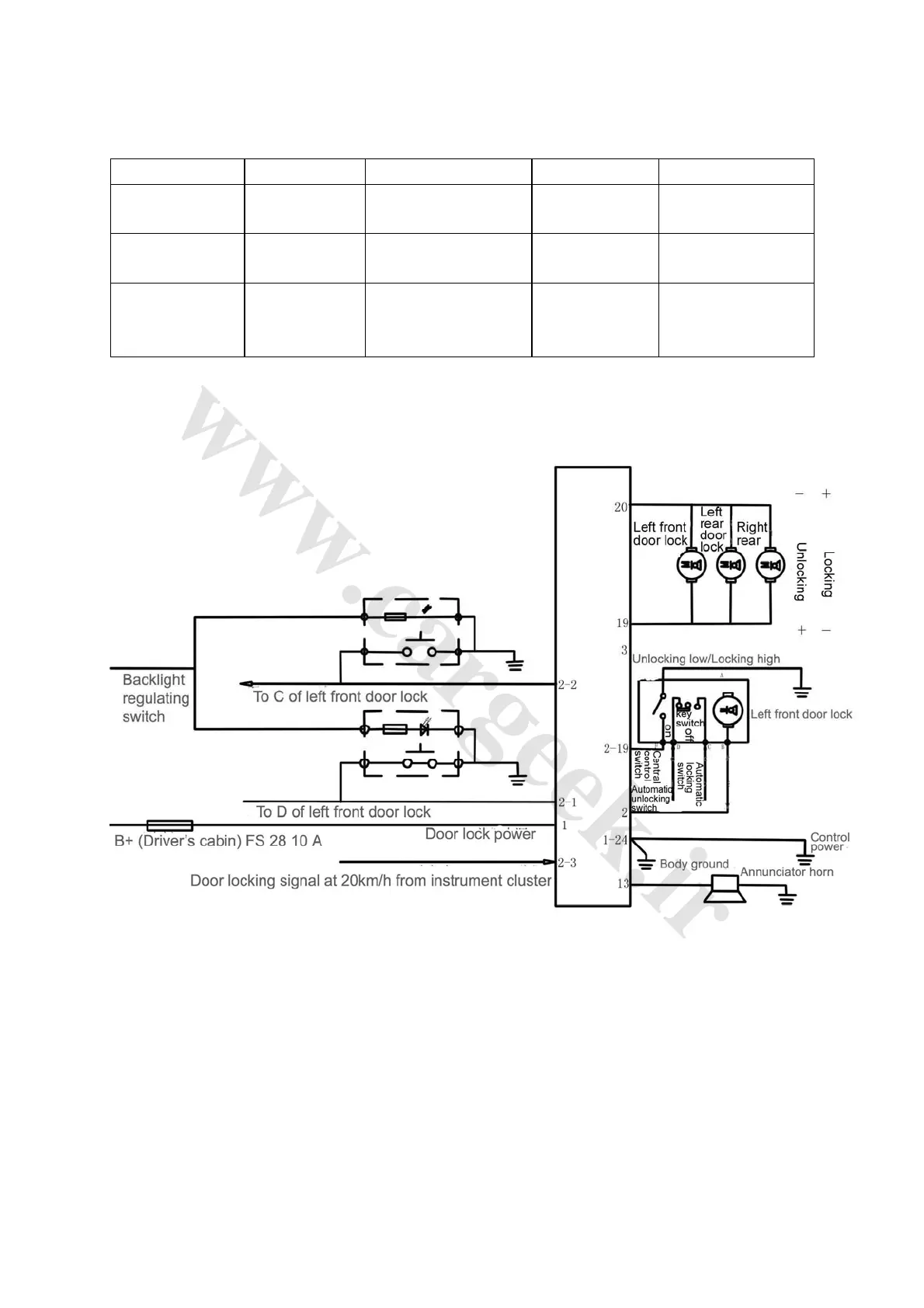

IV. Circuit check
(Fig. 4-50)
Fig. 4-50
V. Burglar alarm
During alert state, if the key is inserted into ignition lock, ignition switch short-connected, four
doors and backdoor open, then the fuel control output is inactivated, the annunciator sounds
continuously and steering light flashes; after 20 seconds, the annunciator stops, only flash
continues; after another 10 seconds, flash stops; alarm can only be stopped by pressing unlocking
key, after which, the ignition switch recovers its control over oil passage.
For central lock trouble symptoms of body control module, refer to Table 4-11.
