Table 4-9
Testing
terminal
Wire
color
Terminal
description
Test condition
Standard
value
(1-1)－body
B/R
Extended
illumination
control output of
inner light
When roof light is at “DOOR” position, the roof
light is lit upon unlocking by remote controller or
opening of any door. If no door is opened within
30 seconds after unlocking by remote controller,
it goes out, and refer to the user’s guide to find
more.
Less than 1 V
(1-2)－body
Y/G
Keyhole
illumination
control output
If open the left front door when the ignition key is
pulled out, the key ring indicator will be lightened
for 30 seconds, if the left front door is closed
within 30 seconds, the key ring indicator will be
lit for another 15 seconds and go out; upon key
inserted into ignition lock, the indicator goes out
immediately; after the key is pulled out, the
indicator is lightened, and goes out after 15
seconds. Refer to the user’s guide to find more.
Less than 1 V
(1-4)－body
V/G
Fuel relay control
line +
Before engine start → After engine start
Less than
1V→10～14V
(1-20)－body
B/Y Locking by key Active low Less than 1Ω
(1-22)－body
W/Y Unlocking by key Active low Less than 1Ω

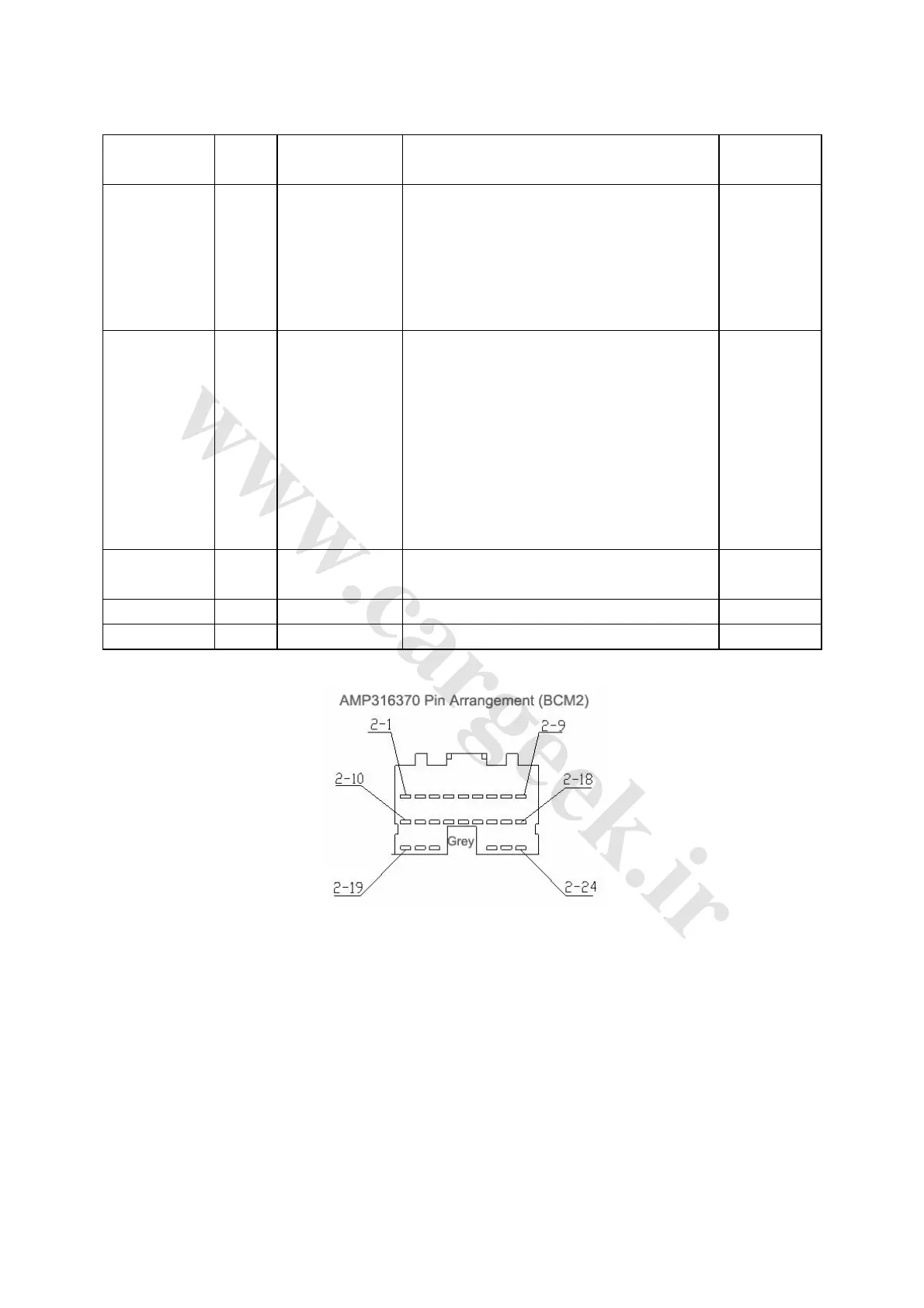

Fig. 4-49
