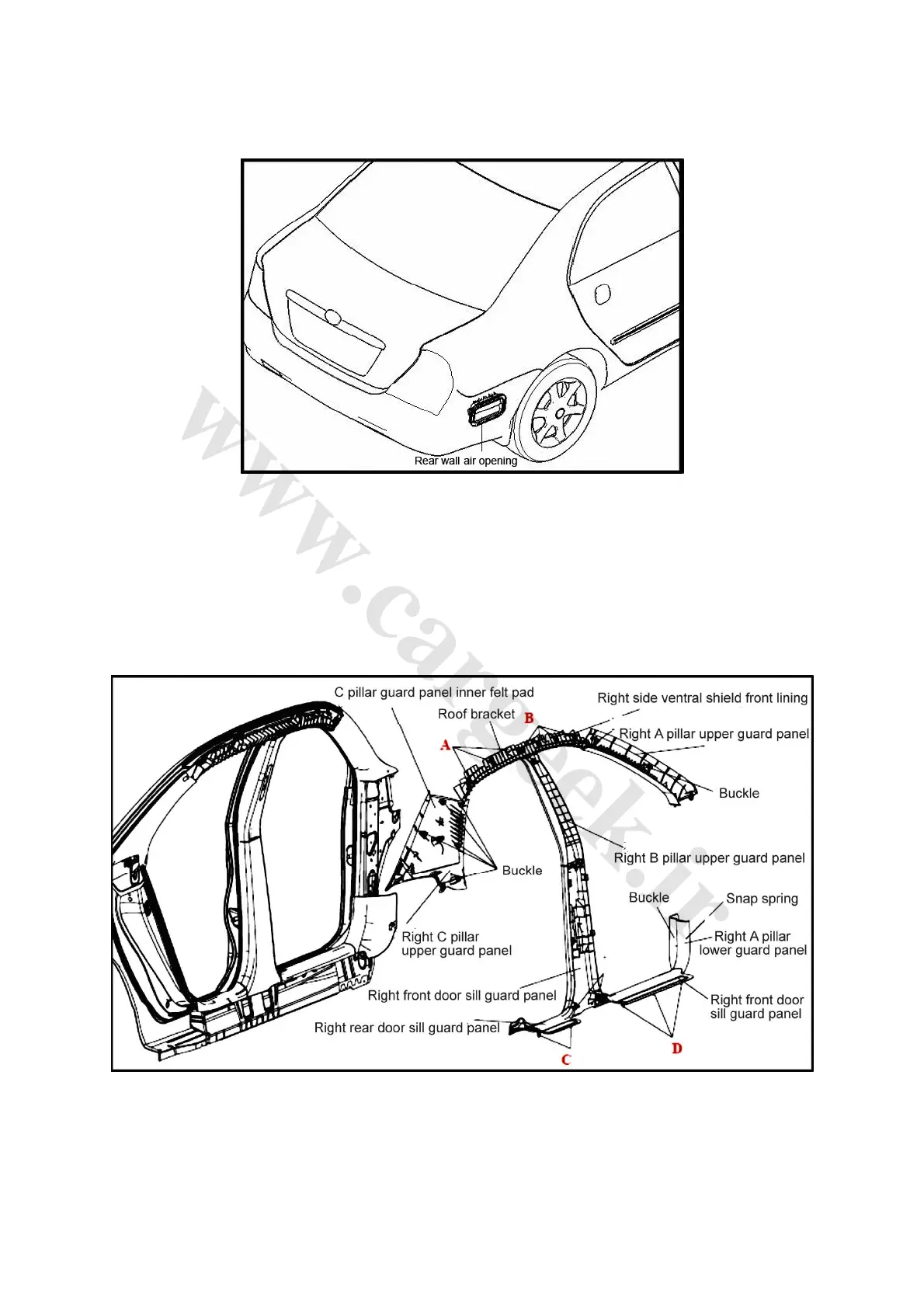

Removal of rear wall air opening, as shown in Fig. 7-26.
Fig. 7-26
The four buckle corners of the air opening will be unveiled after the other components of the rear
wall are removed. Support the buckle corners with hands or tools to push them outward and the
rear wall air opening will be dismantled.
VI. Side wall
1. Assembly of side wall, as shown in Fig. 7-27.
Fig. 7-27
(1) The front and rear linings of the ventral shield are fixed on the body through 4 places (A in the
Fig.) and 3 places (B in the Fig.) respectively. During the installation, fix the buckles in the buckle
holes directly and then install the roof. After that, the A, B, C pillar guard panels can be installed.
