IV. Components and maintenance of the rear seat assembly

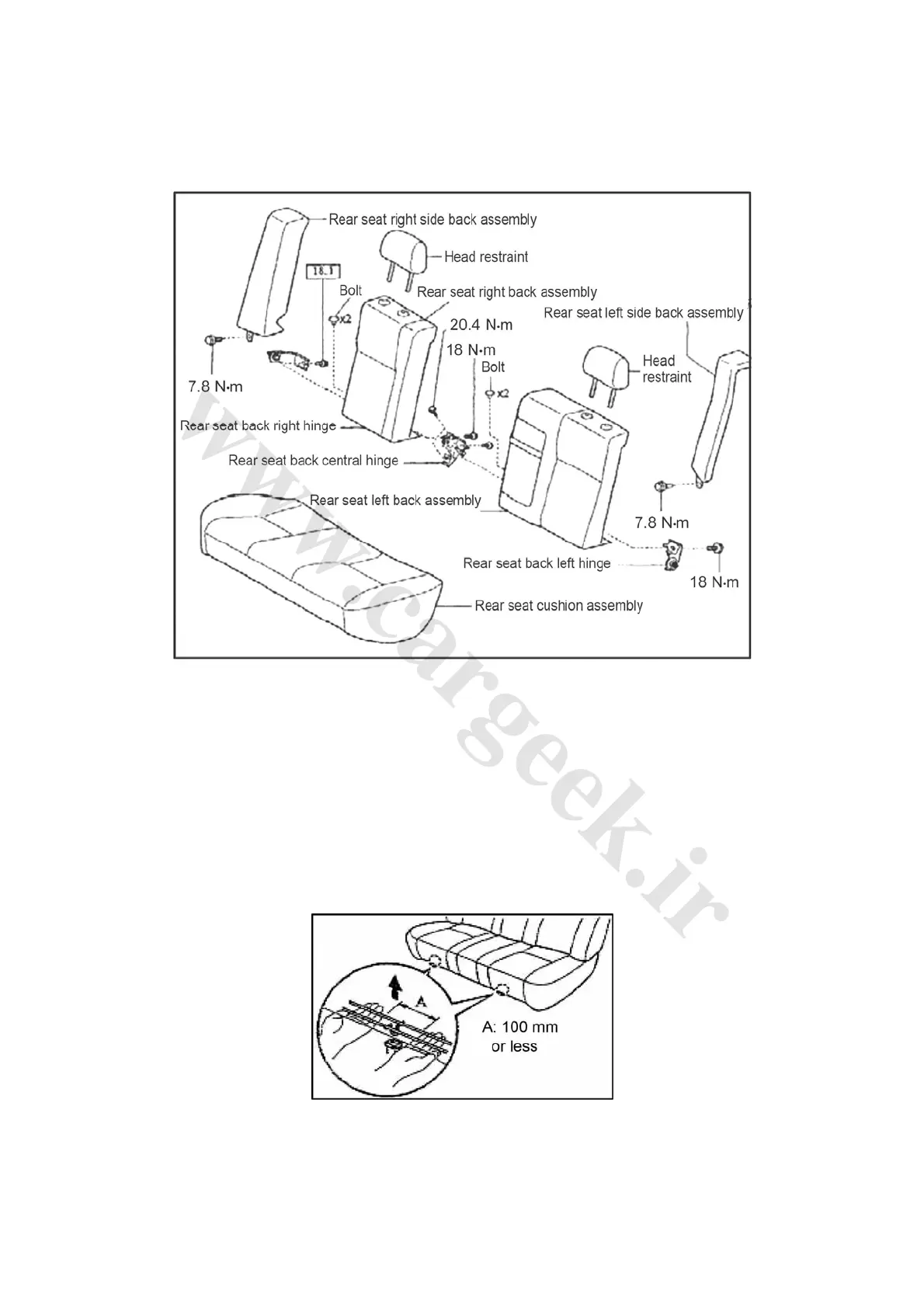

1. The assembly structure as shown in Fig. 7-9.
Fig. 7-9
2. Removal
Note:
The process of installation and that of removal are reverse. Therefore, only the extra steps of the
installation will be referred.
(1) Remove the head restraint.
(2) Seat cushion assembly, pull upwardly the two bulging parts in the front of the seat cushion and
remove them, as shown in Fig. 7-10.
Fig. 7-10
Note: The pad bracket is easy to be deformed. In order to avoid the deforming, make sure the
hands beside the two pothooks as shown in the Fig.
