tightening torque reading at the fifth turn. Tightening torque: 0.05～1.98Nm.

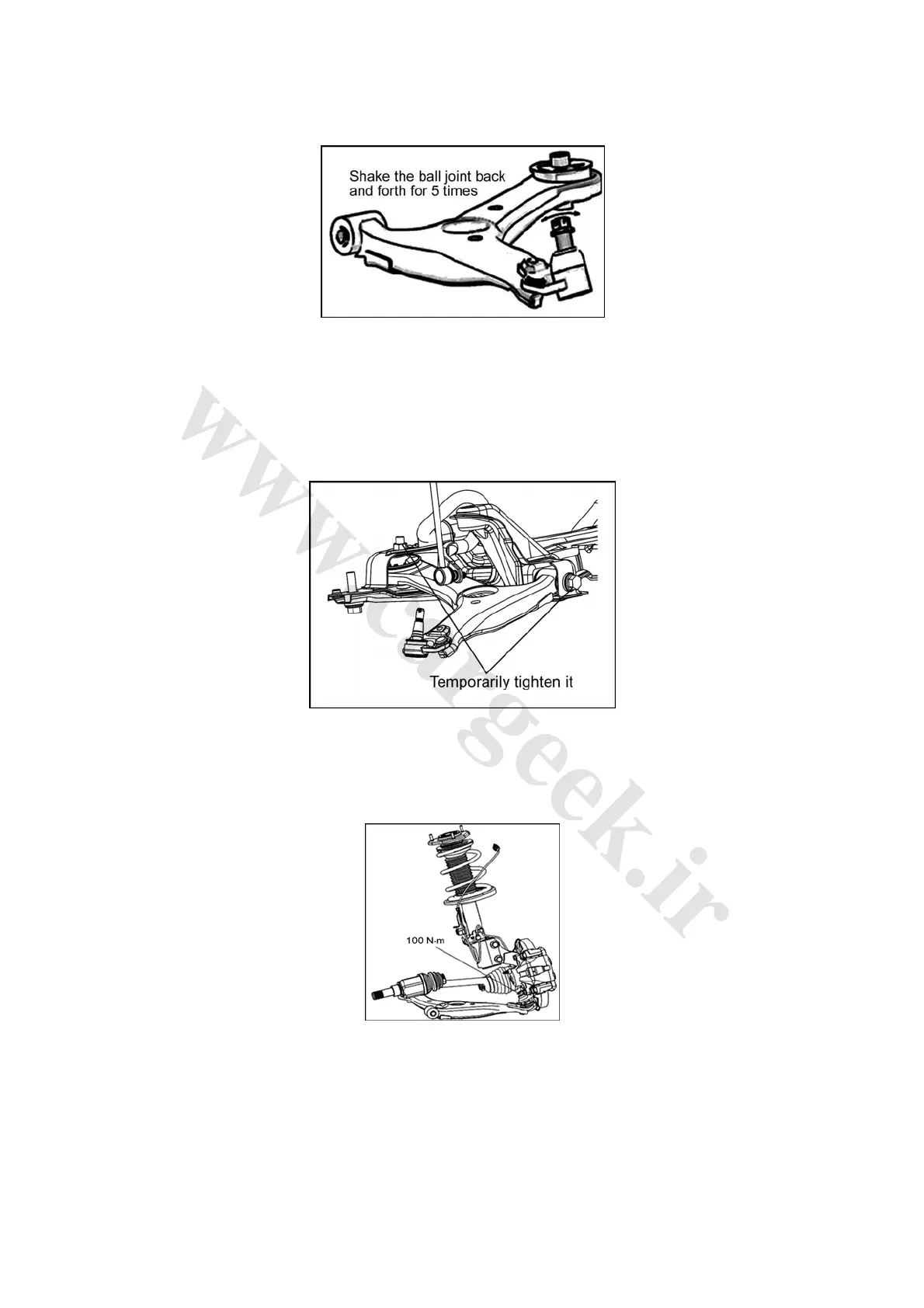

Fig. 2-16
(2) Installation
1) Temporarily screw down the front suspension lower arm assembly. Fasten the front suspension
lower arm assembly by 2 bolts and nuts. No need to use torque tools, as shown in Fig. 2-17.
Fig. 2-17
2) Install the front suspension lower arm onto the steering knuckle by nuts. Tightening torque: 100
N·m
. Follow Fig. 2-18.
Fig. 2-18
3) Install the cotter pin. Note: In case that the hole of cotter pin is not correctly aligned, please
further tighten the nut according to the hole of cotter pin.
4) Fully tighten the front suspension lower arm assembly. Secure the lower arm by 2 bolts as
shown in Fig. 2-17.
