2. Front and rear cables support
3. Parking brake cable
1. Fault elimination
Table 2-5
Fault Possible Cause Action
Inactive parking
brake
1. Parking brake cable
2. Parking brake control
1. Check the parking cable and
adjustment
2. Check the parking brake control
Unreleased parking
brake
1. Parking brake cable
2. Parking brake control
2. Check the parking cable
2. Check the parking brake control
1) Parking brake rod play (maladjusted) Adjust it
2) Parking brake cable (blocked) Adjust it
3) Parking brake shoe clearance
(maladjusted)
Adjust it
4) Parking brake lining (cracked or
distorted)
Replace it if necessary
Blocked brake
5) Pull-back or tensioned spring
(broken)
Replace it
Table 2-5 indicates the possible causes for faults. The figure indicates the sequence of the
possible faults. Inspect all components in order and replace them if necessary.
2. Adjustment
(1) Remove the rear wheel.
(2) Adjust the brake shoe clearance.
(3) Install the rear wheel. Tightening torque: 103N·m.
(4) Check the parking brake rod play. Hold the rod and count the number of clicks. Parking brake
rod play: 6-9 clicks under 200N force.
(5) Adjust the parking brake rod play. See Fig.2-72.

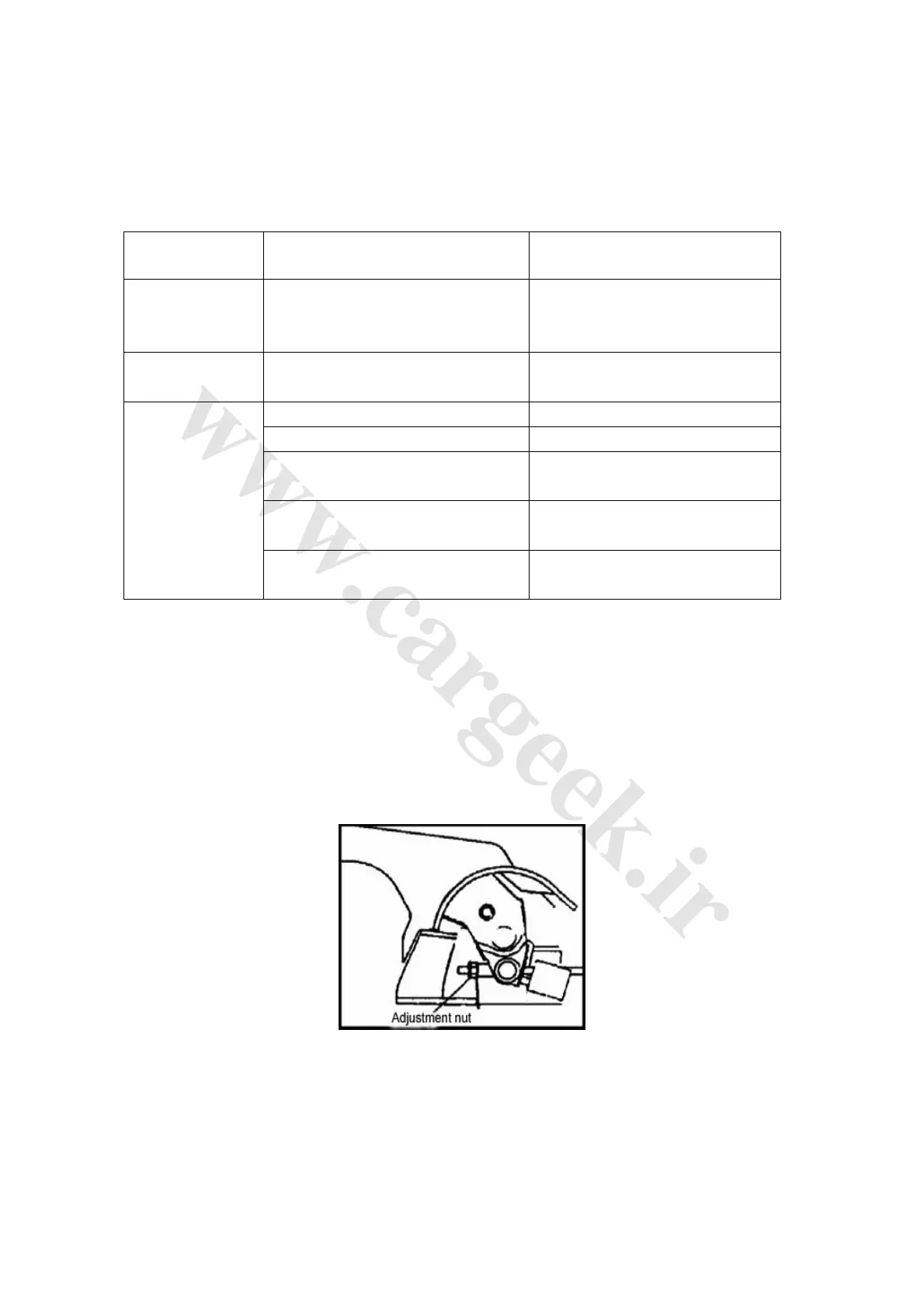

Fig. 2-72
1) Remove the glove box cover.
2) Rotate the No. 1 adjustment nut cable until the pulling rod play is normal.
3) Install the glove box cover.
3. Accessories of parking brake rod
Disassembly of parts and components as shown in Fig. 2-73
