Section VI Seat Assembly
I. Structure of the driver seat assembly:

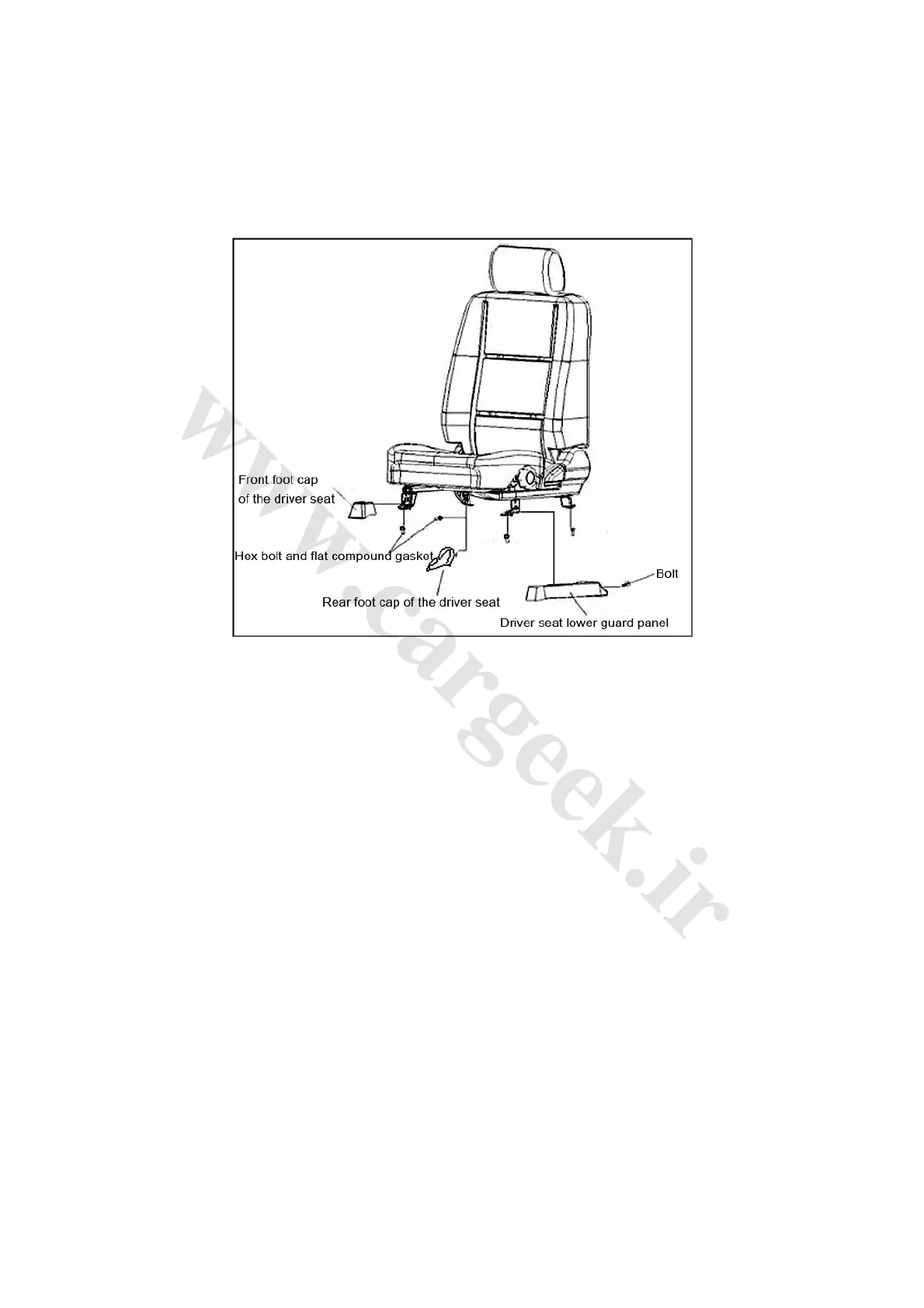

The assembly structure as shown in Fig. 7-7.
Fig. 7-7
Fix the bolt at the torque of 20.4N·m
II. Components and maintenance of the driver seat:
Note: The process of installation and that of removal are reverse. Therefore, only the extra steps
for the installation will be referred.
1. Removal
(1) Remove the driver seat lower guard panel
Remove one① bolt;
Remove the ② driver seat lower guard panel.
(2) Remove the right front foot cap of the driver seat.
(3) Remove the right rear foot cap of the driver seat.
(4) Remove the front two bolts of the driver seat.
(5) Remove the rear two bolts of the driver seat and the whole assembly.
2. Installation
Installing as per the reverse order, and pay attention to the following points:
(1) Remove the glass frame riser switch assembly of the rear side door.
