Table 4-8
Testing
terminal
Wire color
Terminal
description
Test condition Standard value
(3-1)－body
S/B
Central lock
power
Always Less than 1Ω
(3-2)－body
Y/B
Locking of left
front door lock
Always Less than 1Ω
(3-3)－body
W/B
Unlocking of left
front door lock
Always Less than 1Ω
(3-4)－body
B Grounding Always Less than 1Ω
(3-9)－body
B Grounding Always Less than 1Ω
(3-10)－body
B Grounding Always Less than 1Ω
(3-13)－body
G/W
Annunciator
power output
When pressing the
unlocking or locking key
on remote controller (refer
to the user’s guide to find
more), intermittent
10～14V
(3-19)－body
N/G
Locking of the rest
three doors
Always Less than 1Ω
(3-20)－body
N/W
Unlocking of the
rest three doors
Always Less than 1Ω
(3-27)－body
B Grounding Always Less than 1Ω

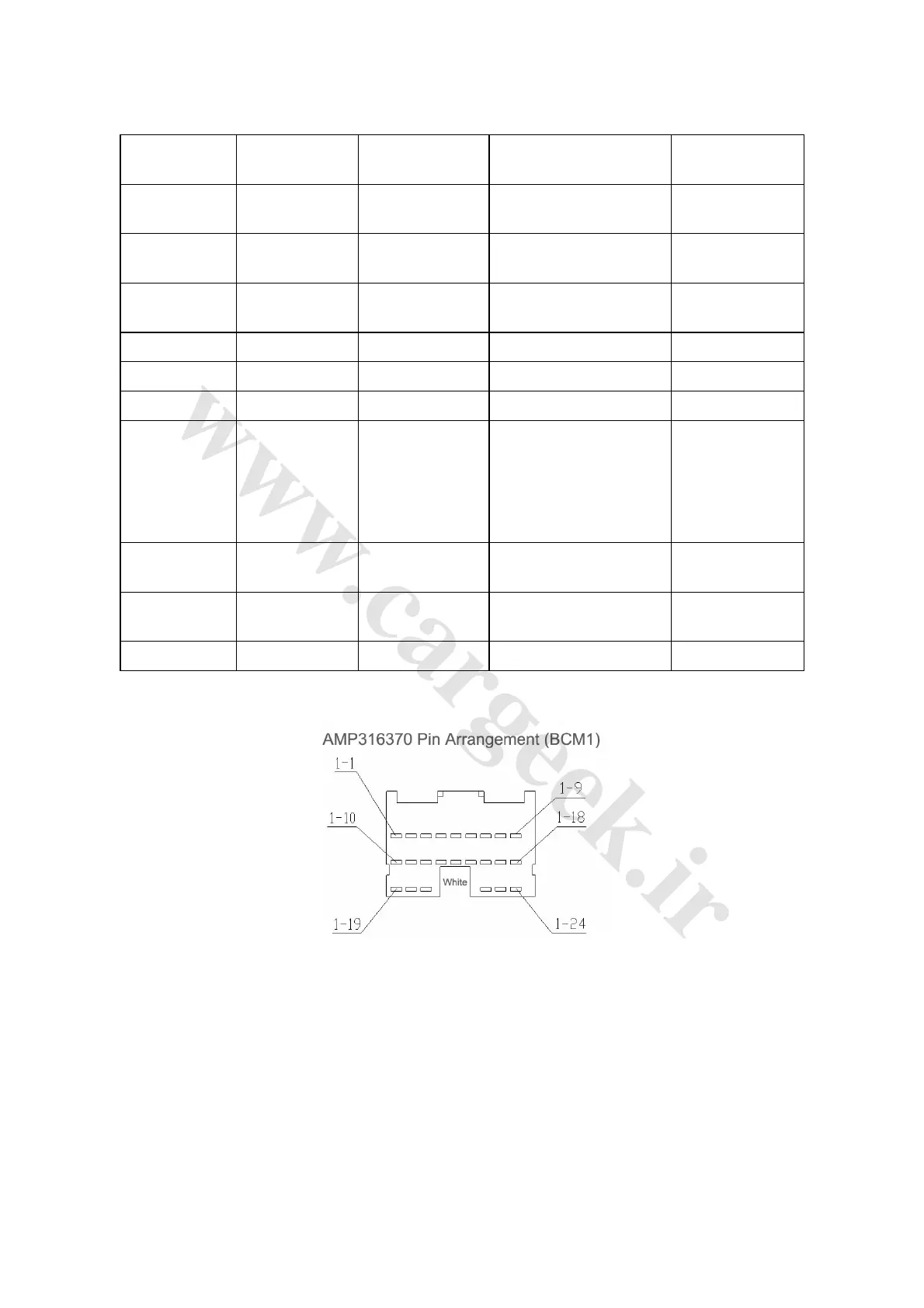

Fig. 4-48
