installation.
Torque: 9.8N·m

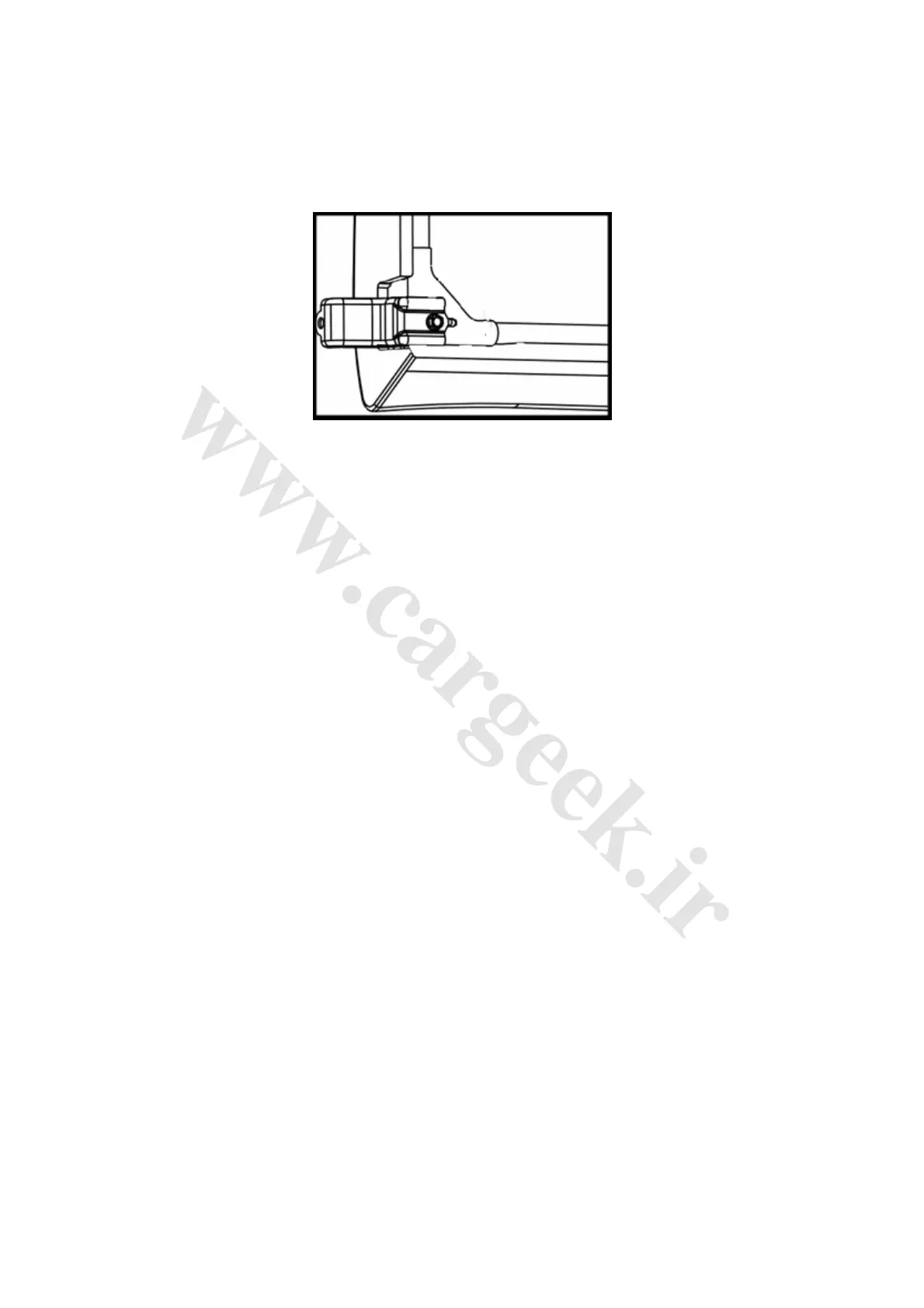

(4) Install the rear seat back pad assembly, as shown in Fig. 7-20.
Fig. 7-20
Use a side hinge flange bolt at the left side as well as the right side to install it. After installation,
the rear back pad can be turned.
Torque: 22.1N·m
Note: Check whether the side connecting plate is firm with the back pad or not before installation.
(If loose, screw it at the torque of 22.1N·m)
