(6) Remove the rear seat right side back assembly, bolts and side seat back.
Remove the bottom fixing bolts on the rear seat right side back.①
Pull out the right sid② e back.
(7) Remove the left hinge of the rear seat back, bolts and hinge.
(8) Remove the right hinge of the rear seat back, bolts and hinge.

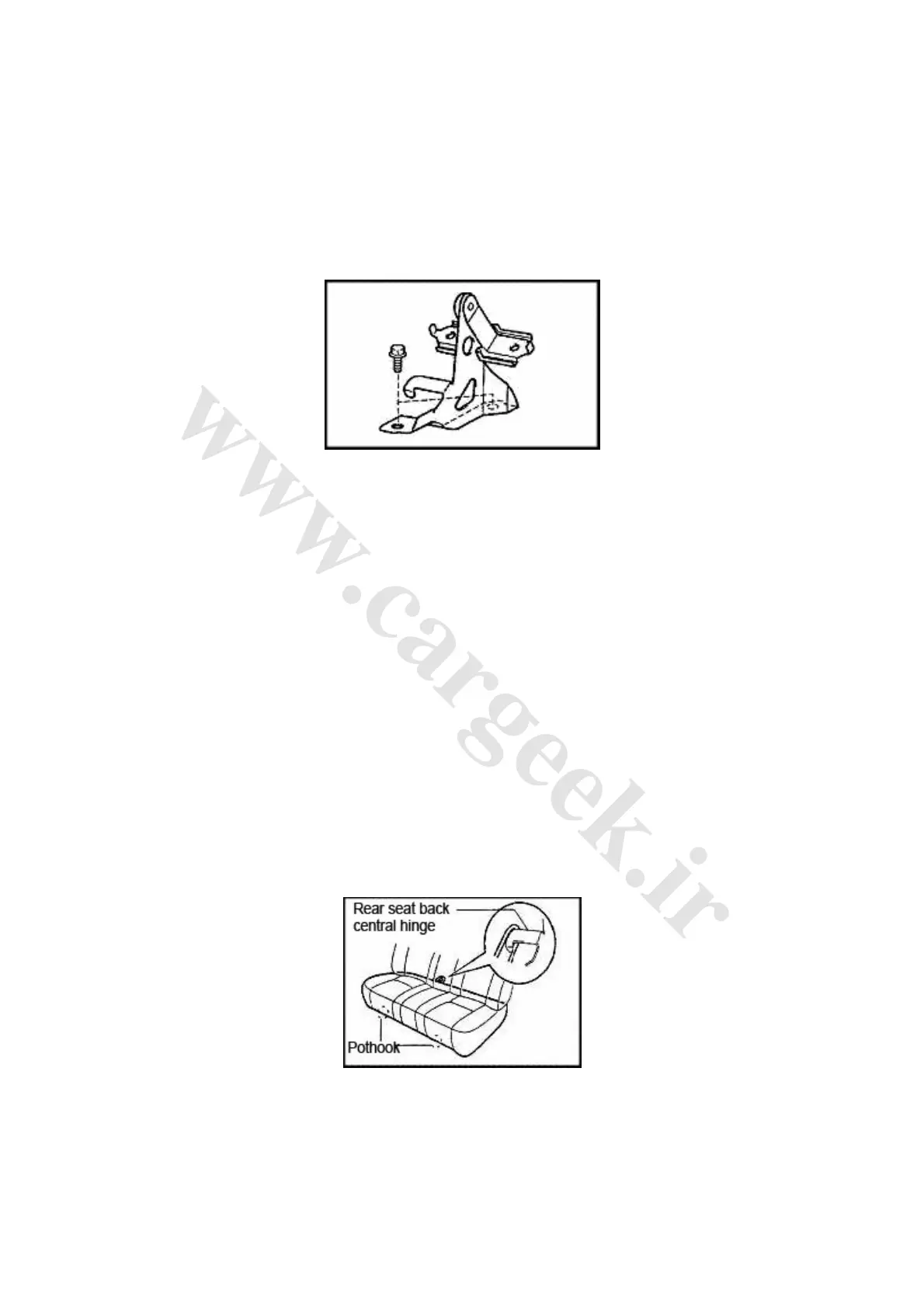

(9) Remove the central hinge of the rear seat back, as shown in Fig. 7-14.
Fig. 7-14
Remove the two bolts and ① hinge.
Take out of the hinge.②
(10) Remove the armrest assembly.
Pick up the armrest hinge ① cover with the screwdriver. Note: Encase the sharp part of the
screwdriver before working.
Remove the bolts and the armrest.②
(11) Install the central hinge of the rear seat back with two bolts at the torque of 20.4N·m.
(12) Install the left hinge of the rear seat back with bolts at the torque of 18.1N·m.
(13) Install the side back hinge of the rear seat with bolts at the torque of 18.1N·m.
(14) Install the left rear side seat side back assembly with bolts at the torque of 7.8N·m.
Note: Hang the pothook on the upper side of the side back on the body first when installing.
(15) Install the right rear seat side back assembly with bolts at the toque of 7.8N·m.
Note: Hang the pothook on the upper side of the side back on the body first when installing.
(16) Install the left rear seat back assembly with two bolts at the torque of 18.1N·m.
(17) Install the right rear seat back assembly with two bolts at the torque of 18.1N·m.
(18) Install the rear seat cushion assembly, as shown in Fig. 7-15.
Fig. 7-15
① Hang a pothook on the body firmly (rear side).
Put the seat frame carrier on the ② two pothooks (front side).
Note: Confirm the fastness of the seat.
