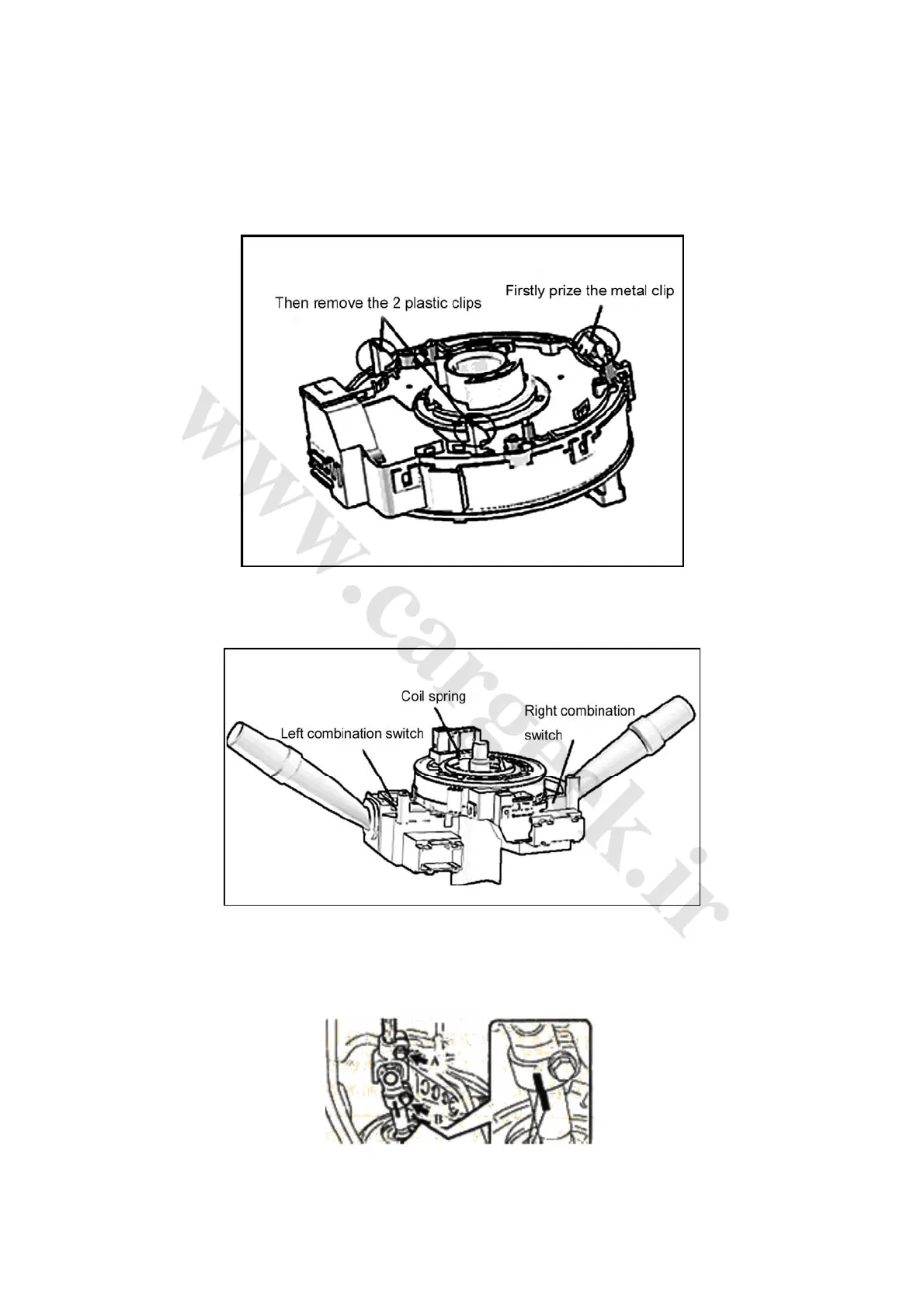

10) Locate the ignition switch at position ACC, and dismantle the coil spring assembly. Note: The
combination switch is connected to the installation plate by a metal clip and 2 plastic clips. Firstly
prize the metal clip from the installation hole by a screwdriver and then remove the 2 plastic clips.
See structure drawing in Fig. 2-30.
Fig2-30
11) Remove the left combination switch (headlamp dimmer switch assembly), as shown in Fig.
2-31.
Fig. 2-31
12) Remove the right combination switch (wiper switch assembly).
13) Remove the dustproof cap of the steering column.
14) Disconnect No. 2 steering intermediate shaft assembly, as shown in Fig. 2-32.
Fig. 2-32
