Mark the matching place on the slip yoke and intermediate shaft. ①
Loosen the bolt A and B, and then disconnect the intermediate shaft. ②

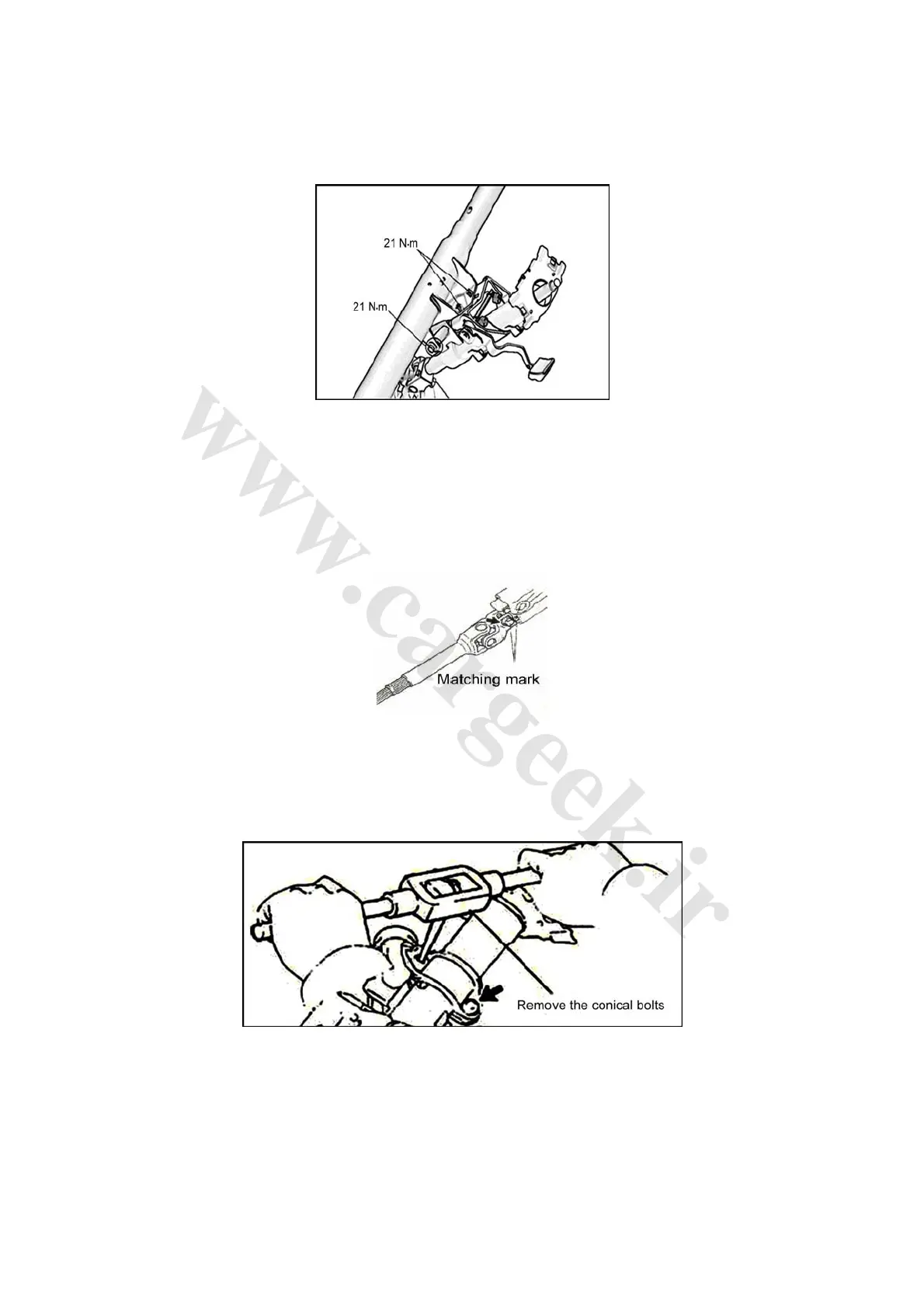

15) Remove the steering column assembly, as shown in Fig. 2-33.
Fig. 2-33
Disconnect the connector and harness clip from the steering column assembly.①
② Remove the 3 bolts and the steering column assembly.
16) Remove No. 2 steering intermediate shaft assembly.
Mark the matching place on the main ① shaft and intermediate shaft, as shown in Fig. 2-34.
Fig. 2-34
Remove th② e bolt and intermediate shaft.
17) Dismantle the switch support from the steering column, as shown in Fig. 2-35.
Fig. 2-35
① Use a center punch to make center marks on the two conical bolts.
② Drill the two bolts by a 3-4mm drill.
Remove 2 bolts and switch support assembly on the steering column by a screwdriver.③
18) Remove the steering column upper clip board.
