brake master pump.
6) Remove the sliding pin of the slave cylinder of front disc brake. Remove the sliding pin from the
support of the disc brake master pump.
7) Remove the dustproof cover of the front disc sliding pin. Remove the 2 dustproof cover from the
support of the slave cylinder of front disc brake. See Fig. 2-52.

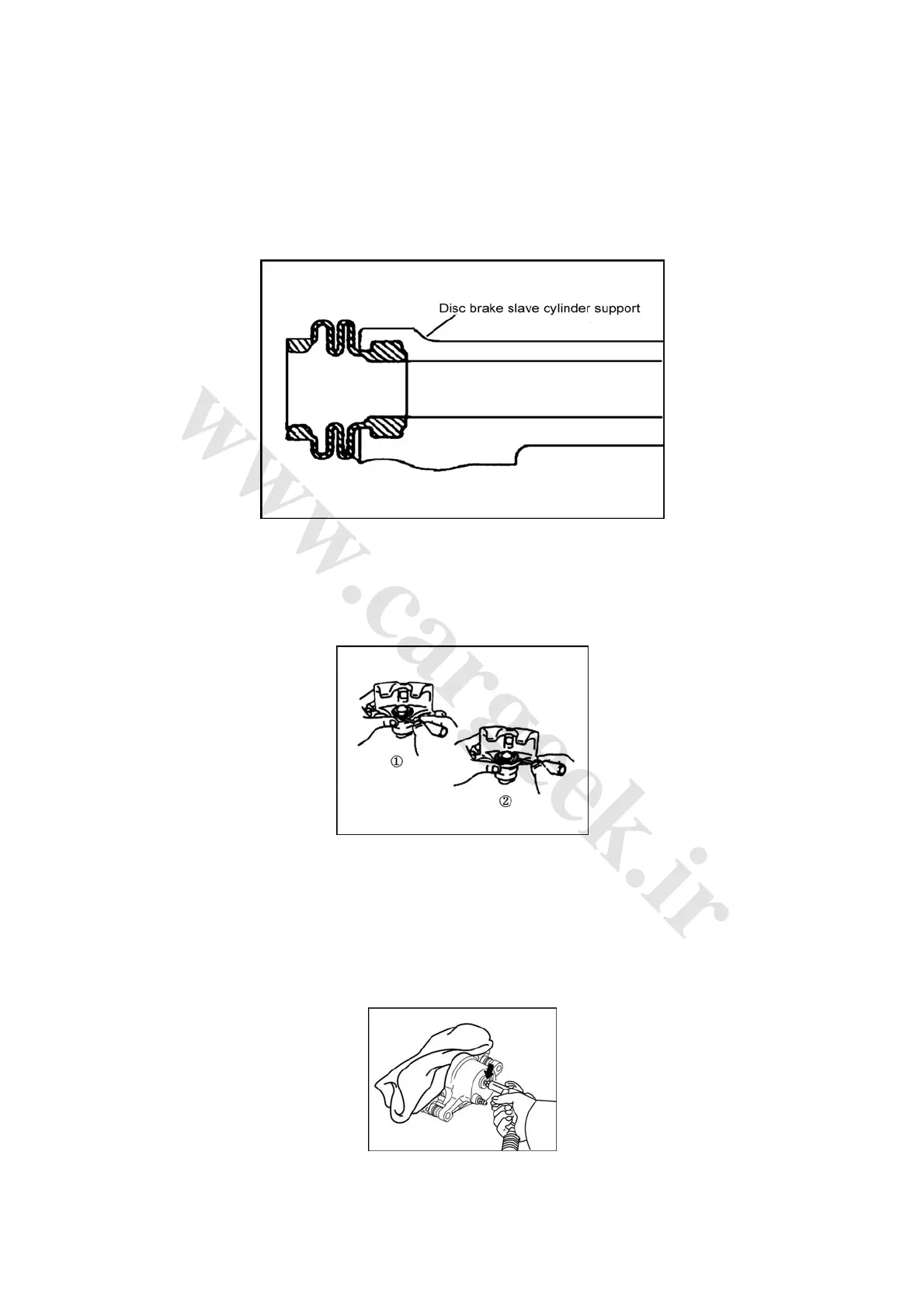

Fig. 2-52
8) Remove the support of slave cylinder of left front disc brake. Take off the support after removing
the 2 bolts.
9) Remove the dustproof cover of the brake slave cylinder. Remove the fixing ring and dustproof
cover by a screwdriver. See Fig. 2-53.
Fig. 2-53
Note: Do not splash the brake fluid.
10) Remove the air discharging bolt of the front disc brake gear.
11) Remove the piston in the slave cylinder of front brake.
① Place a cloth or equivalent between the slave cylinder and piston.
Blow out the piston from the slave cylinder by compressed air. See Fig. 2② -54. Note: Do not put
your hand before the piston when blowing the compressed air.
Fig. 2-54
